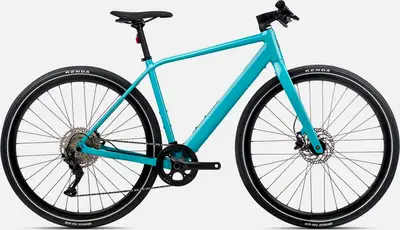

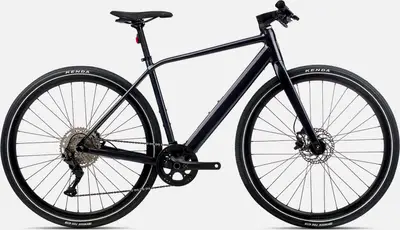

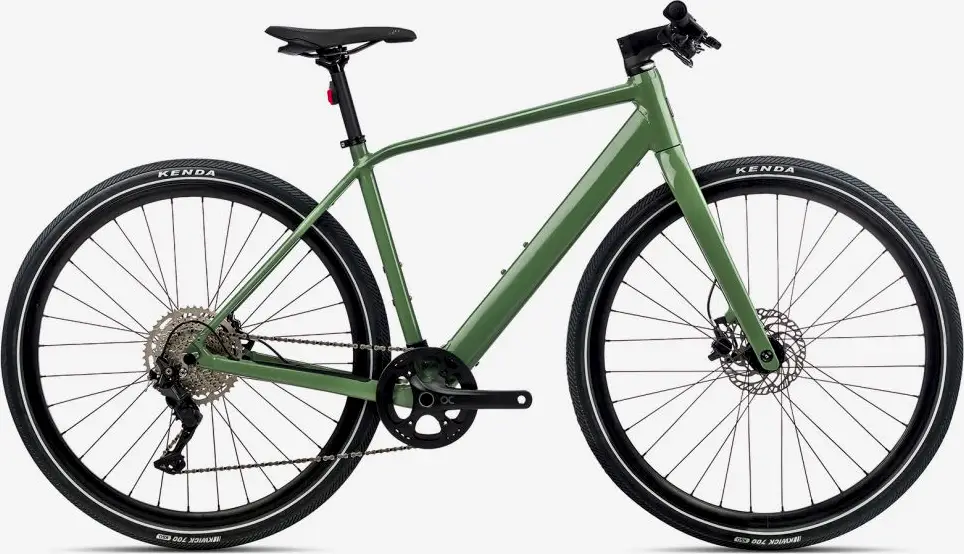

2023 Orbea

VIBE H30 20mph

A 700c aluminum frame commuter e-bike with upper mid-range components and magura hydraulic disc brakes.

Manufacturer Price

$3,199
FrameAluminum
SuspensionRigid
ForkCarbon
Wheels700c Aluminum
Drivetrain1 × 10
GroupsetDeore
MotorMAHLE hub-drive
BatteryMAHLE 248Wh
BrakesMagura Hydraulic Disc
View on orbea.comLearn about Orbea
Add to Comparison
Shop with an Expert at Upway
Where to Buy
Similar Bikes
Top Comparison

View more similar bikes →

Insights
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

33 mph

VIBE H30 20mph

31 mph

Similar Bikes

Highest gear

(descending)

Spec Level

Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

Sizing
SM

4'11" – 5'6"

MD

5'4" – 6'0"

LG

5'10" – 6'6"

XL

6'4" – 6'9"

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Geometry
Specs
Build
Frame

Orbea Vibe Top Bar Hydro 6061 Hydroform Aluminum 2021, ICR cable routing, Forged BB, 135x9 QR, Flat Mount disc, 700x45 maximun tire, 1" 1/2 semi head set, 41x86,5 Pressfit BB, carrier and fenders compatible

BB Standard: BB86/BB92, 86mm, Press Fit

Colors: Metallic Night Black (Gloss); Blue (Gloss); Metallic Dark Red (Gloss); Urban Green (Gloss)

Fork

Orbea Vibe carbon fork, full carbon, 1-1/5, 700x45 maximun tire, flat mount disc mount, Thrue Axle12x100mm, Long mudguards compatible.

Bottom Bracket

BB86/BB92, 86mm, press-fit

Headset

Acros Alloy 1-1/2" Internal Cable Routing

Stem

Alloy forged, -6º, ICR

Handlebar

Alloy,31.8mm, Rise 12mm, 700mm

Saddle

Selle Royal Lift 1215 URN 278x145mm

Seatpost

Alloy, 27.2mm, Setback 0, for integrated light

Type: Rigid

Pedals

VP-537 Black

Groupset
Rear Derailleur

Shimano Deore M5120 SGS Shadow Plus

Crank

Forged alloy, 42t, w/Chainguard

Shifters

Shimano Deore M4100

Cassette

Shimano CS-M4100 11-46t 10-Speed

Chain

KMC X10

Brakes

Magura MT30 Hydraulic Disc Easy Route Connection

Type: Magura Hydraulic Disc

Wheels
Rims

Alloy, Tubeless, 700c, 21c, 32H

Tires

Kenda K1052 700x45C Reflective type+puncture protection

Electric Components
Motor

Mahle motor hub X35 Plus

Battery

Mahle 36V/6.9A 248Wh ANT+

Remote

Mahle iWoc TRIO

Charger

Mahle X35

Accessories
Lights

Lezyne FENDER STVZO seatpost mounting 11 lumens

Bell

Knog OI Classic

Rider Notes
