2023 Orbea

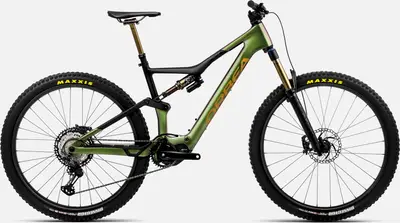

RISE M-TEAM

A 29″ carbon frame full suspension trail e-bike with high-end components.

MSRP£9,299 (about $11,775)
FrameCarbon
SuspensionFull, 140 / 150mm
ForkFox Factory Float 36
ShockFox Float X Factory
Wheels29″ Carbon
Drivetrain1 × 12 Electronic
GroupsetUltegra Di2, e*thirteen
MotorShimano mid-drive
Battery360Wh
BrakesHydraulic Disc
SeatpostDropper
View on orbea.comLearn about Orbea
Where to Buy
Similar Bikes

For This Bike

Accessories
Top Comparison
Insights
Ride Feel

Based on frame geometry and build specs.

Terrain
easyextreme
Handling
nimblestable
RISE M-TEAM
Other Trail bikes
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

28 mph

RISE M-TEAM

26 mph

Similar Bikes

Highest gear

(descending)

Spec Level

Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

Sizing
SM

4'11" – 5'5"

MD

5'2" – 5'9"

LG

5'6" – 6'1"

XL

5'10" – 6'6"

Rider Fit Notes
  • 5'11", size LG, Just right
  • 5'10", size LG, Just right
Reviews
Loam Wolf
2023 SL eMTB Roundup: Orbea Rise M-Team Review

Sep 2023

The Orbea Rise M-Team is a lightweight eMTB that does everything you ask of it without many drawbacks. Check out our review here.

Highs
  • Paint

  • Customizations through MyO

  • Neutral and versatile

  • Can be ridden everywhere

  • Planted feel makes it feel safer

Lows
  • Can ride a bit heavier than the weight suggests

  • Not a stealthy motor, easy to tell it’s an eMTB

  • Steepish headtube angle

Read Review

EMTB Forums
First look at the 2023 Orbea Rise M20 and the new motor+app

Jan 2023 · Knut Nes

At first glance, the new carbon Orbea Rise doesn't look new. The frame looks the same and it still comes with a 360 Wh battery. I take a closer look at the bike, a very close look at the motor and a quick glimpse at the app in this video. Check...

Read Review

Bikerumor
2023 Orbea Rise 16kg eBike debuts 12s Shimano Di2 XT

Dec 2022

The 2023 Orbea Rise continues to define the lightweight eBike category with a 15.94 kg 140mm travel eMTB rocking the Shimano EP801 RS Motor

Read Review

BikeRadar
The 2023 Orbea Rise aims to reset the benchmark for lightweight eMTBs

Dec 2022 · Luke Marshall

Featuring Shimano’s latest motors and neater looks, the Rise returns lighter than ever with more battery options

Read Review

Electric Bike Review
Orbea Rise H30 Review

May 2022

Price: $5699.00 | Model Year: 2022 | The entry model in the Orbea Rise line of light weight full suspension electric trail bikes. Featuring the Shimano EP8-RS Rider Synergy mid-drive motor that's custom tuned for efficiency, offering 60nm of peak torque and 250 watts nominal output. Available in four frame sizes, three color choices, and many hardware upgrade paths using MyO configuration ordering.

Observations
  • The entry model in the Orbea Rise line of light weight full suspension electric trail bikes. Featuring the Shimano EP8-RS Rider Synergy mid-drive motor that's custom tuned for efficiency, offering 60nm of peak torque and 250 watts nominal output. Available in four frame sizes, three color choices, and many hardware upgrade paths using MyO configuration ordering.

  • Fully integrated battery pack utilizes 21700 battery cells from Panasonic that offer high energy density, reduced weight, and more charge cycles. Optional range extender battery is shaped like a water bottle for easy mounting and use. Boost hub spacing with 15mm and 12mm thru-axles offer improved stiffness. Stock 29er wheels can switch or mix with 650b and plus sized tires.

  • Dual piston 180mm hydraulic disc brakes from Shimano. 12-speed Shimano SLX drivetrain with wide 10-51 tooth cassette. Marzocchi suspension fork and Fox rear suspension offer 140mm travel with compression and rebound adjust. 40mm dropper seat post, fast 4 amp battery charger, highly adjustable Shimano SC-E7000 display panel and smartphone app.

  • Heavier than the M series carbon fiber frames, in part because the H series comes with a higher capacity battery pack (540wh vs. 360wh). Charging port is directly in the path of the left crank arm, the power button is low on the frame, the menu change button is on the Shimano display vs. the easy to reach button pad. Main battery is not easily removed which adds weight, can make charging more difficult, may limit travel and and subject the battery to varied temperatures.

Read Review

E-Mountainbike Magazine
Orbea Rise M-Team in review – In our big 2022 eMTB group test

Mar 2022 · Rudolf Fischer

With its small 360 Wh battery and torque-limited Shimano EP8 motor, the Orbea Rise adopts a unique concept, falling right between the Light eMTB and all-round eMTB categories. But is this unique concept enough to secure victory in our big eMTB group test? We built our very own Rise M-Team test bike using Orbea’s MyO configurator and pitted the electric Spaniard against 12 of the hottest eMTB of the season.

Highs
  • The perfect all-rounder for all trails

  • Extremely wide range of applications

  • Near-perfect spec

  • Modular battery concept

Lows
  • Rear brake rotor is too small

  • Untidy cockpit

Read Review

Jeff Kendall-Weed
Orbea Rise: Initial Ride(s) Review!

Feb 2022

Riding and reviewing the Orbea Rise eMTB with Jeff Kendall-Weed.

Read Review

Pinkbike
First Look: 2022 Orbea Rise Hydro - More Range at a Lower Cost

Dec 2021 · Seb Stott

The new aluminum Rise has a bigger battery and a lower price than its carbon counterpart.

Read Review

Geometry
99 Spokes on YouTube99 Spokes on YouTube
Specs
Build
Frame

Orbea Rise Evo OMR 2023, 140mm travel, 29" wheels, Concentric Boost 12x148

ColorsCarbon Raw-Shark Grey (Matt); Chameleon Goblin Green (Gloss)-Black (Matt)

Fork

Fox 36 Float Factory 150 Grip2 QR15x110 Kashima

Travel150mm

Spring TypeAir

Shock

Fox FLOAT X Factory 2-Position Evol LV Kashima custom tune 210x55mm

Travel140mm

Spring TypeAir

Headset

Alloy 1-1/2", Black Oxidated Bearing

Stem

OC Mountain Control MC10 Alu SL, 0º

Handlebar

OC Mountain Control MC10 Carbon, Rise 20, Width 800

Saddle

Fizik Taiga Kium rail

Seatpost

Fox Transfer Factory Kashima Dropper 31.6

TypeDropper

Groupset
Rear Derailleur

Shimano XT Di2 M8150 12s SGS Shadow Plus

Crank

e*thirteen e*spec Direct Mount 32T Boost

Shifters

Shimnano M8150

Cassette

Shimano CS-M8100 10-51t 12-Speed

Chain

Shimano M8100

Chain Guide

Orbea Rise chainguide

Brakes

Shimano XT M8120 Hydraulic Disc

TypeHydraulic Disc

Wheels
Rims

OQUO Mountain Control MC32LTD Carbon

Tires

Maxxis Dissector 2.40" 120 TPI 3CMaxxTerra Exo+ TLR

Electric Components
Motor

Shimano EP801-RS

Battery

Orbea Internal 360Wh (Optional 540Wh)

Remote

EN600-L

Display

N/A

Charger

Orbea 2.Generation eBike Smart charger 42V/2-4A

Rider Notes
