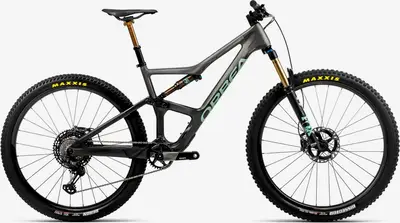

2023 Orbea
OCCAM M-LTD
A 29″ carbon frame full suspension trail bike with ultra high-end components.
Compare the full range
Manufacturer Price
$9,499| Frame | Carbon |
|---|---|
| Suspension | Full, 140mm front |
| Fork | Fox Factory Float 34 |
| Shock | Fox Float DPS Factory |
| Wheels | 29″ Carbon |
| Drivetrain | 1 × 12 |
| Groupset | XTR, Race Face |
| Brakes | Hydraulic Disc |
| Seatpost | Dropper |
For This Bike
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full OCCAM model range
View Comparison4'11" – 5'5"
5'2" – 5'9"
5'6" – 6'1"
5'10" – 6'6"
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Jun 2024 · Hannah Dobson
The Orbea Occam SL is the svelte sibling of the Occam SL and LT duo. This Occam SL looks to the fast, light, distance side of trail riding.
Oct 2023 · Nick Clark
A versatile go-anywhere trail bike with capable climbing performance and a penchant for descending
Balanced geometry
Well-specced
Comfortable climber
Small amounts of pedal kickback may frustrate some
Oct 2023
The Orbea Occam comes in two distinct flavors for 2024; a 140/140mm SL, and a 150/160mm LT with innovative QuickFlip Chip
Oct 2023 · Mike Kazimer
There are now two Occams, one with 140mm of travel and a remote lockout, and the other with 150mm of travel.
Apr 2022 · Mountain Jerk marktuttl3
All the pieces come together for one heck of a great ride.
Superb climbing performance
Agile handling
Suspension feel
Efficient suspension design
As versatile as advertised
Would benefit from more robust tires
Oct 2021
First look and mini review of the 2022 Orbea Occam LT!
Mar 2021 · McCoy
After long days in the saddle conquering countless mountains and demanding singletrack lines, our wrecking crew feels that the Occam sits as one of the most ideal trail bikes we’ve...
May 2020 · Robert Johnston
The Orbea Occam is one hell of a bike. Capable on a huge variety of terrain, well put together and well spec'd, the M10 is a true machine for all mountains. Find our complete review and final thoughts of the Orbea Occam here!
| Frame | Orbea Occam OMR. Concentric Boost 12x148 rear axle. Pure Trail geometry. Internal cable routing. Asymmetric design. 29" wheels Colors: Ice Green-Jade Green Carbon View (Gloss); Infinity Green Carbon View (Matt-Gloss) |
|---|---|
| Fork | Fox 34 Float Factory 140 FIT4 3-Pos-Adj QR15x110 Kashima Travel: 140mm Spring Type: Air |
| Shock | Fox Float DPS Factory 3-Position Evol Kashima custom tune 210x50mm |
| Headset | Acros Alloy 1-1/8 - 1-1/2" Integrated |
| Stem | OC Mountain Control MC10 Alu SL, 0º |
| Handlebar | OC Mountain Control MC10 Carbon, Rise 20, Width 800 |
| Saddle | Fizik Antares R1 142mm |
| Seatpost | Fox Transfer SL Factory Kashima Dropper 31.6 Type: Dropper |
| Rear Derailleur | Shimano XTR M9100 SGS Shadow Plus |
|---|---|
| Crank | Race Face ERA 32t |
| Shifters | Shimano XTR M9100 |
| Cassette | Shimano XTR M9100 10-51t 12-Speed |
| Chain | Shimano CN-9100 |
| Chain Guide | Orbea OC chainguide |
| Brakes | Shimano XTR M9120Hydraulic Disc Type: Hydraulic Disc |
| Rims | OQUO Mountain Performance MP30LTD Carbon |
|---|---|
| Tires | Maxxis Rekon 2.40" FB 60 TPI Dual Exo TR |
