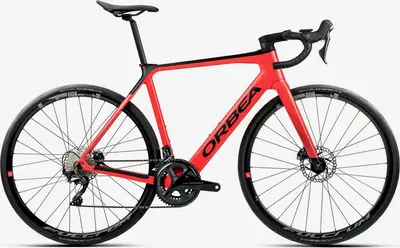

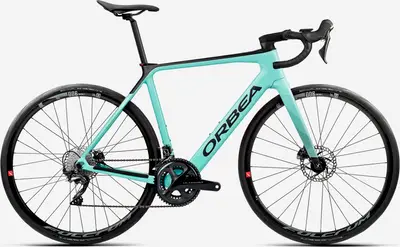

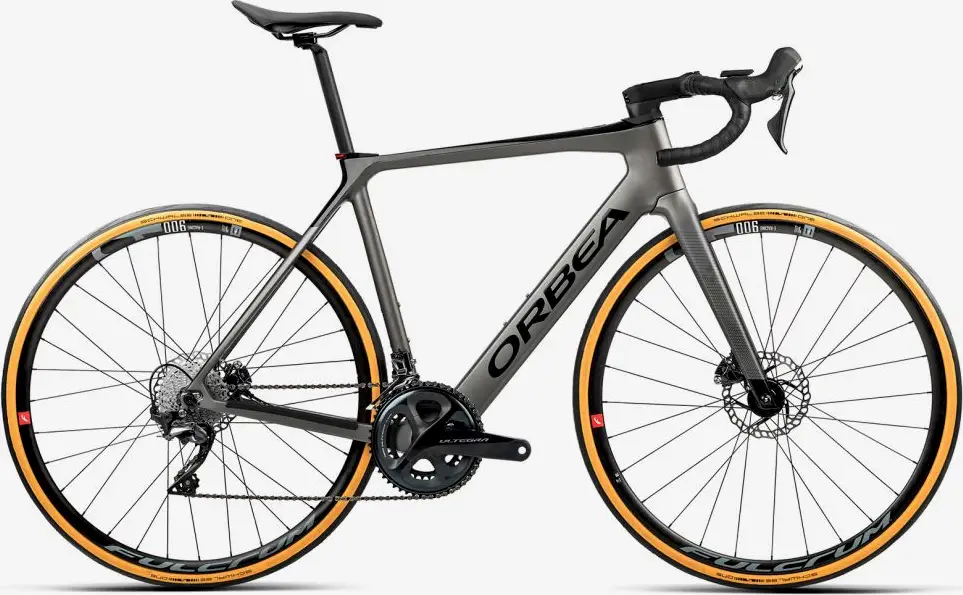

2023 Orbea
GAIN M20 20mph
A carbon frame endurance e-bike with high-end components and hydraulic disc brakes.
Manufacturer Price
$5,599| Frame | Carbon |
|---|---|
| Suspension | Rigid |
| Fork | Carbon |
| Wheels | 700c Aluminum |
| Drivetrain | 2 × 11 |
| Groupset | Ultegra, Shimano |
| Motor | MAHLE hub-drive |
| Battery | MAHLE 248Wh |
| Brakes | Hydraulic Disc |
For This Bike
4'11" – 5'4"
5'2" – 5'8"
5'6" – 6'0"
5'10" – 6'4"
6'2" – 6'7"
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Jan 2023
2023 Orbea Gain carbon ebikes get lighter, more powerful Mahle X20 upgrade, along with other refinements for better road & gravel riding...
Jan 2023 · Warren Rossiter
Can the new Gain ebike live up to Orbea's 'pure road' claims?
Clever system
Lightweight
Impressive range
Superb braking
You probably don’t need the Dura-Ace Di2 version
Jan 2023 · Dave Everett
It's 2023, and Shoddy Dave's temporarily traded in his old road racing ways for Orbea's new e-road bike.
Jan 2023 · Dave Everett
It's 2023, and Shoddy Dave's temporarily traded in his old road racing ways for Orbea's new e-road bike.
May 2021 · RBA Staff
Orbea is staying true to their legacy of designing eye-catching bikes, and here they’ve created another work of art with the Gain M20i e-road bike. Orbea took many details into account when heading to the drawing board on the latest version of their e-road machine.
Dec 2020 · Paul Norman
A great ride and visual control of the motor’s support level from the bars
Well specced
Head unit to control and monitor motor
Battery easy to deplete quickly
No mudguard mounts
| Frame | Orbea Gain Carbon OMR monocoque structure, Integrated Seat clamp with integrated STVZO rear light, ICR cable routing, Forged BB, 135x9 QR, Flat Mount disc, 700x40 maximun tyre, 1" 1/2 semi head set, BB386 EVO. BB Standard: BB86/BB92, Press Fit Colors: Speed Silver (Matt) - Black (Gloss); Coral (Gloss) - Black (Matt); Ice Green (Gloss) - Black (Matt); Carbon Raw Matt |
|---|---|
| Fork | Gain OMR carbon fork, with 1-1/5 carbon steerer, 700x40 maximun tyre, flat mount disc mount, 12x100mm Thrue Axle, with down tube aero integration. |
| Bottom Bracket | BB86/BB92, press-fit |
| Headset | Acros Alloy 1-1/2" Internal Cable Routing |
| Stem | OC RP10 Road Performance ICR, -8º, IFC01 Computer mount interface |
| Handlebar | OC RP20 Road Performance SL, Reach 80, Drop 125, w/Di2 hole |
| Saddle | Fizik Aliante R5 |
| Seatpost | OC2 Carbon 27.2 Offset 20 Type: Rigid |
| Rear Derailleur | Shimano Ultegra R8000 GS |
|---|---|
| Front Derailleur | Shimano Ultegra R8000 |
| Crank | Shimano Ultegra R8000 34x50t |
| Shifters | Shimano ST-8020 |
| Cassette | Shimano Ultegra R8000 11-32t 11-Speed |
| Chain | KMC X11 |
| Brakes | Shimano R8070 Hydraulic Disc Type: Hydraulic Disc |
| Rims | FULCRUM E-Racing 900 |
|---|---|
| Tires | Schwalbe ONE 30-622, 700x30C, Performance Line RaceGuard, TLE, ADDIX |
| Motor | Mahle motor hub X35 Plus 20mph |
|---|---|
| Battery | Mahle 36V/6.9A 248Wh ANT+ |
| Remote | Mahle iWoc ONE |
| Display | Mahle Pulsar One monochrome ANT+ LEV |
| Charger | Mahle X35 |
| Lights | Front: Rear position light, on saddle clamp, COB Led, On/Off, 12 Lumen. STVZO |
|---|
