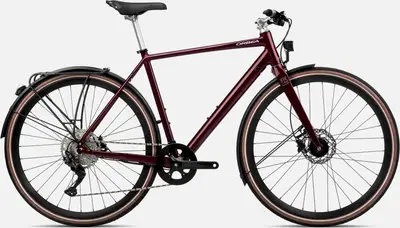

2023 Orbea

CARPE 10

A 700c aluminum frame commuter bike with upper mid-range components and shimano hydraulic disc brakes.
Compare the full range

Manufacturer Price

£999($1,344)
FrameAluminum
SuspensionRigid
ForkCarbon
Wheels700c Aluminum
Drivetrain1 × 10
GroupsetDeore
BrakesShimano Hydraulic Disc
View on orbea.comLearn about Orbea
Add to Comparison
Shop with a Gear Advisor
Where to Buy
Similar Bikes
Top Comparison

View more similar bikes →

Insights
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

33 mph

CARPE 10

31 mph

Similar Bikes

Highest gear

(descending)

Spec Level

Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.

Compare the full CARPE model range

View Comparison
Sizing
XS

4'11" – 5'4"

SM

5'2" – 5'8"

MD

5'6" – 6'0"

LG

5'10" – 6'4"

XL

6'2" – 6'7"

Rider Fit Notes
  • 5'6", size S, Just right
  • 6'3", size XL, Just right
View details
Reviews
BikeRadar
Orbea Carpe 40 review | BikeRadar

Jan 2021 · Warren Rossiter

Fixed-gear-inspired, stripped-down speedster

Highs

  • Fun handling

  • High comfort from great contact points

Lows

  • Flex in the crank arms

  • Sluggish tyres

Read Review

Geometry
Specs
Build
Frame

Orbea Urban Speed, Aluminium 6000, Orbea Tube Shaping, Flat Mount Disc Brake, 135x9 QR, Carrier and Mudguard compatible, max 700x40C, Inner Cable routing,

Tire Clearance: 40c

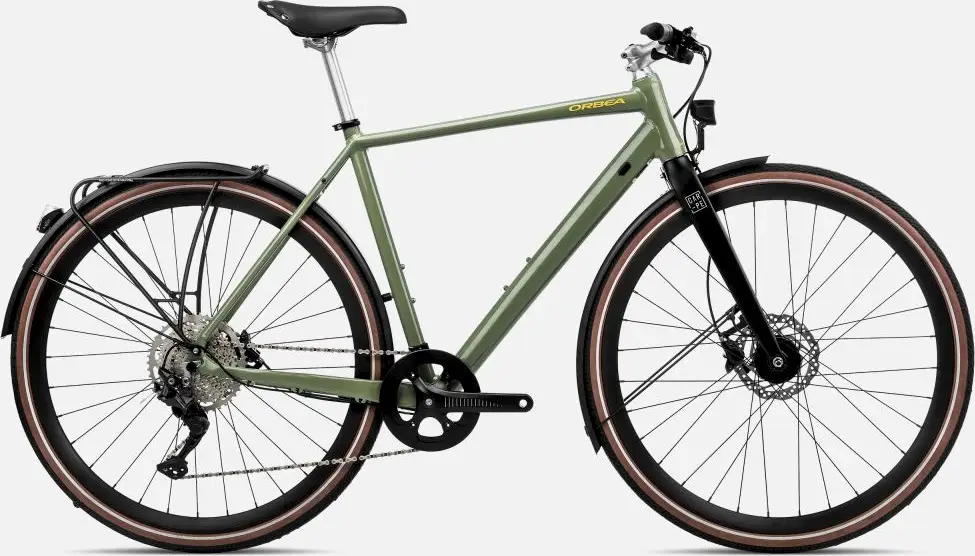

Colors: Urban Green (Gloss)- Black (Matt); Metallic Dark Red (Gloss); Night Black (Gloss)

Fork

Speed 400mm Carbon Flat mount

Headset

1-1/8" Semi-Integrated

Stem

Orbea TDS-C301

Handlebar

Orbea AL320 Riser 680mm

Saddle

Fortune QF-3094

Seatpost

Orbea C255 27.2x300mm

Type: Rigid

Pedals

VP-229 Black with reflectors

Groupset
Rear Derailleur

Shimano Deore M5120 SGS Shadow Plus

Crank

Orbea, Alloy, 42t

Shifters

Shimano Deore M4100

Cassette

Shimano CS-M4100 11-46t 10-Speed

Chain

KMC X10

Brakes

Shimano MT200 Hydraulic Disc

Type: Shimano Hydraulic Disc

Wheels
Rims

Alloy, 700c, 19c, 32H

Tires

Kenda K1067 700x38C Reflective type+puncture protection

Accessories
Lights

Front: Spanninga Kendo XDAS Dinamo, Rear: Spanninga Pixeo

Fenders

SKS EDGE Alloy C46R

Racks

Orbea rear luggage carrier (Max:18Kg)
