2022 Orbea

URRUN 10 20mph

A 29″ aluminum frame hardtail trail e-bike with high-end components.
Compare the full range

Manufacturer Price

$5,499
FrameAluminum
SuspensionHardtail, 120mm
ForkFox Performance Float 34
Wheels29″ Aluminum
Drivetrain1 × 12
GroupsetXT
MotorShimano 85Nm mid-drive
Battery540Wh
BrakesMagura MT5 Hydraulic Disc
SeatpostDropper
View on orbea.comLearn about Orbea
Add to Comparison
Shop with an Expert at Upway
Where to Buy
Similar Bikes
Top Comparison

View more similar bikes →

Insights
Ride Feel

Based on frame geometry and build specs.

Terrain
easyextreme
Handling
nimblestable
URRUN 10 20mph
Other Trail bikes
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

28 mph

URRUN 10 20mph

26 mph

Similar Bikes

Highest gear

(descending)

Sizing
SM

5'1" – 5'7"

MD

5'4" – 5'11"

LG

5'8" – 6'3"

XL

6'0" – 6'7"

Rider Fit Notes
  • 6'2", size LG, Just right
  • 5'6", size SM, Too large
View details
Reviews
BikeRadar
Orbea Urrun 10 review | BikeRadar

Sep 2022 · Mick Kirkman

Spanish brand’s top-tier electric hardtail with lightweight motor and battery

Highs

  • Smooth welded monocoque chassis looks the business

  • Proprietary shimano ep8 rs system delivers smooth power and massive range

Lows

  • Steering and handling feels twitchy and unstable

  • Frame is rock solid and beats you up a bit on rough trails

Read Review

Geometry
Specs
Build
Frame

Orbea Urrun, Shimano Steps, Integrated battery, Hydroformed Alloy 6061 series Internal Cable Routing, Boost 148x12, carrier and kickstand compatible

BB Standard: STEPS, Press Fit

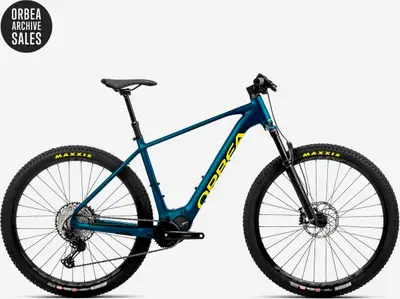

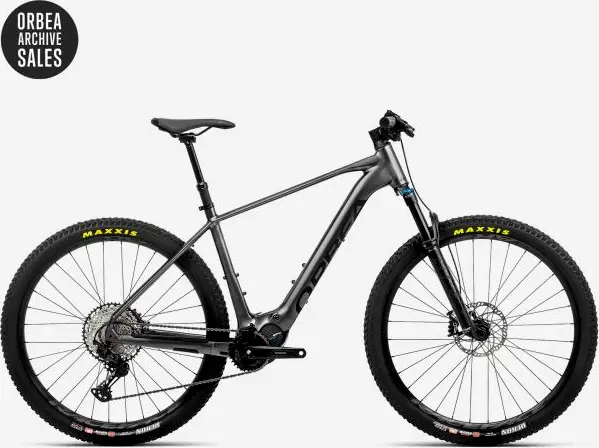

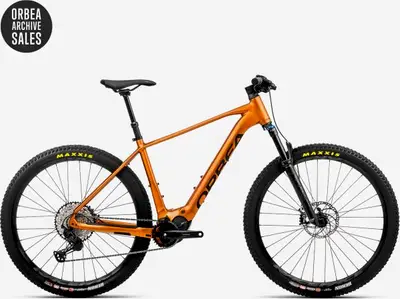

Colors: Borealis Blue (Matt) - Luminous Yellow (Gloss); Glitter Anthracite (Gloss) - Black (Matt); Leo Orange (Gloss) - Black (Matt)

Fork

Fox 34 Float Performance 120 Grip 3-Position QR15x110 E-Bike Optimized

Travel: 120mm

Spring Type: Air

Bottom Bracket

STEPS, press-fit

Headset

FSA 1-1/2" Integrated Aluminium Cup

Stem

Alloy forged, 35mm interface, -6º, ICR

Handlebar

Alloy, 35mm, Rise 20mm, 780mm

Saddle

Selle Royal Vivo 145x269mm

Seatpost

OC Mountain Control MC20, 31.6mm, Dropper

Type: Dropper

Pedals

VP-537 Black

Groupset
Rear Derailleur

Shimano XT M8100 SGS Shadow Plus

Crank

Alloy EP8 32t

Shifters

Shimano XT M8100

Cassette

Shimano CS-M7100 10-51t 12-Speed

Chain

Shimano M6100

Chain Guide

Orbea Chainguide

Brakes

Magura MT5 E-STOP Hydraulic Disc Easy Route Connection

Type: Magura MT5 Hydraulic Disc

Wheels
Rims

Race Face AR 30c Tubeless Ready

Tires

Maxxis Rekon 2.40" 120 TPI 3CMaxxTerra Exo+ TLR

Electric Components
Motor

Shimano EP8-RS

Battery

Orbea Internal 540Wh (Optional 252Wh Range Extender)

Remote

RS

Display

Shimano SC-EM800

Charger

Orbea Smart Charger (42V-4A)
