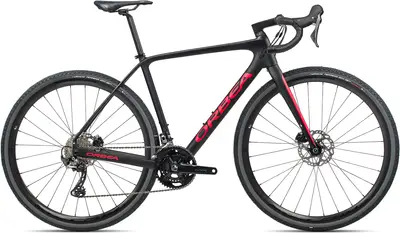

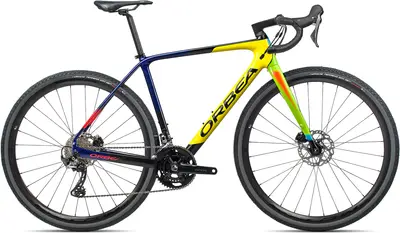

2022 Orbea

TERRA M30

A carbon frame gravel bike with upper mid-range components and shimano grx 400 hydraulic disc brakes.

Manufacturer Price

$3,199
FrameCarbon
SuspensionRigid
ForkCarbon
Wheels700c Aluminum
Drivetrain2 × 11
GroupsetGRX 800, GRX 600
BrakesShimano GRX 400 Hydraulic Disc
View on orbea.comLearn about Orbea
Add to Comparison
Shop with a Gear Advisor
Where to Buy

$3,148

Contender logoContender

Terra M30TEAM

Available: XS, SM, MD, LG, XL, & XXL

Advertisement
Similar Bikes
Top Comparison

View more similar bikes →

Insights
Ride Feel

Based on frame geometry and build specs.

Rider Position
relaxedaggressive
Terrain
smoothrugged
TERRA M30
Other Gravel bikes
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

36 mph

TERRA M30

36 mph

Similar Bikes

Highest gear

(descending)

Sizing
XS

5'0" – 5'6"

SM

5'4" – 5'9"

MD

5'10" – 6'1"

LG

6'2" – 6'4"

XL

6'3" +

Rider Fit Notes
  • 5'11", size MD, Just right
View details
Reviews
BikeRadar
Orbea Terra M21e Team 1X review

Jun 2023 · Warren Rossiter

Fast, fun and comfortable with confident handling, the Terra M21e Team 1X is one of 2023’s star gravel bikes

Highs

  • Compliant, comfortable ride

  • Quick handling

  • Fast and (most importantly) fun

Lows

  • Solid wheels would bear an upgrade

Read Review

Geometry
Specs
Build
Frame

Orbea Terra carbon OMP disc, monocoque construction, tapered 1-1/8" - 1,5", PF30, powermeter compatible, Thru Axle 12mm x 142mm rear, thread M12x P1.5, internal cable routing, EC/DC compatible, SP 27,2mm.

BB Standard: PF30, Press Fit

Colors: Yellow-Black; Anthracite Glitter (Gloss) / Black (Matte); Black-Bright Red (Matte)

Fork

Orbea Terra OMP carbon disc fork, full carbon steerer, tapered 1-1/8" - 1,5", carbon dropouts Thru axle 12mm x 100m, thread M12xP1.5, MMS system

Bottom Bracket

PF30, press-fit

Headset

FSA 1-1/8 - 1-1/2" Integrated Carbon Cup ACB Bearings

Stem

OC1 31.8mm interface -6º

Handlebar

OC GR30 Gravel, Drop 125, Reach 80, Flare 12, w/Di2 hole

Saddle

Prologo Akero AGX STN size 155mm

Seatpost

OC2 Carbon 27.2 Offset 20

Type: Rigid

Groupset
Rear Derailleur

Shimano RD-RX810

Front Derailleur

Shimano GRX RX810

Crank

Shimano GRX RX600 30x46t

Shifters

Shimano ST-RX600

Cassette

Shimano 105 R7000 11-34t 11-Speed

Chain

Shimano HG 601

Brakes

Shimano RX400 Hydraulic disc

Type: Shimano GRX 400 Hydraulic Disc

Wheels
Rims

Orbea wheel: Ready GR with 12mm E-Thru hubset Shimano RS470 28H

Tires

Vittoria Terreno Dry Gravel G2.0 TNT 700x38c

Rider Notes
Riders Also Viewed

First added September 23

Last updated November 5

Not listed for 1,639 days
