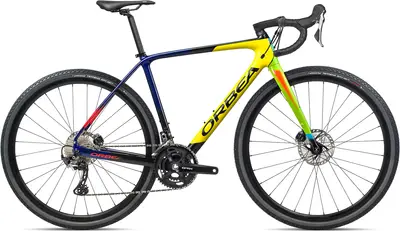

2022 Orbea

TERRA M20

A carbon frame gravel bike with high-end components and shimano grx 800 hydraulic disc brakes.

Manufacturer Price

$3,599
FrameCarbon
SuspensionRigid
ForkCarbon
Wheels700c Aluminum
Drivetrain2 × 11
GroupsetGRX 800
BrakesShimano GRX 800 Hydraulic Disc
View on orbea.comLearn about Orbea
Add to Comparison
Shop with a Gear Advisor
Where to Buy
Similar Bikes
Top Comparison

View more similar bikes →

Insights
Ride Feel

Based on frame geometry and build specs.

Rider Position
relaxedaggressive
Terrain
smoothrugged
TERRA M20
Other Gravel bikes
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

38 mph

TERRA M20

36 mph

Similar Bikes

Highest gear

(descending)

Sizing
XS

5'0" – 5'6"

SM

5'4" – 5'9"

MD

5'10" – 6'1"

LG

6'2" – 6'4"

XL

6'3" +

Rider Fit Notes
  • 5'11", size MD, Just right
View details
Reviews
BikeRadar
Orbea Terra M20-D1x GRX review

Jul 2020 · Warren Rossiter

Bright and bold gravel machine from Spain

Highs

  • Lively ride

  • Capable off- and on-road

  • Well-priced

Lows

  • 1x gearing is very off-road-focused

Read Review

Geometry
Specs
Build
Frame

Orbea Terra carbon OMP disc, monocoque construction, tapered 1-1/8" - 1,5", PF30, powermeter compatible, Thru Axle 12mm x 142mm rear, thread M12x P1.5, internal cable routing, EC/DC compatible, SP 27,2mm.

BB Standard: PF30, Press Fit

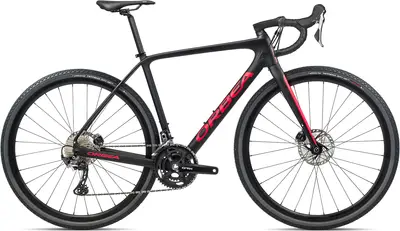

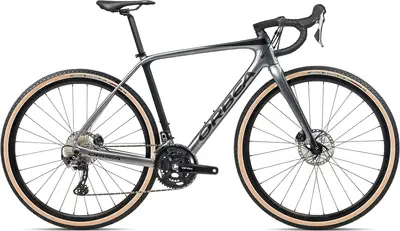

Colors: Yellow-Black; Anthracite Glitter (Gloss) / Black (Matte); Black-Bright Red (Matte)

Fork

Orbea Terra OMP carbon disc fork, full carbon steerer, tapered 1-1/8" - 1,5", carbon dropouts Thru axle 12mm x 100m, thread M12xP1.5, MMS system

Bottom Bracket

PF30, press-fit

Headset

FSA 1-1/8 - 1-1/2" Integrated Carbon Cup ACB Bearings

Stem

OC2 Road -8º

Handlebar

OC1 All Road, reach 80mm, drop 125mm, flare 12º

Saddle

Prologo Akero AGX STN size 155mm

Seatpost

OC2 Carbon 27.2 Offset 20

Type: Rigid

Groupset
Rear Derailleur

Shimano RD-RX810

Front Derailleur

Shimano GRX RX810

Crank

Shimano GRX RX810 31x48t

Shifters

Shimano ST-RX810

Cassette

Shimano Ultegra HG800 11-34t 11-Speed

Chain

KMC X11-EL

Brakes

Shimano RX810 Hydraulic disc

Type: Shimano GRX 800 Hydraulic Disc

Wheels
Rims

Orbea wheel: Ready GR with 12mm E-Thru hubset Shimano RS470 28H

Tires

Vittoria Terreno Dry Gravel G2.0 TNT 700x38c

Rider Notes
Riders Also Viewed

First added September 23

Last updated September 23

Not listed for 1,682 days
