2022 Orbea

TERRA H40

An aluminum frame gravel bike with mid-range components and shimano grx 400 hydraulic disc brakes.

Manufacturer Price

$2,499
FrameAluminum
SuspensionRigid
ForkCarbon
Wheels700c Aluminum
Drivetrain2 × 10
GroupsetGRX 600, GRX 400
BrakesShimano GRX 400 Hydraulic Disc
View on orbea.comLearn about Orbea
Add to Comparison
Shop with a Gear Advisor
Where to Buy

$2,098

Contender logoContender

Terra H40

Available: XS, SM, & XL

$2,098

Contender logoContender

Terra H45 1X

Available: XS, SM, MD, XL, & XXL

Advertisement
Similar Bikes
Top Comparison

View more similar bikes →

Insights
Ride Feel

Based on frame geometry and build specs.

Rider Position
relaxedaggressive
Terrain
smoothrugged
TERRA H40
Other Gravel bikes
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

36 mph

TERRA H40

36 mph

Similar Bikes

Highest gear

(descending)

Sizing
XS

5'1" – 5'7"

SM

5'4" – 5'9"

MD

5'7" – 6'0"

LG

5'10" – 6'2"

XL

6'0" – 6'4"

XXL

6'2" – 6'10"

Rider Fit Notes
  • 6'1", size LG, Just right
View details
Reviews
BikeRadar
Orbea Terra M21e Team 1X review

Jun 2023 · Warren Rossiter

Fast, fun and comfortable with confident handling, the Terra M21e Team 1X is one of 2023’s star gravel bikes

Highs

  • Compliant, comfortable ride

  • Quick handling

  • Fast and (most importantly) fun

Lows

  • Solid wheels would bear an upgrade

Read Review

Geometry
Specs
Build
Frame

Orbea Terra Hydro disc, hydroformed triple butted aluminium, HS 1,5", PF, Thru Axle 12mm x 142mm rear, thread M12x2 P1, DT internal cable routing, 27,2mm seat tube, MMS system

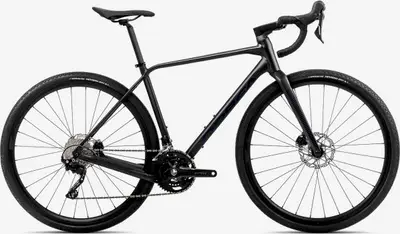

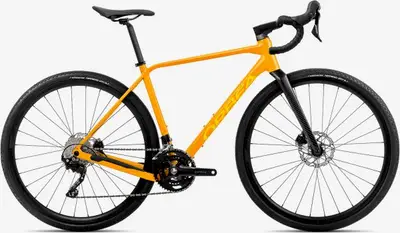

Colors: Metallic Copper Matt; Metallic Night Black (Matt-Gloss); Mango (Gloss)

Fork

Orbea Terra ICR, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12x2 P1

Headset

FSA 1-1/2" Integrated Aluminium Cup

Stem

OC Road Performance RP21, -6º

Handlebar

OC Gravel GR30-R, Rise 15, Reach 70, Drop 125

Saddle

Fizik Aliante R5

Seatpost

Carbon, 27.2mm, Setback 20

Type: Rigid

Groupset
Rear Derailleur

Shimano RD-RX400

Front Derailleur

Shimano GRX RX400

Crank

Shimano GRX RX600-10 30x46t

Shifters

Shimano ST-RX400

Cassette

Shimano Tiagra HG-500 11-34t 10-Speed

Chain

KMC X10

Brakes

Shimano RX400 Hydraulic Disc

Type: Shimano GRX 400 Hydraulic Disc

Wheels
Rims

Alloy, Tubeless, 700c, 21c

Tires

Vittoria Terreno Dry Gravel 700x38c
