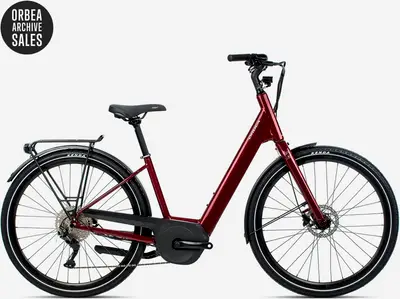

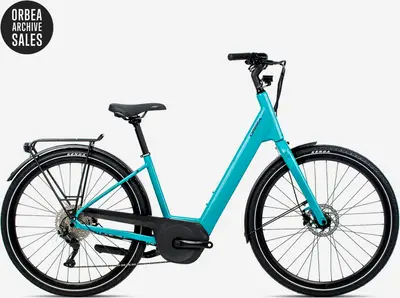

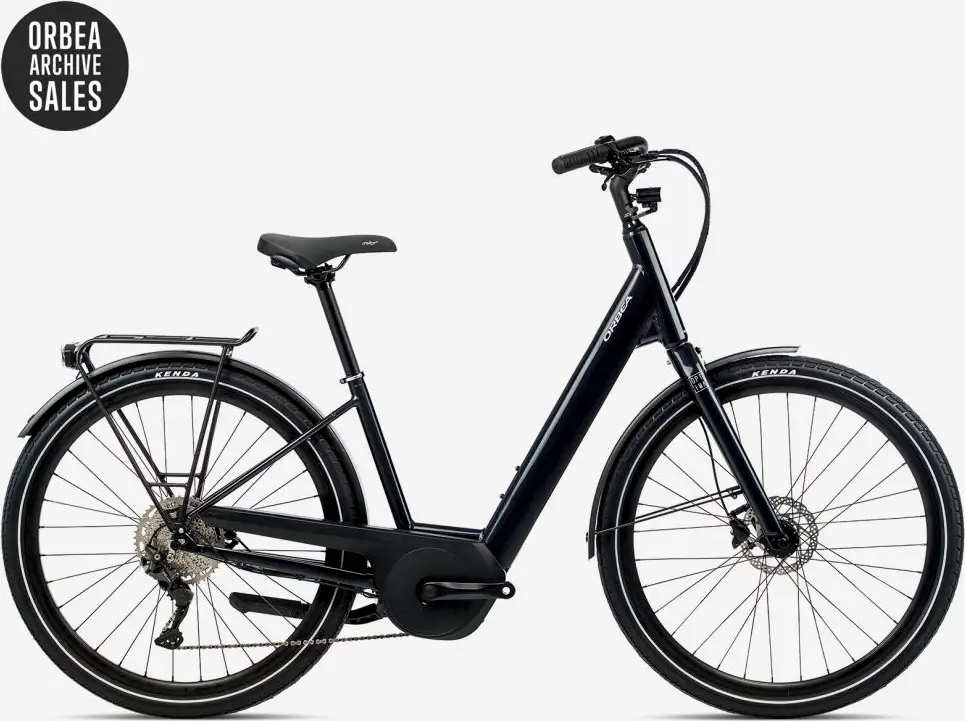

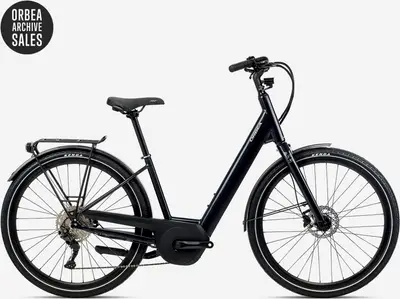

Today’s Deals2022 Orbea
OPTIMA E40
A 700c aluminum frame commuter e-bike with upper mid-range components and shimano hydraulic disc brakes.
Compare the full range
Manufacturer Price
£2,299($3,083)| Frame | Aluminum |
|---|---|
| Suspension | Rigid |
| Fork | Aluminum |
| Wheels | 700c Aluminum |
| Drivetrain | 1 × 10 |
| Groupset | Deore |
| Motor | MAHLE hub-drive |
| Battery | MAHLE 248Wh |
| Brakes | Shimano Hydraulic Disc |
4'11" – 5'6"
5'4" – 6'0"
5'10" – 6'7"
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
| Frame | Orbea Optima Hydroformed Alloy, Ebikemotion X35 internal battery Colors: Metallic Night Black (Gloss); Metallic Dark Red (Gloss); Blue (Gloss) |
|---|---|
| Fork | Optima 400mm Alloy Post mount |
| Headset | VP-Z104PD 1-1/8" Semi-Cartridge |
| Stem | Orbea TDS-D617 |
| Handlebar | Orbea City Riser Alu 640mm |
| Saddle | Selle Royal Milo Plus DR |
| Seatpost | Alloy 31.6x400mm Offset 0 Type: Rigid |
| Pedals | VP-857 Black |
| Rear Derailleur | Shimano Deore M5120 SGS Shadow Plus |
|---|---|
| Crank | Orbea Alloy 42t |
| Shifters | Shimano Deore M4100 |
| Cassette | Shimano CS-M4100 11-46t 10-Speed |
| Chain | KMC X10 |
| Chain Guide | Sunon A017 |
| Brakes | Shimano MT200 Hydraulic Disc Type: Shimano Hydraulic Disc |
| Rims | Ready GR 29-700 C |
|---|---|
| Tires | Kenda 1172 700x50c |
| Motor | Mahle motor hub X35 Plus 25kmh |
|---|---|
| Battery | Mahle 36V/6.9A 248Wh ANT+ |
| Remote | Mahle iWoc TRIO |
| Display | OC monochrome ANT+ LEV |
| Charger | Mahle X35 |
| Lights | Front: Lezyne Ebike Power STVZO Pro E115 inverted position 310 lumens, Rear: Joss Spanninga Lineo XDS Dinamo |
|---|---|
| Fenders | SKS EDGE Alloy C56R |
| Racks | Orbea Optima hidden stays |
