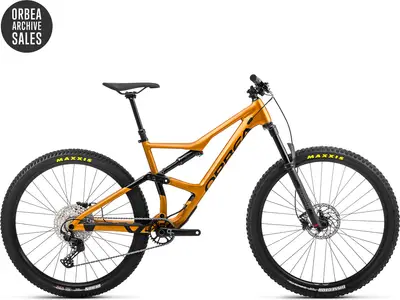

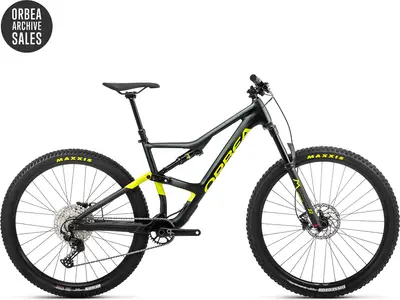

2022 Orbea
OCCAM H30
A 29″ aluminum frame full suspension trail bike with upper mid-range components.
Compare the full range
Manufacturer Price
$3,299| Frame | Aluminum |
|---|---|
| Suspension | Full, 140mm front |
| Fork | Marzocchi Bomber Z2 |
| Shock | Fox Float DPS Performance |
| Wheels | 29″ Aluminum |
| Drivetrain | 1 × 12 |
| Groupset | Deore |
| Brakes | Hydraulic Disc |
| Seatpost | Dropper |
For This Bike
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full OCCAM model range
View Comparison4'11" – 5'5"
5'2" – 5'9"
5'6" – 6'1"
5'10" – 6'6"
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Oct 2023 · Nick Clark
A versatile go-anywhere trail bike with capable climbing performance and a penchant for descending
Balanced geometry
Well-specced
Comfortable climber
Small amounts of pedal kickback may frustrate some
Jan 2023 · Barney Marsh
Orbea Occam M10 LT - an Occam, but more so. It’s a long-legged trail bike with a focus that will chime with what many people are looking for.
Apr 2022 · Mountain Jerk marktuttl3
All the pieces come together for one heck of a great ride.
Superb climbing performance
Agile handling
Suspension feel
Efficient suspension design
As versatile as advertised
Would benefit from more robust tires
Oct 2021
First look and mini review of the 2022 Orbea Occam LT!
Sep 2021 · Peter Walker
Two is better than one. Orbea have unveiled two brand-new bikes in just one week and two versions of the new 2022 Occam. Spanish manufacturer Orbea is on a roll, presenting yet another novelty with the updated version of their popular trail rocket, the Occam. The 2022 model will be available in two versions, the […]
Intuitive and agile handling
Individual design through the MyO configurator
Excellent integration of the mini tool
Long seat tube restricts freedom of movement and choice of sizes
Sep 2021 · Seb Stott
The new 150mm Occam LT is for when the 160mm Rallon is too much, and the regular 140mm Occam isn't enough.
Mar 2021 · McCoy
After long days in the saddle conquering countless mountains and demanding singletrack lines, our wrecking crew feels that the Occam sits as one of the most ideal trail bikes we’ve...
May 2020 · Robert Johnston
The Orbea Occam is one hell of a bike. Capable on a huge variety of terrain, well put together and well spec'd, the M10 is a true machine for all mountains. Find our complete review and final thoughts of the Orbea Occam here!
| Frame | Orbea Occam Hydro High Polished Triple Butted. Concentric Boost 12x148 rear axle. Pure Trail geometry. Internal cable routing. Asymmetric design. 29" wheels Colors: Glitter Anthracite-Metallic Red (Gloss); Metallic Dark Green-Lime Green (Matt); Leo Orange-Black (Gloss) |
|---|---|
| Fork | Marzocchi Bomber Z2 140 QR15x110 Travel: 140mm Spring Type: Air |
| Shock | Fox Float DPS Performance 3-Position Evol custom tune 210x50mm Spring Type: Air |
| Headset | FSA 1-1/8 - 1-1/2" Integrated |
| Stem | Alloy 3D forged, 35mm interface, -7º |
| Handlebar | Alloy, 35mm, Rise 12mm, 780mm |
| Saddle | Selle Royal 2058 DRN |
| Seatpost | OC Mountain Control MC20, 31.6mm, Dropper Type: Dropper |
| Rear Derailleur | Shimano Deore M6100 SGS Shadow Plus |
|---|---|
| Crank | Forged alloy, 32t, Boost |
| Shifters | Shimano Deore M6100 |
| Cassette | Shimano CS-M6100 10-51t 12-Speed |
| Chain | Shimano M6100 |
| Brakes | Shimano MT201 Hydraulic Disc Type: Hydraulic Disc |
| Rims | Alloy, Tubeless, 29", 29c, 32H |
|---|---|
| Tires | Maxxis Rekon 2.40" FB 60 TPI Dual Exo TR |
