2022 Orbea
MX 20 XC

A 20″ aluminum frame mountain youth bike with modest components and rim brakes.
Compare the full range

Manufacturer Price

£459($616)

Where to Buy

Similar Bikes

Top Comparison

Insights

Ride Feel

Based on frame geometry and build specs.

Handling

nimblestable

MX 20 XC

Other Mountain Youth bikes

Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

15 mph

MX 20 XC

Highest gear

(descending)

Sizing

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Geometry

Specs

Build

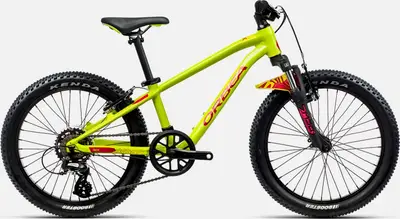

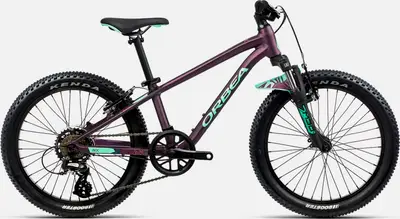

Frame	Orbea MX 20 6061 Aluminum 2021, 135x9 QR, V-Brake + IS Disc Mount, 27,2 Seat Post, Internal Cable Routing, Central kickstand compatible, removable hanger, Fender and Carrier ready. Colors: Indigo Blue (Matt) - Bright Red (Gloss); Lime Green-Watermelon Red (Gloss); Purple (Matt) - Mint (Gloss)
Fork	SR Suntour M3010 40mm V-Brake QR Travel: 40mm Spring Type: Coil
Headset	VP-Z104PD 1-1/8" Semi-Cartridge
Handlebar	Orbea Alu integrated cockpit 540mm
Saddle	DDK D2005 237x141mm
Seatpost	Digit Alloy 27.2x250mm Offset 0 Type: Rigid
Pedals	VP-229 Black with reflectors

Groupset

Rear Derailleur	Shimano Altus M310
Crank	Extra light 36t, 127mm, w/Chainguard
Shifters	Shimano SL-M315
Cassette	Shimano TZ31 14-34t 7-Speed
Chain	KMC Z7 GYBR
Brakes	Junior alloy V-brake Type: Rim
Brake Levers	Junior V brake lever, alloy body and alloy lever, with reach adjustment

Wheels

Rims	Orbea Alloy 20"
Tires	Kenda Booster K1277 20x2.20" 30TPI

Accessories

Fenders	Orbea Custom wide fork

Rider Notes

Riders Also Viewed

First added March 15

Last updated January 22

Not listed for 1,197 days

2022 OrbeaMX 20 XC
