2022 Orbea

KERAM 10

A 27.5″ / 29″ aluminum frame hardtail crosscountry e-bike with upper mid-range components.
Compare the full range

Manufacturer Price

£2,799($3,766)
FrameAluminum
SuspensionHardtail, 100mm
ForkSuntour X1
Wheels27.5″ / 29″ Aluminum
Drivetrain1 × 10
GroupsetDeore
MotorBosch 600W 85Nm mid-drive
BatteryBosch 500Wh
BrakesShimano Hydraulic Disc
View on orbea.comLearn about Orbea
Add to Comparison
Shop with an Expert at Upway
Where to Buy
Similar Bikes
Top Comparison

View more similar bikes →

Insights
Ride Feel

Based on frame geometry and build specs.

Terrain
easyextreme
Handling
nimblestable
KERAM 10
Other Crosscountry bikes
Sizing
SM

4'11" – 5'6"

MD

5'4" – 5'10"

LG

5'8" – 6'2"

XL

6'0" – 6'5"

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Reviews
ebiketips
Orbea Keram Asphalt 20

Jan 2019

Verdict: Well specced city bike with an excellent motor system and good load-carrying ability

Read Review

Geometry
Specs
Build
Frame

Orbea Keram 2019, Hydroformed Alloy 6061, Hide out battery technology, bottle cage and dual battery compatible and hidden kickstand compatible

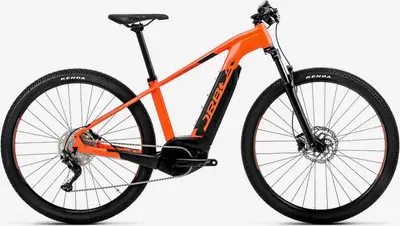

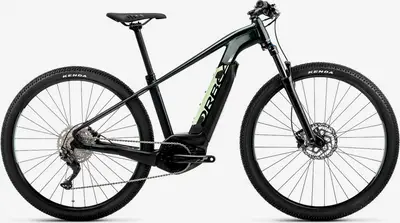

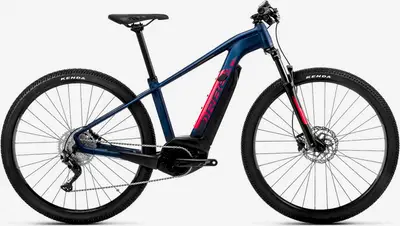

Colors: Black (Matt-Gloss); Navy Blue (Matt) - Bright Red (Gloss); Metallic Dark Green (Gloss)- Lichen Green (Matte); Magma Orange (Gloss) - Black (Matt)

Fork

SR Suntour X1 Coil LO 100mm QR

Travel: 100mm

Spring Type: Coil

Stem

Alloy 31.8mm interface 7º

Handlebar

OC1 Flat 31.8mm 740mm

Saddle

Selle Royal 2077 DRN

Seatpost

Alloy 31.6x400mm Offset 0

Type: Rigid

Pedals

VP-537 Black

Groupset
Rear Derailleur

Shimano Deore M5120 SGS Shadow Plus

Crank

PW EB04-NW32 G4

Shifters

Shimano Deore M4100

Cassette

Shimano CS-M4100 11-46t 10-Speed

Chain

KMC e10 Turbo Silver

Brakes

Shimano MT200 Hydraulic Disc

Type: Shimano Hydraulic Disc

Wheels
Rims

Orbea OC1 29c Tubeless Ready

Tires

Kenda K1153 2.35" 30TPI

Electric Components
Motor

BOSCH Performance CX Cruise (25km/h) BDU450CX

Battery

BOSCH Performance 500Wh

Display

BOSCH Performance Purion

Charger

Compact Charger 2A (100-240V) Worldwide

Accessories
Lock

Abus battery down tube lock
