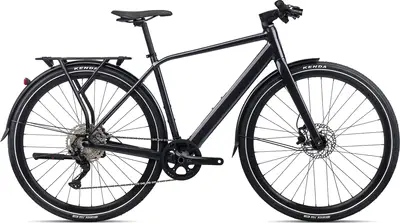

2021 Orbea

VIBE H30 EQ

A 700c aluminum frame commuter e-bike with upper mid-range components and magura hydraulic disc brakes.

Manufacturer Price

£2,499($3,352)
FrameAluminum
SuspensionRigid
ForkCarbon
Wheels700c Aluminum
Drivetrain1 × 10
GroupsetDeore
Motorhub-drive
Battery248Wh
BrakesMagura Hydraulic Disc
View on orbea.comLearn about Orbea
Add to Comparison
Shop with an Expert at Upway
Where to Buy
Similar Bikes
Top Comparison

View more similar bikes →

Insights
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

33 mph

VIBE H30 EQ

31 mph

Similar Bikes

Highest gear

(descending)

Sizing
SM

4'11" – 5'6"

MD

5'4" – 6'0"

LG

5'10" – 6'6"

XL

6'4" – 6'9"

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Geometry
Specs
Build
Frame

Orbea Vibe Top Bar Hydro 6061 Hydroform Aluminum 2021, ICR cable routing, Forged BB, 135x9 QR, Flat Mount disc, 700x45 maximun tire, 1" 1/2 semi head set, 41x86,5 Pressfit BB, carrier and fenders compatible

BB Standard: BB86/BB92, 86mm, Press Fit

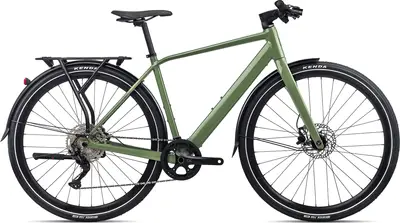

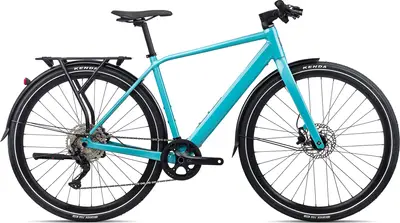

Colors: Night Black (Gloss); Blue (Gloss); Metallic Dark Red (Gloss); Urban Green (Gloss)

Fork

Orbea Vibe carbon fork, full carbon, 1-1/5, 700x45 maximun tire, flat mount disc mount, Thrue Axle12x100mm, Long mudguards compatible.

Bottom Bracket

BB86/BB92, 86mm, press-fit

Headset

Acros Alloy 1-1/2" Internal Cable Routing

Stem

OC1 31.8mm interface -6º

Handlebar

Alloy 31.8mm 12mm Rise 700mm

Saddle

Selle Royal Lift 1215 URN 278x145mm

Seatpost

Alloy 27.2 Offset 20

Type: Rigid

Groupset
Rear Derailleur

Shimano Deore M5120 SGS Shadow Plus

Crank

OC 42t, w/Chainguard

Shifters

Shimano Deore M4100

Cassette

Shimano CS-M4100 11-46t 10-Speed

Chain

KMC X10

Brakes

Magura MT30 Hydraulic Disc Easy Route Connection

Type: Magura Hydraulic Disc

Wheels
Rims

Ready GR

Tires

Kenda K1052 700x45C Reflective type+puncture protection

Electric Components
Motor

Ebikemotion X35 Plus 25kmh

Battery

Ebikemotion 36V/6.9A 248Wh ANT+

Remote

Ebikemotion iWoc TRIO

Charger

Ebikemotion X35

Accessories
Lights

Front: Lezyne Ebike POWER STVZO PRO E115 inverted position with remote 310 lumens, Rear: Lezyne FENDER STVZO

Fenders

CURANA Apollo 55mm

Racks

Orbea Vibe rear luggage carrier (Max:15Kg)

Bell

Knog OI Classic
