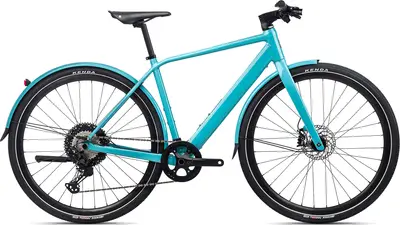

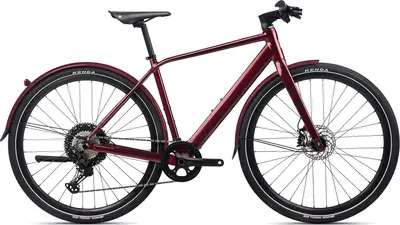

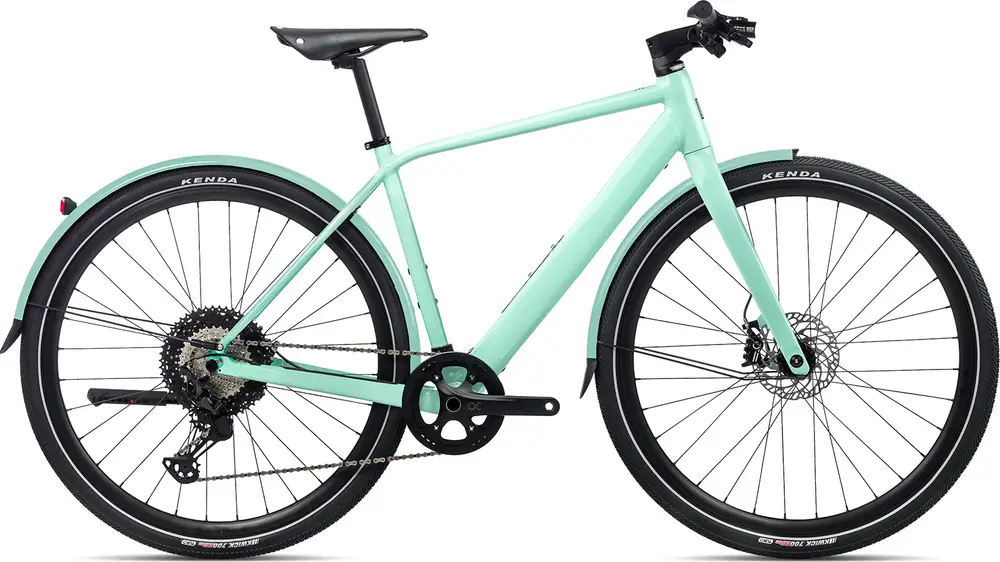

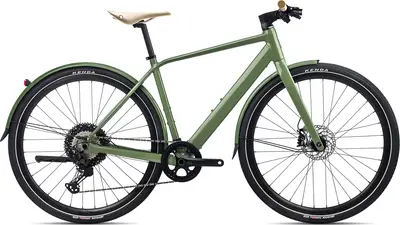

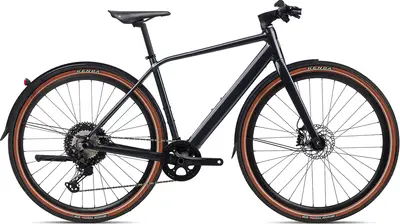

2021 Orbea

VIBE H10 MUD

A 700c aluminum frame commuter e-bike with upper mid-range components and magura mt5 hydraulic disc brakes.

Manufacturer Price

£2,999($4,022)
FrameAluminum
SuspensionRigid
ForkCarbon
Wheels700c Aluminum
Drivetrain1 × 12
GroupsetXT, Deore
Motorhub-drive
Battery248Wh
BrakesMagura MT5 Hydraulic Disc
View on orbea.comLearn about Orbea
Add to Comparison
Shop with an Expert at Upway
Where to Buy
Similar Bikes
Top Comparison

View more similar bikes →

Insights
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

33 mph

VIBE H10 MUD

31 mph

Similar Bikes

Highest gear

(descending)

Sizing
SM

4'11" – 5'6"

MD

5'4" – 6'0"

LG

5'10" – 6'6"

XL

6'4" – 6'9"

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Geometry
Specs
Build
Frame

Orbea Vibe Top Bar Hydro 6061 Hydroform Aluminum 2021, ICR cable routing, Forged BB, 135x9 QR, Flat Mount disc, 700x45 maximun tire, 1" 1/2 semi head set, 41x86,5 Pressfit BB, carrier and fenders compatible

BB Standard: BB86/BB92, 86mm, Press Fit

Colors: Night Black (Gloss); Blue (Gloss); Metallic Dark Red (Gloss); Urban Green (Gloss); Light Green (Gloss)

Fork

Orbea Vibe carbon fork, full carbon, 1-1/5, 700x45 maximun tire, flat mount disc mount, Thrue Axle12x100mm, Long mudguards compatible.

Bottom Bracket

BB86/BB92, 86mm, press-fit

Headset

Acros Alloy 1-1/2" Internal Cable Routing

Stem

OC1 31.8mm interface -6º

Handlebar

Alloy 31.8mm 12mm Rise 700mm

Saddle

Brooks Cambium C15 283x140

Seatpost

Alloy 27.2 Offset 20

Type: Rigid

Grips

Brooks Comfort Cambium 130mm

Groupset
Rear Derailleur

Shimano XT M8100 SGS Shadow Plus

Crank

OC 42t, w/Chainguard

Shifters

Shimano Deore M6100

Cassette

Sun Race CSMZ80 11-51t 12-Speed Metalic E-bike

Chain

KMC X12

Brakes

Magura MT5 E-STOP Hydraulic Disc Easy Route Connection

Type: Magura MT5 Hydraulic Disc

Wheels
Rims

Ready GR

Tires

Kenda K1052 700x45C Reflective type TLR

Electric Components
Motor

Ebikemotion X35 Plus 25kmh

Battery

Ebikemotion 36V/6.9A 248Wh ANT+

Remote

Ebikemotion iWoc TRIO

Charger

Ebikemotion X35

Accessories
Lights

Front: Lezyne Ebike POWER STVZO PRO E115 inverted position with remote 310 lumens, Rear: Lezyne FENDER STVZO

Fenders

CURANA Apollo 55mm

Bell

Knog OI Classic
