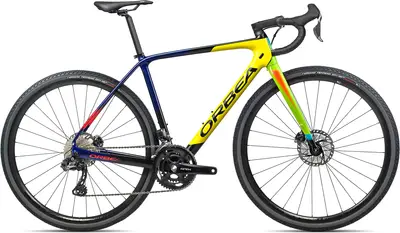

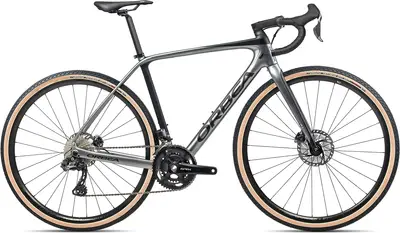

TERRA M20i
A carbon frame gravel bike with high-end components and hydraulic disc brakes.
Compare the full range
Manufacturer Price
$4,899Frame | Carbon |
---|---|
Suspension | Rigid |
Fork | Carbon |
Wheels | 700c Aluminum |
Drivetrain | 2 × 11 Electronic |
Groupset | GRX Di2, GRX 800 |
Brakes | Hydraulic Disc |
For This Bike
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full TERRA model range
View Comparison5'0" – 5'6"
5'4" – 5'9"
5'10" – 6'1"
6'2" – 6'4"
6'3" +
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Jul 2020 · Warren Rossiter
Bright and bold gravel machine from Spain
Lively ride
Capable off- and on-road
Well-priced
1x gearing is very off-road-focused
Nov 2018 · Matthew Page
A superb, customisable all-rounder that rides brilliantly on and off road, and is good value
Customisable paint finish and components
Compliant and comfortable rear end
Extra mounting options for added versatility
Narrow rims
Lack of front end comfort
Non-tubeless ready wheels
Sep 2018 · David Arthur @davearthur
A good choice for covering gravel and road quickly
Frame | Orbea Terra carbon OMP disc, monocoque construction, tapered 1-1/8" - 1,5", PF30, powermeter compatible, Thru Axle 12mm x 142mm rear, thread M12x P1.5, internal cable routing, EC/DC compatible, SP 27,2mm. BB Standard: PF30, Press Fit Colors: Yellow-Black; Anthracite Glitter (Gloss) / Black (Matte); Black-Bright Red (Matte) |
---|---|
Fork | Orbea Terra OMP carbon disc fork, full carbon steerer, tapered 1-1/8" - 1,5", carbon dropouts Thru axle 12mm x 100m, thread M12xP1.5, MMS system |
Bottom Bracket | PF30, press-fit |
Headset | FSA 1-1/8 - 1-1/2" Integrated Carbon Cup ACB Bearings |
Stem | OC2 Road -8º |
Handlebar | OC1 All Road, reach 80mm, drop 125mm, flare 12º |
Saddle | Prologo Akero AGX STN size 155mm |
Seatpost | OC2 Carbon 27.2 Offset 20 Type: Rigid |
Rear Derailleur | Shimano RD-RX815 |
---|---|
Front Derailleur | Shimano FD-RX815 |
Crank | Shimano GRX RX810 31x48t |
Shifters | Shimano ST-RX815 |
Cassette | Shimano Ultegra HG800 11-34t 11-Speed |
Chain | Shimano HG 601 |
Brakes | Shimano BR-RX810 Hydraulic disc Type: Hydraulic Disc |
Rims | FULCRUM Rapid Red 900 DB |
---|---|
Tires | Vittoria Terreno Dry Gravel G2.0 TNT 700x38c |
