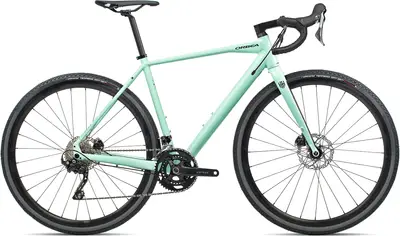

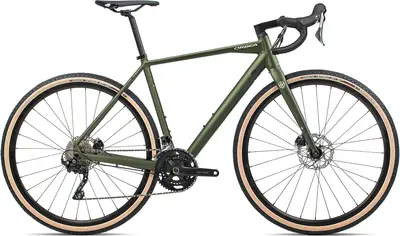

2021 Orbea
TERRA H40
An aluminum frame gravel bike with mid-range components and hydraulic disc brakes.
Compare the full range
| MSRP | $2,099 |
|---|---|
| Frame | Aluminum |
| Suspension | Rigid |
| Fork | Carbon |
| Wheels | 700c Aluminum |
| Drivetrain | 2 × 10 |
| Groupset | GRX 400, GRX 600 |
| Brakes | Hydraulic Disc |
For This Bike
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full TERRA model range
View Comparison5'0" – 5'5"
5'5" – 5'9"
5'10" – 6'1"
6'2" – 6'4"
6'3" +
Jul 2020 · Warren Rossiter
Bright and bold gravel machine from Spain
Lively ride
Capable off- and on-road
Well-priced
1x gearing is very off-road-focused
Nov 2018 · Matthew Page
A superb, customisable all-rounder that rides brilliantly on and off road, and is good value
Customisable paint finish and components
Compliant and comfortable rear end
Extra mounting options for added versatility
Narrow rims
Lack of front end comfort
Non-tubeless ready wheels
Sep 2018 · David Arthur @davearthur
A good choice for covering gravel and road quickly
| Frame | Orbea Terra Hydro disc, hydroformed triple butted aluminium, tapered 1-1/8" - 1,5", BB 68mm – BSC English, Thru Axle 12mm x 142mm rear, thread M12x P1.5, DT internal cable routing, 27,2mm seat tube, MMS system BB Standard: BSA, 68mm, Threaded Colors: Military Green (Matte); Light Green (Gloss); Black (Matte-Gloss) |
|---|---|
| Fork | Orbea Terra OMP carbon disc fork, full carbon steerer, tapered 1-1/8" - 1,5", carbon dropouts Thru axle 12mm x 100m, thread M12xP1.5, MMS system |
| Bottom Bracket | BSA, 68mm, threaded |
| Headset | FSA 1-1/8 - 1-1/2" Integrated Carbon Cup ACB Bearings |
| Stem | OC1 31.8mm interface -6º |
| Handlebar | OC1 All Road, reach 80mm, drop 125mm, flare 12º |
| Saddle | Selle Royal Seta RS |
| Seatpost | OC2 Carbon 27.2 Offset 20 Type: Rigid |
| Rear Derailleur | Shimano RD-RX400 |
|---|---|
| Front Derailleur | Shimano GRX RX400 |
| Crank | Shimano GRX RX600-10 30x46t |
| Shifters | Shimano ST-RX400 |
| Cassette | Shimano Tiagra HG-500 11-34t 10-Speed |
| Chain | KMC X10 |
| Brakes | Shimano RX400 Hydraulic Disc Type: Hydraulic Disc |
| Rims | Orbea wheel: Ready GR with 12mm E-Thru hubset Shimano RS470 28H |
|---|---|
| Tires | Vittoria Terreno Dry Gravel G2.0 TNT 700x38c |
