2021 Orbea

MX 30 27.5

A 27.5″ aluminum frame hardtail crosscountry bike with upper mid-range components.
Compare the full range

Manufacturer Price

£719($964)
FrameAluminum
SuspensionHardtail, 100mm
ForkSuntour XCM
Wheels27.5″ Aluminum
Drivetrain2 × 10
GroupsetDeore
BrakesShimano Hydraulic Disc
View on orbea.comLearn about Orbea
Add to Comparison
Shop with a Gear Advisor
Where to Buy
Similar Bikes
Top Comparison

View more similar bikes →

Insights
Ride Feel

Based on frame geometry and build specs.

Terrain
easyextreme
Handling
nimblestable
MX 30 27.5
Other Crosscountry bikes
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

27 mph

MX 30 27.5

27 mph

Similar Bikes

Highest gear

(descending)

Sizing
SM

5'1" – 5'6"

MD

5'4" – 5'11"

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Geometry
Specs
Build
Frame

Orbea MX Alloy only disc

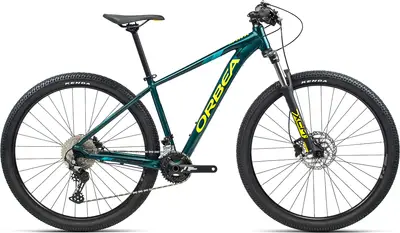

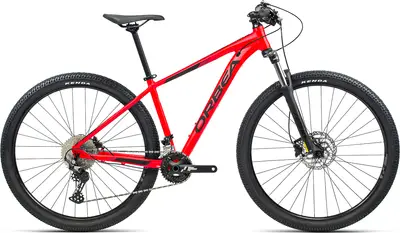

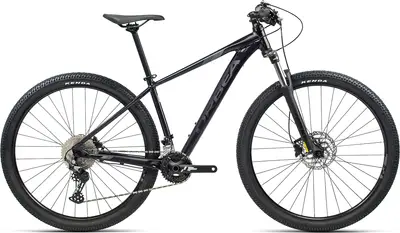

Colors: Blue Bondi- Bright Red (Gloss); Bright Red (Gloss) / Black (Matte); Metallic Black (Gloss) / Grey (Matte); Ocean - Yellow (Gloss)

Fork

SR Suntour XCM RL-Coil 100mm QR

Travel: 100mm

Spring Type: Coil

Headset

VP-Z104PD 1-1/8" Semi-Cartridge

Stem

Alloy 31.8mm interface 7º

Handlebar

Alloy Flat 31.8mm 720mm

Saddle

Selle Royal 2058 DRN

Seatpost

Alloy 27.2 Offset 0

Type: Rigid

Groupset
Rear Derailleur

Shimano Deore M4120 SGS Shadow

Front Derailleur

Shimano Deore M6025 31.8mm

Crank

Alloy forged 26x36t 10S

Shifters

Shimano Deore M4100

Cassette

Shimano CS-M4100 11-42t 10-Speed

Chain

KMC X10

Brakes

Shimano MT200 Hydraulic Disc

Type: Shimano Hydraulic Disc

Wheels
Rims

Orbea Black Rock 23c Disc

Tires

Kenda K1153 2.35" 30TPI
