Today’s Deals2021 Orbea

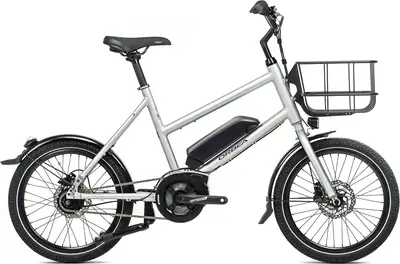

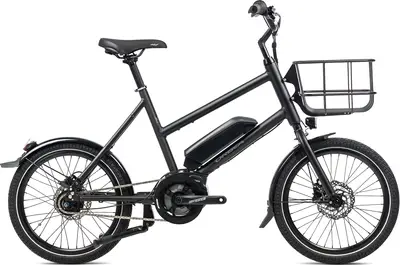

KATU-E 30
A 20″ utility e-bike with modest components and shimano hydraulic disc brakes.
Manufacturer Price
£2,149($2,882)| Suspension | Rigid |
|---|---|
| Wheels | 20″ Aluminum |
| Drivetrain | Internally Geared Hub |
| Groupset | Nexus |
| Motor | Bosch 600W 40Nm mid-drive |
| Battery | Bosch 400Wh |
| Brakes | Shimano Hydraulic Disc |
3'11" +
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Jul 2019
Verdict: Cool, compact urban e-cargo bike with great acceleration, but a few component compromises
| Frame | Orbea Katu 20" BB Standard: Bosch, Press Fit Colors: Etheric Silver (Matte); Magnetic Black (Matte) |
|---|---|
| Fork | Orbea Katu |
| Bottom Bracket | Bosch, press-fit |
| Headset | 1-1/8" Semi-Integrated |
| Stem | Orbea Alu |
| Handlebar | Orbea City Riser Alu 660mm |
| Saddle | Selle Royal Milo Plus DR |
| Seatpost | Alloy 31.6x400mm Offset 0 Type: Rigid |
| Crank | FSA Bosch-IG3 E-bike 44t |
|---|---|
| Shifters | Shimano SL-C6000 Nexus 8-Speed |
| Cassette | Shimano Nexus 18t |
| Chain | KMC Z510HX |
| Chain Guide | FSA Bosch IG3 44-46t |
| Brakes | Shimano MT200 Hydraulic Disc Type: Shimano Hydraulic Disc |
| Rims | Orbea Web Disc |
|---|---|
| Tires | Kenda 841 20x2.25 Reflex |
| Motor | BOSCH Active 25 kmh |
|---|---|
| Battery | BOSCH Performance 400Wh |
| Display | BOSCH Performance Purion |
| Charger | Compact Charger 2A (100-240V) Worldwide |
| Lights | Front: Joss Spanninga Kendo 15 lux, Rear: Spanninga Pixeo |
|---|---|
| Fenders | SKS 20" 60mm |
| Racks | Aluminium Front Basket |
| Lock | Abus battery down tube lock |
First added April 27
Last updated April 27
Not listed for 1,832 days
