Today’s Deals2021 Orbea

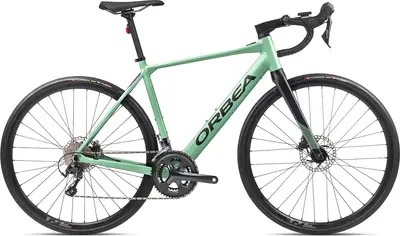

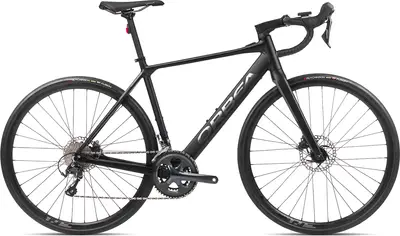

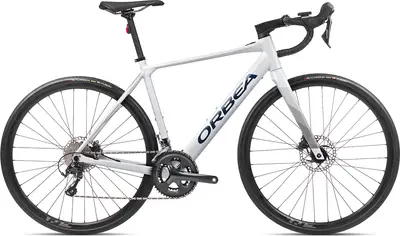

GAIN D40
An aluminum frame endurance e-bike with mid-range components and shimano tiagra hydraulic disc brakes.
Manufacturer Price
£2,659($3,566)| Frame | Aluminum |
|---|---|
| Fork | Carbon |
| Wheels | 700c Aluminum |
| Drivetrain | 2 × 10 |
| Groupset | Tiagra |
| Motor | hub-drive |
| Battery | 248Wh |
| Brakes | Shimano Tiagra Hydraulic Disc |
4'11" – 5'4"
5'2" – 5'8"
5'6" – 6'0"
5'10" – 6'4"
6'2" – 6'7"
- 6'6", size XL, Just right
- 6'1", size LG, Just right
- 6'3", size LG, Just right
May 2021 · RBA Staff
Orbea is staying true to their legacy of designing eye-catching bikes, and here they’ve created another work of art with the Gain M20i e-road bike. Orbea took many details into account when heading to the drawing board on the latest version of their e-road machine.
Apr 2021 · By
Orbea send the Gain M20i into the race and, with some additional power from Ebikemotion, want to snag the win. Can an E-road bike be the best road bike of the 2021 season? And how does it perform in comparison to the other two ebikes and 12 purely muscle-powered contenders? Find out all the answers here.
High stability
Intuitive and good-natured handling
Light integration
MyO customisation
Comfort imbalance between front and rear
Sometimes unnatural power output of motor due to its lack of a torque sensor
Dec 2020 · Paul Norman
A great ride and visual control of the motor’s support level from the bars
Well specced
Head unit to control and monitor motor
Battery easy to deplete quickly
No mudguard mounts
Nov 2019 · Warren Rossiter
Hugely fun, even with the motor switched off. The Gain is a real pleasure to ride
Subtle assistance, can be bespoke
Wheel upgrade is a must to get the best from the bike
Jun 2018
Verdict: Lightweight e-gravel bike that's an enjoyable ride and will appeal to more experienced riders wanting a bit of help
| Frame | Orbea Gain Hydro 6061 Hydroform Aluminum 2021, ICR cable routing, Forged BB, safety screw, 135x9 QR, Flat Mount disc mount, 700x40 maximun tyre, 1" 1/2 semiintegrated head set, 41x86,5 Pressfit botton bracket. BB Standard: BB86/BB92, 86mm, Press Fit Colors: White-Grey (Gloss); Black- Titanium (Matte); Pastel Green (Gloss)- Black (Matte) |
|---|---|
| Fork | Gain Hydro carbon fork, full carbon, 1-1/8" - 1.5" tappered head tube compatible, 700x40 maximun tyre, flat mount disc mount, Thru axle 12x100mm |
| Bottom Bracket | BB86/BB92, 86mm, press-fit |
| Headset | Acros Alloy 1-1/2" Internal Cable Routing |
| Stem | OC1 31.8mm interface -6º |
| Handlebar | OC1 Road, reach 80mm, drop 125mm |
| Saddle | Selle Royal Asphalt GR |
| Seatpost | OC 27.2 Offset 0, for integrated light Type: Rigid |
| Rear Derailleur | Shimano Tiagra 4700 GS |
|---|---|
| Front Derailleur | Shimano Tiagra 4700 |
| Crank | Shimano Tiagra 4700 34x50t |
| Shifters | Shimano Tiagra ST-4770 |
| Cassette | Shimano Tiagra HG-500 11-32t 10-Speed |
| Chain | KMC X10 |
| Brakes | Shimano Tiagra 4770 Hydraulic Disc Type: Shimano Tiagra Hydraulic Disc |
| Rims | Ready GR |
|---|---|
| Tires | Hutchinson Fusion 5 Performance TLR 700x30 |
| Motor | Ebikemotion X35 Plus 25kmh |
|---|---|
| Battery | Ebikemotion 36V/6.9A 248Wh ANT+ |
| Remote | Ebikemotion iWoc ONE |
| Display | OC monochrome ANT+ LEV |
| Charger | Ebikemotion X35 |
| Lights | Front: Front position light, on display holder, COB Led, On/Off, 60 Lumen, ECE50., Rear: Lezyne FENDER STVZO seatpost mounting 11 lumens |
|---|
First added April 27
Last updated April 27
Not listed for 1,832 days
