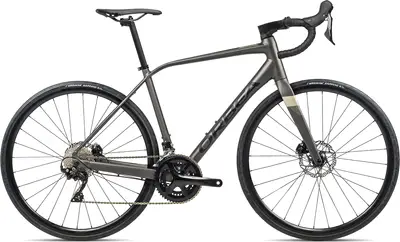

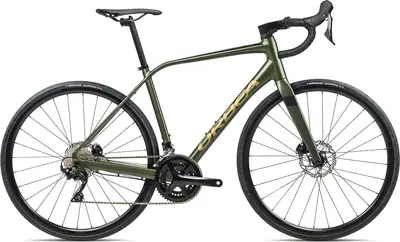

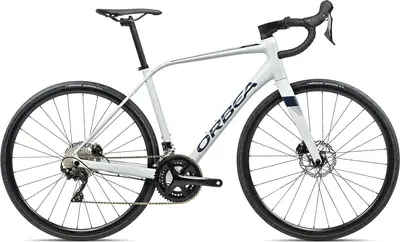

2021 Orbea
AVANT H30-D
An aluminum frame endurance bike with upper mid-range components and hydraulic disc brakes.
Compare the full range
Manufacturer Price
$1,999| Frame | Aluminum |
|---|---|
| Suspension | Rigid |
| Fork | Carbon |
| Wheels | 700c Aluminum |
| Drivetrain | 2 × 11 |
| Groupset | 105, Shimano |
| Brakes | Hydraulic Disc |
For This Bike
Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more.
Compare the full AVANT model range
View Comparison5'1" – 5'4"
5'2" – 5'7"
5'4" – 5'9"
5'7" – 6'0"
5'10" – 6'2"
6'0" – 6'4"
6'2" – 6'10"
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Jul 2021 · Simon Withers
Ultra-distinctive, updated and integrated endurance bike
Comfort
Control
Tyre clearance
Lower-spec groupset
Slightly weighty
No front mudguard mounts
Mar 2021 · Stefan Abram
Perhaps the only bike at this price point with such an integrated cockpit – but is this where you should be spending your money?
Super tidy cable management
Robust 28mm tyres
Comfortable ride
Mudguard mounts
Great brake calipers
Cockpit is not adjustment friendly
Squidgy brake cable housing
Only eight-speed
Fork doesn’t match the rear's clearances
Jul 2020
Orbea's all-day endurance alloy Avant mixes all-road capability with all-day comfort in the most affordable integrated cockpit road bike you'll find...
Feb 2018 · Vicky
The Spanish marque evolves the endurance bike in our latest Orbea bike test
| Frame | Orbea Avant Hydro disc, hydroformed triple butted aluminium, HS 1,5" ICR, BB 68mm – BSC English, Thru Axle 12x142mm rear, thread M12x2 P1, Internal Cable Routing, SP 27,2mm, MMS system. BB Standard: BSA, 68mm, Threaded Colors: White-Grey (Gloss); Speed Silver (Matte); Military Green- Gold (Gloss) |
|---|---|
| Fork | Orbea carbon fork 2021, aluminum steerer, 1-1/8" head tube |
| Bottom Bracket | BSA, 68mm, threaded |
| Headset | Acros Alloy 1-1/2" Internal Cable Routing |
| Stem | OC1 31.8mm interface -6º |
| Handlebar | OC1 Road, reach 80mm, drop 125mm |
| Saddle | Selle Royal Seta RS |
| Seatpost | Alloy 27.2 Offset 20 Type: Rigid |
| Rear Derailleur | Shimano 105 R7000 GS |
|---|---|
| Front Derailleur | Shimano 105 R7000 |
| Crank | Shimano RS510 34x50t |
| Shifters | Shimano ST-7020 |
| Cassette | Sun Race CSRS3 11-34t 11-Speed |
| Chain | Fsa Team Issue |
| Brakes | Shimano R7070 Hydraulic Disc Type: Hydraulic Disc |
| Rims | Orbea wheel: Cosra with 12mm E-Thru hubset Shimano RS470 28H |
|---|---|
| Tires | Vittoria Zafiro V Rigid bead 700x28c |
