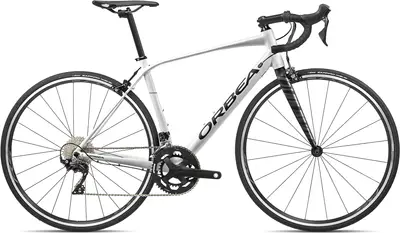

2021 Orbea AVANT H30

An aluminum frame endurance bike with upper mid-range components and rim brakes, priced near the middle of the AVANT model range. Compare the full range

View on orbea.com

2021 Orbea AVANT H30
MSRP£1,259 (about $1,773)
FrameAluminum
ForkCarbon
Wheels700c
Drivetrain2 × 11
Groupset105, FSA
BrakesRim

Notify me when this bike becomes available or goes on sale.

Where to Buy
Compare

Gearing

2 × 11 — 22 speed

AVANT H30

39 mph

Similar Bikes

39 mph

The AVANT H30 is easier to ride up hills than similar bikes.

The AVANT H30 is geared about the same as similar bikes for riding downhill.


Estimated Spec Level

Based on build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more. Learn more

Spec level →$0$200$400$600$800$1,000$1,200$1,400$1,600
This bike
Other endurance bikes

Reviews

July 2021

BikeRadar
Orbea Avant H60-D review

Ultra-distinctive, updated and integrated endurance bike

Read Full Review

March 2021

Cycling Weekly
Orbea Avant H60 Disc road bike

Perhaps the only bike at this price point with such an integrated cockpit – but is this where you should be spending your money?

Read Full Review

July 2020

Bikerumor
Orbea Avant all-road bike finds new life in affordable, fully integrated alloy frame

Orbea's all-day endurance alloy Avant mixes all-road capability with all-day comfort in the most affordable integrated cockpit road bike you'll find...

Read Full Review

February 2018

Road Bike Action
Orbea Avant M40

The Spanish marque evolves the endurance bike in our latest Orbea bike test

Read Full Review


Geometry

Sizing
47cm

5'1" – 5'4"

49cm

5'2" – 5'7"

51cm

5'4" – 5'9"

53cm

5'7" – 5'12"

55cm

5'10" – 6'2"

57cm

6'0" – 6'4"

60cm

6'2" – 6'10"


Specs
Build
Frame

Orbea Avant Hydro, hydroformed triple butted aluminum, headset 1-1/8", BB 68mm - BSC English, internal cable routing, 130 OLD, 27,2mm seat tube.

BB StandardBSA, 68mm, threaded

Fork

Orbea Avant carbon fork, aluminum steerer, 1-1/8" head tube

Bottom Bracket

BSA, 68mm, threaded

Headset

1-1/8" Semi-Integrated Aluminium Cup

Stem

OC1 31.8mm interface -7º

Handlebar

OC1 Road, reach 80mm, drop 125mm

Saddle

Selle Royal Seta RS

Seatpost

Alloy 27.2 Offset 20

Groupset
Rear Derailleur

Shimano 105 R7000 GS

Front Derailleur

Shimano 105 R7000

Crank

FSA Omega Megaexo 34x50t

Shifters

Shimano 105 R7000

Cassette

Sun Race CSRS3 11-34t 11-Speed

Chain

Fsa Team Issue

Brakes

Orbea OC-II

Wheels
Rims

Shimano RS100 Clincher

Tires

Vittoria Zafiro IV 700x25
