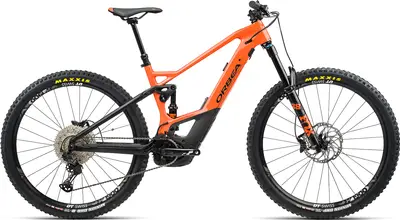

2020 Orbea WILD FS M20 20mph

High-end component level carbon frame enduro e-bike

View on orbea.com

2020 Orbea WILD FS M20 20mph
  • MSRP $6,299
  • Suspension Full
  • Front Travel 160mm
  • Rear Travel 160mm
  • Frame Carbon
  • Fork 
    Fox Performance Float 36
  • Wheels 29″
  • Groupset 
    Shimano XT
  • Motor Bosch
  • Battery Bosch 625Wh
  • Brakes Hydraulic Disc
  • Seatpost Dropper post
Estimated Spec Level
est. spec level →$0$1,000$2,000$3,000$4,000$5,000$6,000
This bike
Other enduro bikes

Estimated spec level of the WILD FS M20 20mph compared to other enduro bikes. 99 Spokes analyzes the build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more to estimate the overall spec level of each bike.  Learn more »

Geometry
Build
FrameORBEA WILD Full Suspension 2020 Carbon 160mm Travel FRONT TRIANGLE: Carbon, REAR TRIANGLE: Aluminum, AlloyLink, BATTERY COVER: Polymer, Boost 12x148 Bosch Gen4
ForkFox 36 Float Performance 160 Grip 3-Position QR15x110 E-Bike Optimized
Rear ShockFox Float DPS Performance Trunnion 3-Position Evol LV custom tune 205x65mm
HeadsetOC Key Holder
StemRace Face Aeffect R 35mm interface
HandlebarRace Face Aeffect 35 20mm Rise 780mm
SaddleSelle Royal Vivo
SeatpostOC2 Dropper 31.6mm
Pedals
Components
Rear DerailleurShimano XT M8100 SGS Shadow Plus
ShiftersShimano SLX M7100
CrankPW-NW32-G4
CassetteSun Race CSMZ80 11-51t 12-Speed Metalic E-bike
ChainKMC e12 Turbo Silver
Chain GuideOrbea OC chainguide 32-38t
BrakesShimano MT501 BR520 Hydraulic Disc
Wheels
RimsDT Swiss H-1900 Spline 30c TLR 15/110mm CL
TiresMaxxis Minion DHR II 2.60" 120 TPI FB 3C Maxx Terra Exo+ TR
Electric Components
MotorBOSCH Performance CX Cruise (20mph) BDU480CX
BatteryBOSCH Powertube 625Wh Horizontal US BBP295
RemoteBOSCH Performance Purion
ChargerCompact Charger 2A (100-240V) Worldwide
