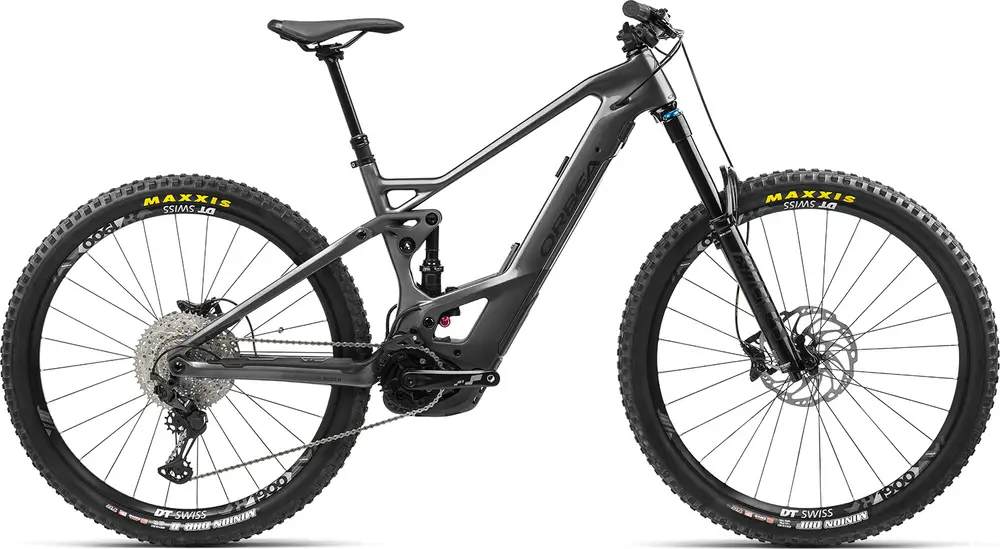

2020 Orbea WILD FS M10 20mph

High-end component level carbon frame enduro e-bike

View on www.orbea.com

2020 Orbea WILD FS M10 20mph
  • MSRP $7,299
  • Suspension Full
  • Front Travel 160mm
  • Rear Travel 160mm
  • Frame Carbon
  • Fork Fox Performance Float 36
  • Wheels 29″
  • Groupset XT, SLX
  • Motor Bosch
  • Battery Bosch 625Wh
  • Brakes Hydraulic Disc
  • Seatpost Dropper post

Where to Buy

Estimated Spec Level

Estimated spec level of the WILD FS M10 20mph compared to other enduro bikes. 99 Spokes analyzes the build material and quality level of the frame, fork, wheelset, groupset, suspension system, and more to estimate the overall spec level of each bike.

Learn more

est. spec level →$0$1,000$2,000$3,000$4,000$5,000$6,000$7,000
This bike
Other enduro bikes

Reviews

Geometry

Specs
Build
FrameORBEA WILD Full Suspension 2020 Carbon 160mm Travel, FRONT TRIANGLE: Carbon, REAR TRIANGLE: Carbon, FiberLink, BATTERY COVER: Carbon, Boost 12x148 Bosch Gen4
ForkFox 36 Float Performance 160 Grip 3-Position QR15x110 E-Bike Optimized
Rear ShockFox DPX2 Performance Trunnion Comp Adjust Evol LV custom tune 205x65mm
HeadsetOC Key Holder
StemRace Face Aeffect R 35mm interface
HandlebarRace Face Aeffect 35 20mm Rise 780mm
SaddleSelle Royal Vivo
SeatpostOC2 Dropper 31.6mm
Groupset
Rear DerailleurShimano XT M8100 SGS Shadow Plus
CrankPW-NW32-G4
ShiftersShimano SLX M7100 I-Spec EV
CassetteSun Race CSMZ80 11-51t 12-Speed Metalic E-bike
ChainKMC e12 Turbo Silver
Chain GuideEtherteen Plus Bosch BDU4 32-38t
BrakesShimano XT M8120 Hydraulic Disc
Wheels
RimsDT Swiss H-1900 Spline 30c TLR 15/110mm CL
TiresMaxxis Minion DHR II 2.60" 120 TPI FB 3C Maxx Terra Exo+ TR
Electric Components
MotorBOSCH Performance CX Cruise (20mph) BDU480CX
BatteryBOSCH Powertube 625Wh Horizontal US BBP295
RemoteBOSCH Display unit KIOX Black BUI330
ChargerCompact Charger 2A (100-240V) Worldwide
