2020 Orbea

VECTOR 30

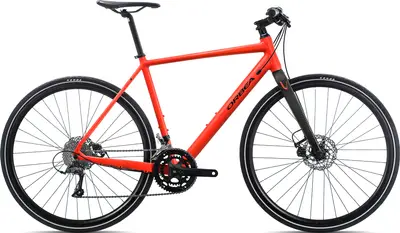

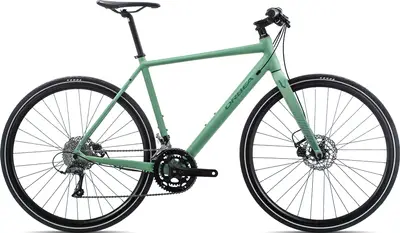

A 700c aluminum frame hybrid bike with mid-range components and mechanical disc brakes.
Compare the full range

FrameAluminum
SuspensionRigid
ForkAluminum
Wheels700c Aluminum
Drivetrain2 × 8
GroupsetClaris
BrakesMechanical Disc
Where to Buy
Similar Bikes

For This Bike

Accessories
Top Comparison
Insights
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

38 mph

VECTOR 30

35 mph

Similar Bikes

Highest gear

(descending)

Sizing
XS

4'11" – 5'4"

SM

5'2" – 5'8"

MD

5'6" – 6'0"

LG

5'10" – 6'4"

XL

6'2" – 6'7"

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Geometry
99 Spokes on YouTube99 Spokes on YouTube
Specs
Build
Frame

Orbea Urban Speed, Aluminium 6000, Orbea Tube Shaping, Flat Mount Disc Brake, 135x9 QR, Carrier and Mudguard compatible, max 700x40C, Inner Cable routing,

Tire Clearance40c

ColorsBlack (Matte-Gloss); Green (Matte-Gloss); Bright Red-Black (Matte-Gloss); Bluebird (Matte-Gloss)

Fork

Speed 400mm Alloy Flat mount

Headset

VP-Z104PD 1-1/8" Semi-Cartridge

Stem

Alloy 31.8mm interface 7º

Handlebar

Alloy 31.8mm Riser 640mm

Saddle

Selle Royal Asphalt GR

Seatpost

Alloy 27.2 Offset 0

TypeRigid

Groupset
Rear Derailleur

Shimano Claris RD-R2000-GS

Front Derailleur

Shimano Claris FD-R2000-F

Crank

Prowheel 32x48 Steel Custom logo

Shifters

Shimano Claris SL-R2000

Cassette

Shimano HG50 11-34t 8-Speed

Chain

KMC X8

Brakes

Shimano TX805 Mechanical Disc

TypeMechanical Disc

Brake Levers

Shimano Claris BL-R2000

Wheels
Rims

Orbea Airline Corsa Disc 700X19c

Tires

Kenda K1098 700x32 Reflective Tape

Rider Notes
