2020 Orbea
VECTOR 15
A 700c aluminum frame hybrid bike with mid-range components and hydraulic disc brakes.
Compare the full range
| Frame | Aluminum |
|---|---|
| Suspension | Rigid |
| Fork | Carbon |
| Wheels | 700c Aluminum |
| Drivetrain | 2 × 9 |
| Groupset | Sora |
| Brakes | Hydraulic Disc |
For This Bike
4'11" – 5'4"
5'2" – 5'8"
5'6" – 6'0"
5'10" – 6'4"
6'2" – 6'7"
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

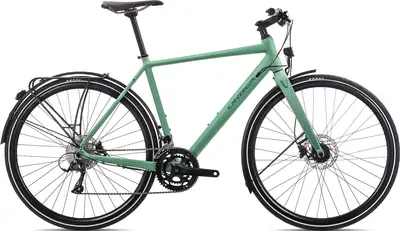

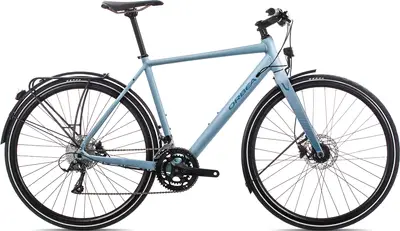

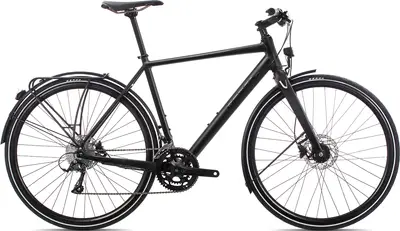

| Frame | Orbea Urban Speed, Aluminium 6000, Orbea Tube Shaping, Flat Mount Disc Brake, 135x9 QR, Carrier and Mudguard compatible, max 700x40C, Inner Cable routing, Tire Clearance: 40c Colors: Black (Matte-Gloss); Green (Matte-Gloss); Bright Red-Black (Matte-Gloss); Bluebird (Matte-Gloss) |
|---|---|
| Fork | Speed 400mm Carbon Flat mount |
| Headset | VP-Z104PD 1-1/8" Semi-Cartridge |
| Stem | Alloy 31.8mm interface 7º |
| Handlebar | Alloy 31.8mm Riser 640mm |
| Saddle | Selle Royal Asphalt GR |
| Seatpost | Alloy 27.2 Offset 0 Type: Rigid |
| Rear Derailleur | Shimano Sora 3000GS |
|---|---|
| Front Derailleur | Shimano Sora 3000 |
| Crank | Prowheel 32x48 Steel Custom logo |
| Shifters | Shimano Sora |
| Cassette | Shimano HG400 11-34t 9-Speed |
| Chain | Shimano HG53 9-Speed |
| Brakes | Shimano MT200 Hydraulic Disc Type: Hydraulic Disc |
| Rims | Orbea Airline Corsa Disc 700X19c |
|---|---|
| Tires | Kenda K1098 700x32 Reflective Tape |
| Lights | Front: Joss Spanninga Kendo XDAS Dinamo, Rear: Spanninga Pixeo |
|---|---|
| Fenders | SKS EDGE Alloy C46R |
| Racks | Rear: Orbea rear luggage carrier (Max:18Kg) |
