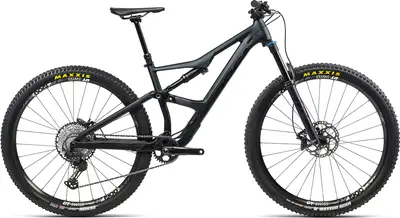

2020 Orbea
OCCAM H10
A 29″ aluminum frame full suspension trail bike with high-end components.
Compare the full range
| MSRP | $3,799 |
|---|---|
| Frame | Aluminum |
| Suspension | Full, 140 / 140mm |
| Fork | Fox Performance Float 34 |
| Shock | Fox Float DPS Performance |
| Wheels | 29″ Aluminum |
| Drivetrain | 1 × 12 |
| Groupset | XT |
| Brakes | Hydraulic Disc |
| Seatpost | Dropper |
For This Bike
4'11" – 5'5"
5'2" – 5'9"
5'6" – 6'1"
5'10" – 6'6"
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Sep 2021 · Seb Stott
The new 150mm Occam LT is for when the 160mm Rallon is too much, and the regular 140mm Occam isn't enough.
Mar 2021 · McCoy
After long days in the saddle conquering countless mountains and demanding singletrack lines, our wrecking crew feels that the Occam sits as one of the most ideal trail bikes we’ve...
May 2020 · Robert Johnston
The Orbea Occam is one hell of a bike. Capable on a huge variety of terrain, well put together and well spec'd, the M10 is a true machine for all mountains. Find our complete review and final thoughts of the Orbea Occam here!
May 2020 · SingletrackZach Vuco
This intriguing 140mm travel 29er takes on central Colorado's challenging trails. Brilliant trail bike for all day rides
Apr 2020 · Ross Demain
Ross hops aboard the Orbea Occam M10 - is it really the all rounder it's billed as? From bike park to local descents, Ross finds out.
Mar 2020
The Occam in this stock configuration would be SO GOOD for so many American trail centers. The slightly shorter travel (140/150) means that flatter and less technical trails will not necessarily be…
Mar 2020
Orbea completely overhauled its Occam trail bike for 2020, using a brand new asymmetric frame design built around 29in wheels and 140mm of travel. Mick took the Occam M10 to Derby and Falls Creek to see how the Spanish brand's latest trail bike performs on some iconic Aussie singletrack. Read on for the full review.
Classy, good-looking frame
Neutral handling that's easy to get along with
Thoroughly comfortable and efficient climber
MyO program offers spec flexibility
Suspension needs fettling to get it balanced
Water bottle hits frame
The XT mech failed on us
Damn rattly brake pads!
Jun 2019
Orbea took inspiration from the form and function of its successful Rallon to create the balance of stiffness, durability and low weight in the new Occam. - Mtbr.com
| Frame | Orbea Occam Hydro High Polished Triple Butted 140mm travel 29"-Boost 12x148 BB Standard: BSA, 73mm, Threaded Colors: Metallic Black (Matte-Gloss); Salmon - Blue Indigo (Gloss) |
|---|---|
| Fork | Fox 34 Float Performance 140 3-Position QR15x110 Travel: 140mm Spring Type: Air |
| Shock | Fox Float DPS Performance 3-Position Evol custom tune 210x50mm Travel: 140mm Spring Type: Air |
| Bottom Bracket | BSA, 73mm, threaded |
| Headset | Acros Alloy 1-1/8 - 1-1/2" Integrated |
| Stem | Race Face Aeffect R 35mm interface |
| Handlebar | Race Face Aeffect 35 20mm Rise 780mm |
| Saddle | Fizik Taiga S-alloy rail |
| Seatpost | OC2 Dropper 31.6mm Type: Dropper |
| Rear Derailleur | Shimano XT M8100 SGS Shadow Plus |
|---|---|
| Crank | Shimano XT M8100 32t |
| Shifters | Shimano XT M8100 I-Spec EV |
| Cassette | Shimano CS-M7100 10-51t 12-Speed |
| Chain | Shimano M6100 |
| Brakes | Shimano M6120 Hydraulic Disc Type: Hydraulic Disc |
| Rims | DT Swiss M-1900 Spline 30c TLR 15/110mm CL |
|---|---|
| Tires | Maxxis Rekon 2.40" FB 60 TPI Dual Exo TR |
