2020 Orbea

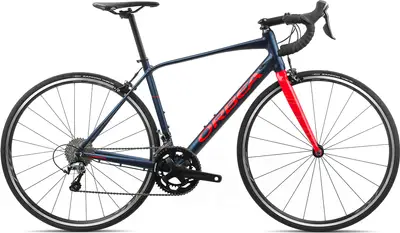

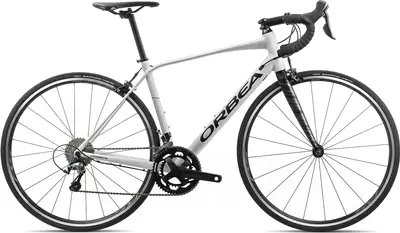

AVANT H40

An aluminum frame endurance bike with mid-range components and rim brakes.
Compare the full range

FrameAluminum
SuspensionRigid
ForkCarbon
Wheels700c Aluminum
Drivetrain2 × 10
GroupsetTiagra, FSA
BrakesRim
Where to Buy
Similar Bikes

For This Bike

Accessories
Top Comparison
Insights
Ride Feel

Based on frame geometry and build specs.

Rider Position
relaxedaggressive
Terrain
smoothrugged
AVANT H40
Other Endurance bikes
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

39 mph

AVANT H40

39 mph

Similar Bikes

Highest gear

(descending)

Sizing
47cm

5'1" – 5'4"

49cm

5'2" – 5'7"

51cm

5'4" – 5'9"

53cm

5'7" – 6'0"

55cm

5'10" – 6'2"

57cm

6'0" – 6'4"

60cm

6'2" – 6'10"

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Reviews
BikeRadar
Orbea Avant H60-D review

Jul 2021 · Simon Withers

Ultra-distinctive, updated and integrated endurance bike

Highs
  • Comfort

  • Control

  • Tyre clearance

Lows
  • Lower-spec groupset

  • Slightly weighty

  • No front mudguard mounts

Read Review

Cycling Weekly
Orbea Avant H60 Disc road bike

Mar 2021 · Stefan Abram

Perhaps the only bike at this price point with such an integrated cockpit – but is this where you should be spending your money?

Highs
  • Super tidy cable management

  • Robust 28mm tyres

  • Comfortable ride

  • Mudguard mounts

  • Great brake calipers

Lows
  • Cockpit is not adjustment friendly

  • Squidgy brake cable housing

  • Only eight-speed

  • Fork doesn’t match the rear's clearances

Read Review

Bikerumor
Orbea Avant all-road bike finds new life in affordable, fully integrated alloy frame

Jul 2020

Orbea's all-day endurance alloy Avant mixes all-road capability with all-day comfort in the most affordable integrated cockpit road bike you'll find...

Read Review

Road Bike Action
Orbea Avant M40

Feb 2018 · Vicky

The Spanish marque evolves the endurance bike in our latest Orbea bike test

Read Review

VeloNews
Buyer's Guide 2017: Orbea Avant M20iTeam-D

May 2017 · William Tracy

Orbea's Avant offers an upright position that might work well for some riders and a stiff ride that feels fast on brisk group rides.

Read Review

Bicycling
Get Aero or Go Long on the 2017 Orbea Orca and Avant

Sep 2016 · Ron Koch

Orbea’s hard-hitting Orca race bike and smoother Avant endurance model highlight the brand's 2017 range

Read Review

Cycling Tips
First-look review: 2017 Orbea Orca and Avant

Sep 2016

First up: a full disclosure. I’m a sucker for all things Basque. Be it the culture, the heritage, the classy riders that the region seems to continually churn out, the amazing landscapes, or the food -- it all makes me a little romantic, a little misty-eyed. So when the invitation came through from Orbea to attend

Read Review

Geometry
99 Spokes on YouTube99 Spokes on YouTube
Specs
Build
Frame

Orbea Avant Hydro, hydroformed triple butted aluminum, headset 1-1/8", BB 68mm - BSC English, internal cable routing, 130 OLD, 27,2mm seat tube.

BB StandardBSA, 68mm, Threaded

ColorsGraphite (Gloss) / Black (Matte); White (Gloss) / Black (Matte); Blue Navy (Matte) / Bright Red (Gloss)

Fork

Avant carbon fork, aluminum steerer, 1-1/8" head tube

Bottom Bracket

BSA, 68mm, threaded

Headset

1-1/8" Semi-Integrated Aluminium Cup

Stem

Orbea OC-II

Handlebar

OC1 Road, reach 80mm, drop 125mm

Saddle

Selle Royal Seta RS

Seatpost

Alloy 27.2 Offset 20

TypeRigid

Groupset
Rear Derailleur

Shimano Tiagra 4700 GS

Front Derailleur

Shimano Tiagra 4700

Crank

FSA Omega Megaexo 34x50t

Shifters

Shimano Tiagra ST-4700

Cassette

Shimano Tiagra HG-500 11-32t 10-Speed

Chain

KMC X10

Brakes

Orbea OC-II

TypeRim

Wheels
Rims

Shimano RS100 Clincher

Tires

Vittoria Zafiro IV 700x25
