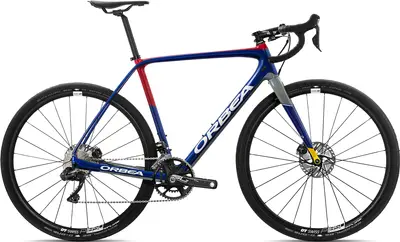

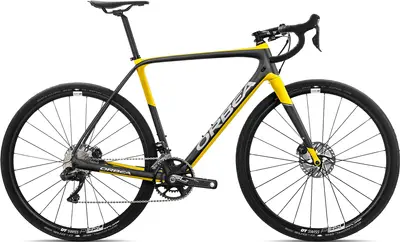

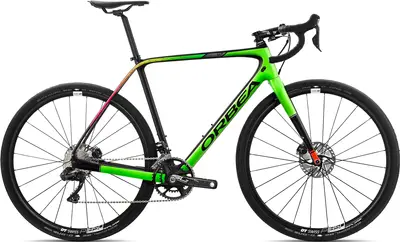

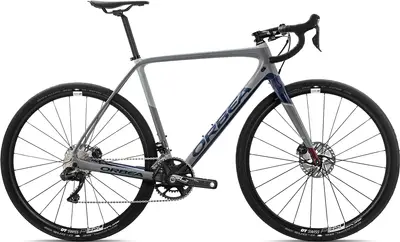

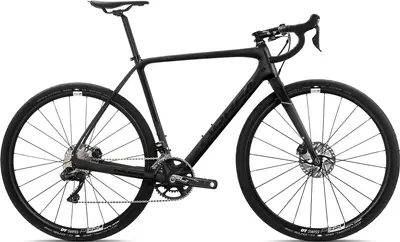

TERRA M20i-D
A carbon frame gravel bike with high-end components and hydraulic disc brakes.
Compare the full range
Manufacturer Price
$4,799Frame | Carbon |
---|---|
Suspension | Rigid |
Fork | Carbon |
Wheels | 700c Aluminum |
Drivetrain | 2 × 11 Electronic |
Groupset | Ultegra Di2, Shimano |
Brakes | Hydraulic Disc |
For This Bike
5'0" – 5'5"
5'5" – 5'9"
5'10" – 6'1"
6'2" – 6'4"
Jul 2020 · Warren Rossiter
Bright and bold gravel machine from Spain
Lively ride
Capable off- and on-road
Well-priced
1x gearing is very off-road-focused
Nov 2018 · Matthew Page
A superb, customisable all-rounder that rides brilliantly on and off road, and is good value
Customisable paint finish and components
Compliant and comfortable rear end
Extra mounting options for added versatility
Narrow rims
Lack of front end comfort
Non-tubeless ready wheels
Sep 2018 · David Arthur @davearthur
A good choice for covering gravel and road quickly
Dec 2017
CyclingTips US technical editor James Huang's long-term review of the new Orbea Terra gravel bike.
Sep 2016 · Ron Koch
We got to see the company's new gravel-oriented bike well ahead of its launch. Here's what we know so far.
Frame | Orbea Terra carbon OMP disc, monocoque construction, tapered 1-1/8" - 1,5", PF30, powermeter compatible, Thru Axle 12mm x 142mm rear, thread M12x P1.5, internal cable routing, EC/DC compatible, SP 27,2mm. BB Standard: PF30, Press Fit |
---|---|
Fork | Orbea Terra OMP carbon disc fork, full carbon steerer, tapered 1-1/8" - 1,5", carbon dropouts Thru axle 12mm x 100m, thread M12xP1.5, MMS system |
Bottom Bracket | PF30, press-fit |
Headset | FSA 1-1/8 - 1-1/2" Integrated Carbon Cup ACB Bearings |
Stem | FSA Energy |
Handlebar | FSA Energy Compact |
Saddle | Fizik Antares R5 Versus EVO Regular |
Seatpost | Orbea OC-III Carbon 27.2x350mm Type: Rigid |
Pedals | N/A |
Rear Derailleur | Shimano Ultegra RX805 GS Direct mount |
---|---|
Front Derailleur | Shimano Ultegra Di2 R8050 |
Crank | FSA SL-K Modular Adventure 30x46t |
Shifters | Shimano ST-8070 |
Cassette | Shimano Ultegra R8000 11-32t 11-Speed |
Chain | KMC X11-EL |
Brakes | Shimano R8070 Hydraulic Disc Type: Hydraulic Disc |
Rims | DT Swiss P 1850 Spline DB 23 CL TL |
---|---|
Front Hub | Orbea Road 12x100mm, thread M12xP1.5 |
Rear Hub | Orbea Road 12x142mm, thread M12xP1.5 |
Tires | Schwalbe G-ONE Allround, 40-622, Black, Folding |
