2019 Orbea

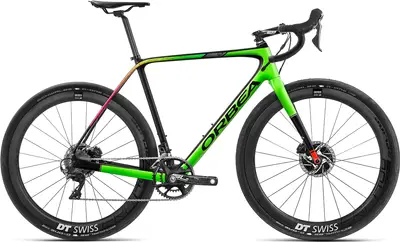

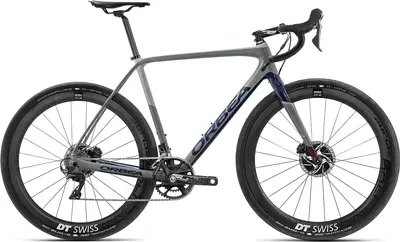

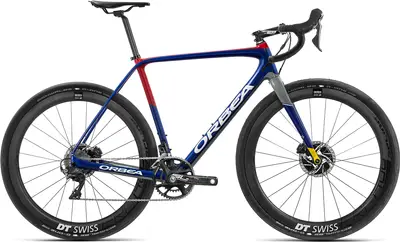

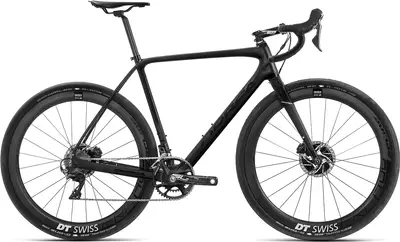

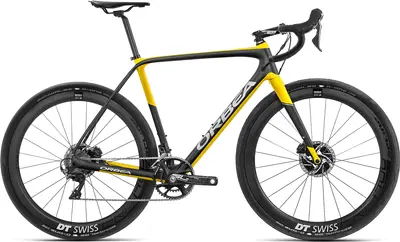

TERRA M10-D

A carbon frame gravel bike with ultra high-end components and hydraulic disc brakes.
Compare the full range

MSRP$5,999
FrameCarbon
SuspensionRigid
ForkCarbon
Wheels700c Carbon
Drivetrain2 × 11
GroupsetDura-Ace, FSA
BrakesHydraulic Disc
Where to Buy
Similar Bikes

For This Bike

Accessories
Top Comparison
Insights
Ride Feel

Based on frame geometry and build specs.

Rider Position
relaxedaggressive
Terrain
smoothrugged
TERRA M10-D
Other Gravel bikes
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

36 mph

TERRA M10-D

36 mph

Similar Bikes

Highest gear

(descending)

Sizing
XS

5'0" – 5'5"

SM

5'5" – 5'9"

MD

5'10" – 6'1"

LG

6'2" – 6'4"

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Reviews
BikeRadar
Orbea Terra M20-D1x GRX review

Jul 2020 · Warren Rossiter

Bright and bold gravel machine from Spain

Highs
  • Lively ride

  • Capable off- and on-road

  • Well-priced

Lows
  • 1x gearing is very off-road-focused

Read Review

Cyclist
Orbea Terra M31 D-19 adventure bike review

Nov 2018 · Matthew Page

A superb, customisable all-rounder that rides brilliantly on and off road, and is good value

Highs
  • Customisable paint finish and components

  • Compliant and comfortable rear end

  • Extra mounting options for added versatility

Lows
  • Narrow rims

  • Lack of front end comfort

  • Non-tubeless ready wheels

Read Review

road.cc
Orbea Terra M21-D 19

Sep 2018 · David Arthur @davearthur

A good choice for covering gravel and road quickly

Read Review

Cycling Tips
Orbea Terra long-term review: Happily devouring the dirt

Dec 2017

CyclingTips US technical editor James Huang's long-term review of the new Orbea Terra gravel bike.

Read Review

Bicycling
First Look: Orbea's Prototype Terra

Sep 2016 · Ron Koch

We got to see the company's new gravel-oriented bike well ahead of its launch. Here's what we know so far.

Read Review

Geometry
99 Spokes on YouTube99 Spokes on YouTube
Specs
Build
Frame

Orbea Terra carbon OMP disc, monocoque construction, tapered 1-1/8" - 1,5", PF30mm, powermeter compatible, Thru Axle 12mm x 142mm rear, internal cable routing, EC/DC compatible, 27,2mm seat tube, MMS system

BB StandardPF30, Press Fit

Fork

Orbea Terra OMP carbon disc fork, full carbon steerer, tapered 1-1/8" - 1,5", carbon dropouts Thru axle 12mm x 100m MMS system

Bottom Bracket

PF30, press-fit

Headset

FSA 1-1/8 - 1-1/2" Integrated Carbon Cup ACB Bearings

Stem

FSA Energy

Handlebar

FSA Energy Compact

Saddle

Fizik Antares R5 Versus EVO Regular

Seatpost

Orbea OC-III Carbon 27.2x350mm

TypeRigid

Pedals

N/A

Groupset
Rear Derailleur

Shimano Dura-Ace 9100 SS Direct Mount

Front Derailleur

Shimano Dura-Ace 9100

Crank

FSA SL-K Modular Adventure 30x46t

Shifters

Shimano R9120

Cassette

Shimano Dura-Ace 9100 11-30t 11-Speed

Chain

Shimano HG 901

Brakes

Shimano R9170 Hydraulic Disc

TypeHydraulic Disc

Wheels
Rims

DT ERC 1400 Spline DB 47 Carbon CL TL

Tires

Schwalbe G-ONE Allround, 40-622, Black, Folding
