2019 Orbea

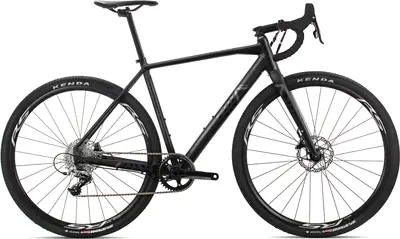

TERRA H31-D
An aluminum frame gravel bike with upper mid-range components and hydraulic disc brakes.
Compare the full range
Manufacturer Price
$2,199| Frame | Aluminum |
|---|---|
| Suspension | Rigid |
| Fork | Carbon |
| Wheels | 700c Aluminum |
| Drivetrain | 1 × 11 |
| Groupset | Rival |
| Brakes | Hydraulic Disc |
For This Bike
Jul 2020 · Warren Rossiter
Bright and bold gravel machine from Spain
Lively ride
Capable off- and on-road
Well-priced
1x gearing is very off-road-focused
Nov 2018 · Matthew Page
A superb, customisable all-rounder that rides brilliantly on and off road, and is good value
Customisable paint finish and components
Compliant and comfortable rear end
Extra mounting options for added versatility
Narrow rims
Lack of front end comfort
Non-tubeless ready wheels
Sep 2018 · David Arthur @davearthur
A good choice for covering gravel and road quickly
Dec 2017
CyclingTips US technical editor James Huang's long-term review of the new Orbea Terra gravel bike.
Sep 2016 · Ron Koch
We got to see the company's new gravel-oriented bike well ahead of its launch. Here's what we know so far.
| Frame | Orbea Terra Hydro disc, hydroformed triple butted aluminium, tapered 1-1/8" - 1,5", BB 68mm – BSC English, Thru Axle 12mm x 142mm rear, thread M12x P1.5, DT internal cable routing, 27,2mm seat tube, MMS system BB Standard: BSA, 68mm, Threaded |
|---|---|
| Fork | Orbea Terra OMP carbon disc fork, full carbon steerer, tapered 1-1/8" - 1,5", carbon dropouts Thru axle 12mm x 100m, thread M12xP1.5, MMS system |
| Bottom Bracket | BSA, 68mm, threaded |
| Headset | FSA 1-1/8 - 1-1/2" Integrated Aluminium Cup ACB Bearings |
| Stem | Orbea OC-II |
| Handlebar | Orbea OC-II |
| Saddle | Selle Royal Seta RS |
| Seatpost | Orbea OC-I 27.2x350mm Type: Rigid |
| Pedals | N/A |
| Rear Derailleur | SRAM Rival 1 X-Horizon |
|---|---|
| Crank | SRAM Rival 40t |
| Shifters | SRAM Rival |
| Cassette | SRAM Rival PG-1130 11-36t 11-Speed |
| Chain | Fsa Team Issue |
| Brakes | SRAM Rival Hydraulic Type: Hydraulic Disc |
| Rims | Shimano RS170 12/100 CL |
|---|---|
| Front Hub | Orbea Road 12x100mm, thread M12xP1.5 |
| Rear Hub | Orbea Road 12x142mm, thread M12xP1.5 |
| Tires | Kenda Flintridge K1152 700x40 DTC 60TPI |
Last updated September 17
Not listed for 1,692 days
