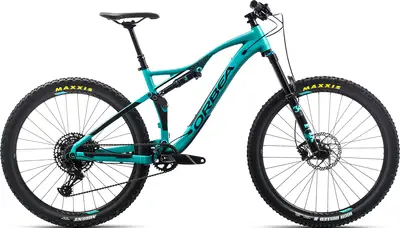

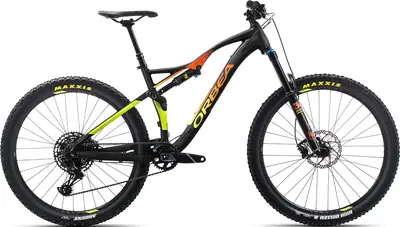

OCCAM AM H30
A 27.5″ aluminum frame full suspension enduro bike with high-end components.
MSRP | $2,999 |
---|---|
Frame | Aluminum |
Suspension | Full, 150 / 150mm |
Fork | Fox Performance Float 34 |
Shock | Fox Float DPS Performance |
Wheels | 27.5″ Aluminum |
Drivetrain | 1 × 12 |
Groupset | NX Eagle, Truvativ Descendant |
Brakes | Hydraulic Disc |
Seatpost | Dropper |
For This Bike
5'2" – 5'8"
5'6" – 5'11"
5'10" – 6'3"
6'1" – 6'7"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
May 2020 · Robert Johnston
The Orbea Occam is one hell of a bike. Capable on a huge variety of terrain, well put together and well spec'd, the M10 is a true machine for all mountains. Find our complete review and final thoughts of the Orbea Occam here!
May 2020 · SingletrackZach Vuco
This intriguing 140mm travel 29er takes on central Colorado's challenging trails. Brilliant trail bike for all day rides
Apr 2020 · Ross Demain
Ross hops aboard the Orbea Occam M10 - is it really the all rounder it's billed as? From bike park to local descents, Ross finds out.
Mar 2020
The Occam in this stock configuration would be SO GOOD for so many American trail centers. The slightly shorter travel (140/150) means that flatter and less technical trails will not necessarily be…
Mar 2020
Orbea completely overhauled its Occam trail bike for 2020, using a brand new asymmetric frame design built around 29in wheels and 140mm of travel. Mick took the Occam M10 to Derby and Falls Creek to see how the Spanish brand's latest trail bike performs on some iconic Aussie singletrack. Read on for the full review.
Classy, good-looking frame
Neutral handling that's easy to get along with
Thoroughly comfortable and efficient climber
MyO program offers spec flexibility
Suspension needs fettling to get it balanced
Water bottle hits frame
The XT mech failed on us
Damn rattly brake pads!
Jun 2019 · Tom Marvin
Our review was based on riding the bike for two days on unfamiliar terrain. We are hoping to get a bike in the UK for a full review as soon as possible.
Up to date geometry, impressive suspension and customisable to your heart's content
Rekon won't be great in UK mid-winter
Jun 2019 · Finlay Anderson
For 2020, Orbea have completely redesigned the Orbea Occam by combining traits to bring the best of both worlds into one package.
Nov 2018 · Dan Cavallari
Orbea finds a balance between capabilities on rugged descents and efficiency and handling on tough climbs, making the Occam a winner.
Frame | Orbea Occam AM 2018 Hydro Triple Butted 150mm travel 27.5 C-Boost 12x148 PF |
---|---|
Fork | Fox 34 Float Performance 150 3-Position QR15x110 Travel: 150mm Spring Type: Air |
Shock | Fox Float DPS Performance 3-Position Evol custom tune 210x55mm Travel: 150mm Spring Type: Air |
Headset | Acros Alloy 1-1/8 - 1-1/2" Integrated |
Stem | Race Face Ride |
Handlebar | Orbea OC-II Riser 760mm |
Saddle | Selle Royal Custom Trail II 2043 HRN |
Seatpost | Race Face Aeffect Dropper 31.6x385/125mm Type: Dropper |
Pedals | N/A |
Rear Derailleur | SRAM NX Eagle |
---|---|
Crank | SRAM Descendant CNC Eagle Dub Boost 32t |
Shifters | SRAM NX Eagle |
Cassette | SRAM NX PG-1230 Eagle 11-50t 12-Speed |
Chain | SRAM NX Eagle 12-Speed |
Brakes | Shimano MT501 BR500 Hydraulic Disc Type: Hydraulic Disc |
Rims | Mach1 Klixx 23c Tubeless Ready |
---|---|
Tires | Maxxis Ardent 2.40" FB 60 Tpi |
