2019 Orbea

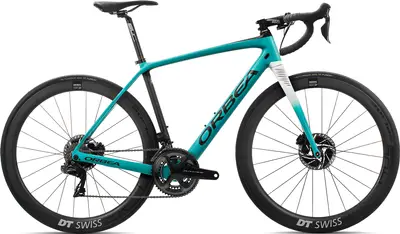

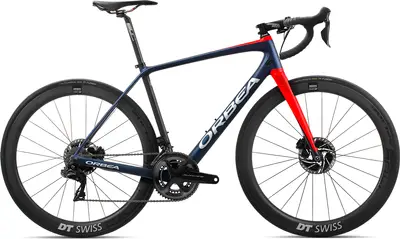

AVANT M10iTEAM-D
A carbon frame endurance bike with ultra high-end components and hydraulic disc brakes.
Compare the full range
Manufacturer Price
$7,999| Frame | Carbon |
|---|---|
| Suspension | Rigid |
| Fork | Carbon |
| Wheels | 700c Carbon |
| Drivetrain | 2 × 11 Electronic |
| Groupset | Dura-Ace Di2 |
| Brakes | Hydraulic Disc |
For This Bike
5'1" – 5'4"
5'2" – 5'7"
5'4" – 5'9"
5'7" – 6'0"
5'10" – 6'2"
6'0" – 6'4"
6'2" – 6'10"
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Jul 2020
Orbea's all-day endurance alloy Avant mixes all-road capability with all-day comfort in the most affordable integrated cockpit road bike you'll find...
Feb 2018 · Vicky
The Spanish marque evolves the endurance bike in our latest Orbea bike test
Sep 2017 · Warren Rossiter
Brilliant Basque bike for big miles. Buy if you're looking for a comfortable bike for long distances
Smooth ride, smooth handling, very well equipped
Not one for the racing snakes
May 2017 · William Tracy
Orbea's Avant offers an upright position that might work well for some riders and a stiff ride that feels fast on brisk group rides.
Mar 2017 · Paul Norman
We test ride the Orbea Avant M20Team-D, a bike in the middle of the range of endurance machines from the Basque manufacturer
Attractive design
Well specified
Full Icetech brake cooling
Comfortable ride
Room for 28mm or wider tyres
White shows the dirt
Sep 2016 · Ron Koch
Orbea’s hard-hitting Orca race bike and smoother Avant endurance model highlight the brand's 2017 range
Sep 2016
First up: a full disclosure. I’m a sucker for all things Basque. Be it the culture, the heritage, the classy riders that the region seems to continually churn out, the amazing landscapes, or the food -- it all makes me a little romantic, a little misty-eyed. So when the invitation came through from Orbea to attend
Sep 2016 · James Spender
'Everything is designed to help the rider go further and longer,’ said Orbea. And that proved pretty accurate.
| Frame | Orbea Avant carbon OMP disc, monocoque construction,tapered 1-1/8" - 1,5", BB 386, powermeter compatible, Thru Axle 12mm x 142mm rear, thread M12x P1.5, internal cable routing, EC/DC compatible, SP 27,2mm BB Standard: 386EVO, 86mm, Press Fit |
|---|---|
| Fork | Avant OMP carbon disc fork, full carbon steerer, tapered 1-1/8" - 1,5", carbon dropouts Thru axle 12mm x 100m |
| Bottom Bracket | 386EVO, 86mm, press-fit |
| Headset | FSA 1-1/8 - 1-1/2" Integrated Carbon Cup ACB Bearings |
| Stem | FSA Energy |
| Handlebar | FSA Energy Compact |
| Saddle | Prologo Nago Evo Space Tirox size 141mm |
| Seatpost | FSA SL-K SB20 27.2x350mm Di2 compatible Type: Rigid |
| Pedals | N/A |
| Rear Derailleur | Shimano Dura-Ace 9150 Di2 |
|---|---|
| Front Derailleur | Shimano Dura-Ace 9150 Di2 |
| Crank | Shimano Dura-Ace 9100 34x50t |
| Shifters | Shimano R9170 |
| Cassette | Shimano Dura-Ace 9100 11-28t 11-Speed |
| Chain | Shimano HG 901 |
| Brakes | Shimano R9170 Hydraulic Disc Type: Hydraulic Disc |
| Rims | DT Swiss ERC 1400 Spline DB 47 Carbon CL TL |
|---|---|
| Front Hub | Orbea Road 12x100mm, thread M12xP1.5 |
| Rear Hub | Orbea Road 12x142mm, thread M12xP1.5 |
| Tires | Hutchinson Fusion 5 All Season TLR 700x25 |
