2025 Orange
Phase AD3 Factory

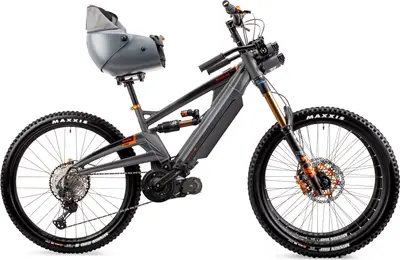

A 27.5″ aluminum frame full suspension enduro e-bike with high-end components.
Manufacturer Price
£15,000($18,994)| Frame | Aluminum |
|---|---|
| Suspension | Full, 170 / 180mm |
| Fork | Fox Factory Float 38 |
| Shock | Fox Float X2 Factory |
| Wheels | 27.5″ Aluminum |
| Drivetrain | 1 × 12 |
| Groupset | XT |
| Motor | mid-drive |
| Battery | 624Wh |
| Brakes | Hydraulic Disc |
For This Bike
5'2" – 5'8"
5'6" – 5'11"
5'10" – 6'3"
6'1" – 6'7"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Oct 2023 · Seb Stott
The Phase EVO uses Bosch's new Performance Line SX motor, and is claimed to weigh only 43 pounds.
| Frame | 6061-T6 Monocoque UK Formed Custom Aluminium Tubing. Wheel Size: 27.5. Rear wheel travel: 170. Color: Gloss Charcoal Grey |
|---|---|
| Fork | Fox Factory 38 Float 180mm 27.5 Travel: 180mm Spring Type: Air |
| Shock | Fox Float X2 Factory 230x65 Travel: 170mm |
| Bottom Bracket | CYC DU Integrated |
| Headset | Cane Creek 49mm for Tapered Steerer |
| Stem | Burgtec Enduro Black 42.5mm |
| Handlebar | Burgtec RideWide Enduro 800mm |
| Saddle | Tessier Bucket Seat |
| Seatpost | Strange Post 400 30.9 Type: Rigid |
| Grips | Strange Grappler Lock-On |
| Rear Derailleur | Shimano XT 12spd |
|---|---|
| Crank | CYC E-MTB 165mm 32t |
| Shifters | Shimano XT 12spd |
| Cassette | Shimano XT 10-51T 12spd |
| Chain | SRAM GX Eagle |
| Brakes | Shimano Saint 203/203 Type: Hydraulic Disc |
| Rims | Stans Flow Mk4 + Hope Pro 5 (Black) |
|---|---|
| Tires | Maxxis Minion DHF 2.5 3c EXO+ / DHR II 2.4 3c EXO+ 27.5 |
| Motor | CYC X1 Pro Gen 4 5000W |
|---|---|
| Battery | CYC B-series B-52L 624Wh |
Last updated June 22
