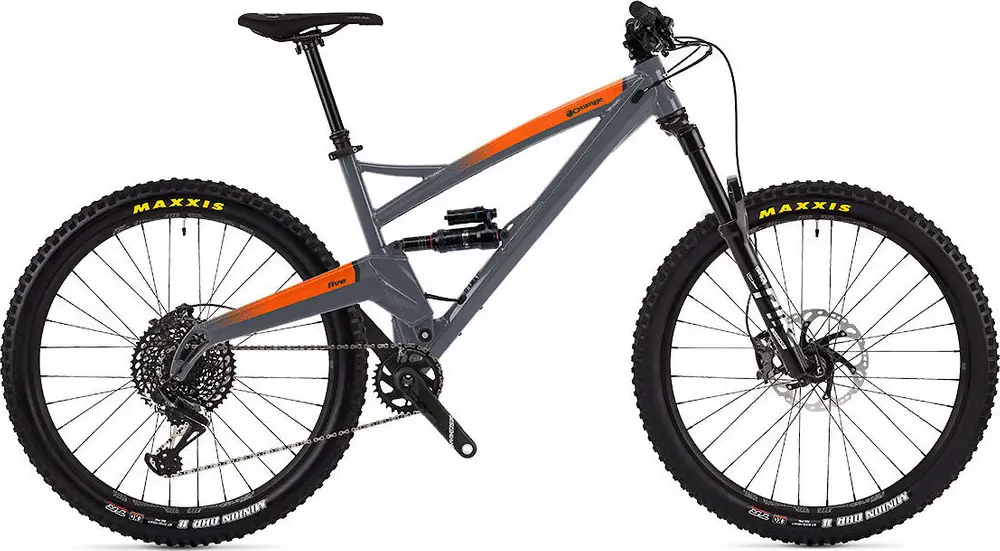

2020 Orange
Five RS
A 27.5″ aluminum frame full suspension trail bike with high-end components and mechanical disc brakes.
Compare the full range
| Frame | Aluminum |
|---|---|
| Suspension | Full, 145 / 150mm |
| Fork | RockShox Pike Ultimate |
| Shock | RockShox Super Deluxe Ultimate |
| Wheels | 27.5″ Aluminum |
| Drivetrain | 1 × 12 |
| Groupset | X01 Eagle, GX Eagle |
| Brakes | Mechanical Disc |
| Seatpost | Dropper |
For This Bike
Jun 2020 · Andi Sykes
Andi tackles the trails on Orange's latest creation, the short travel, progressively angled 2021 Orange Five Evo LE review here.
Apr 2019 · Jamie Darlow
The Orange Five certainly isn’t new, but the Halifax brand has made significant changes for 2020 that pep up this trail riding classic.
More progressive suspension and a host of geometry and size changes make the Five more fun and capable. Looks better too with improved cable routing and tubing shapes.
Expensive for an alloy bike, and pedal kickback can be an issue on really rough terrain.
Mar 2019 · Alex Evans
Orange has revamped its ever-popular Five to have more travel and gnarlier intentions
Mar 2019 · Finlay Anderson
The Orange Five has always been an iconic British made trail bike. Its newest itteration has undergone a number of changes. Read on to find out more!
| Frame | Aluminum |
|---|---|
| Fork | RockShox Pike Ultimate, 46mm offset, 110x15mm Boost thru-axle, Option: FOX 36 FLOAT Factory Travel: 150mm Spring Type: Air |
| Shock | RockShox Super Deluxe Ultimate, 210mm x 55mm, Option: FOX DPX2 FLOAT Factory Travel: 145mm Spring Type: Air |
| Bottom Bracket | SRAM DUB, 73mm |
| Headset | Cane Creek, ZS49/28.6 upper, EC49/40 lower, for tapered steerer, Option: Hope Tech |
| Stem | Hope, 35mm bore, 35mm length, Option: Burgtec, 35mm |
| Handlebar | Renthal Fatbar, 35mm bore, 800mm width, Option: Renthal Carbon Fatbar, 800mm width |
| Saddle | SDG Radar, steel rails, black/black |
| Seatpost | FOX Transfer Performance Elite dropper, 150mm drop, Option: FOX Transfer Factory dropper, 150mm or 170mm drop Type: Dropper |
| Pedals | None, Option: Burgtec MK4 Composite |
| Grips | Strange 130, single lock-on, black |
| Rear Derailleur | SRAM X01 Eagle, 12-speed |
|---|---|
| Front Derailleur | N/A |
| Crank | Truvativ Descendant Carbon Eagle DUB |
| Shifters | SRAM GX Eagle, 12-speed |
| Cassette | SRAM Eagle XG1275, 12-speed, 10-50 tooth |
| Chain | SRAM GX Eagle, 12-speed |
| Chain Guide | None, Option: MRP 1x |
| Brakes | Shimano XT Trail, 203mm front rotor, 180mm rear rotor, Option: Hope Tech 3 E4, 203mm front rotor, 180mm rear rotor Type: Mechanical Disc |
| Brake Levers | Shimano XT Trail, Option: Hope Tech 3 E4 |
| Rims | e*thirteen TRS, 30mm internal width, Option: Stan's NoTubes Flow MK3 |
|---|---|
| Front Hub | Hope Tech Pro 4, 110x15mm Boost front, 148x12mm Boost rear |
| Rear Hub | Hope Tech Pro 4, 110x15mm Boost front, 148x12mm Boost rear |
| Tires | Front: Maxxis Minion DHF, 3C, EXO, TR, 27.5" x 2.5", Rear: Maxxis Minion DHR II, EXO, TR, 27.5" x 2.4" |
