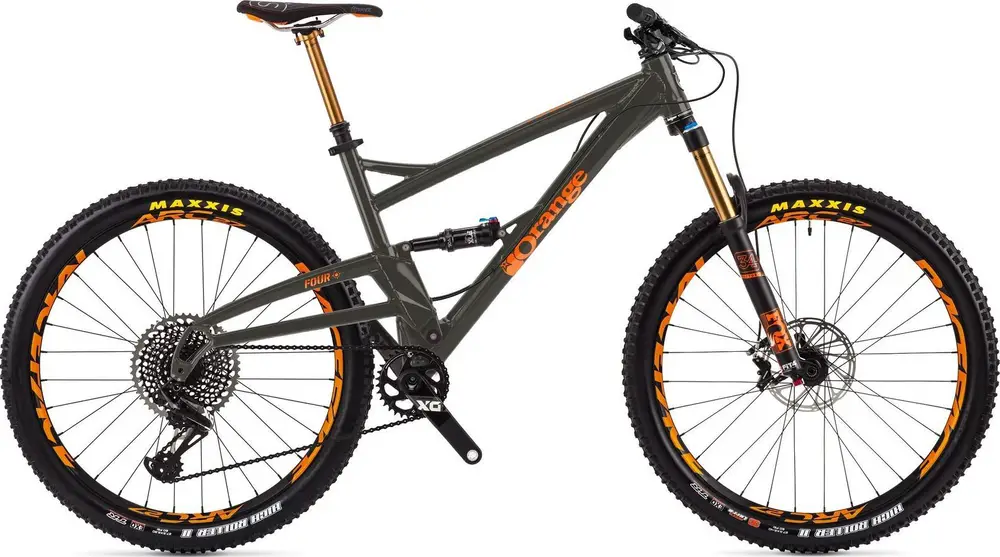

Today’s Deals2018 Orange
Four Factory
A 27.5″ aluminum frame full suspension trail bike with ultra high-end components and mechanical disc brakes.
Compare the full range
| Frame | Aluminum |
|---|---|
| Suspension | Full, 120 / 130mm |
| Fork | Fox Factory Float 34 |
| Shock | Fox Float DPS Factory |
| Wheels | 27.5″ Aluminum |
| Drivetrain | 1 × 12 |
| Groupset | X01 Eagle |
| Brakes | Mechanical Disc |
| Seatpost | Dropper |
5'1" – 5'6"
5'4" – 5'9"
5'7" – 6'0"
5'10" – 6'3"
6'0" – 6'5"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Summary
The Orange Four trail bike is celebrated for its dynamic and playful trail feel, thanks to its refined single pivot suspension and intuitive handling. It's lighter than some carbon bikes, with improvements in frame construction and suspension progression enhancing its ride quality and efficiency. While it excels in fun and capability, some note the absence of a bottle cage mount and issues with the dropper post.
Refined single pivot suspension
Lighter than some carbon bikes
Intuitive handling and playful trail feel
Improved frame construction and suspension progression
Top-quality components
No bottle cage mount
KS dropper post prone to sticking
Thinner material is inherently more flexible
The intuitive interaction between pedal pressure stiffening the suspension and steepening the angles and conversely relaxing your drive and the bike, gives it a deliciously dynamic and infectiously playful trail feel.
BikeRadarWith a revised frame construction, Orange’s new Four is light, fast and a bundle of fun.
MBRThe Orange Four is sometimes overshadowed by the Five, but Andi finds that the shorter travel bike is a lot more capable than you may think
Singletrack WorldFeedback?
View all reviews
Sep 2017 · Andi Sykes
The Orange Four is sometimes overshadowed by the Five, but Andi finds that the shorter travel bike is a lot more capable than you may think
Mar 2017 · Paul Burwell
With a revised frame construction, the new Orange Four is light, fast and a bundle of fun. Short-travel trail bike with 130mm travel front, 120mm rear.
Pedals better, more room for a chain device, lighter weight and improved tyre clearance.
No bottle cage mount, KS dropper post prone to sticking.
Mar 2017 · Guy Kesteven
Orange came under new management from its manufacturing partner recently and that’s seen the introduction of smarter, lighter frames and whole new bikes by the hardcore brand, including this Four Factory.. .
Oct 2016 · Isac Paddock
The new Orange Four was released earlier this season upon the world, a shorter travel bike than the iconic Orange Five, it claims an amazingly capable feel from just 120 mm of travel. The generous choice of colours, revolutionised geometry and good old British manufacturing make it look viable on paper, but how would it […]
| Frame | Aluminum |
|---|---|
| Fork | FOX Factory 34 Travel: 130mm Spring Type: Air |
| Shock | FOX Float DPS Factory, 184mm x 44mm Travel: 120mm |
| Bottom Bracket | SRAM GXP Team, 73mm |
| Headset | Hope, 49mm, black or orange |
| Stem | Race Face Turbine R, 50mm length, 35mm clamp |
| Handlebar | Race Face Next R, carbon, stealth, 800mm width |
| Saddle | SDG Fly MTN, chromoly rail, black/orange |
| Seatpost | FOX Factory Transfer, 150mm drop Type: Dropper |
| Pedals | None included |
| Grips | Strange 130, single lock-on, black |
| Rear Derailleur | SRAM X01 Eagle |
|---|---|
| Front Derailleur | N/A |
| Crank | SRAM X01 Eagle, carbon |
| Shifters | SRAM X01 Eagle, 12-speed |
| Cassette | SRAM CS XG-1295 Eagle, 10 x 50 tooth, 12-speed |
| Chain | SRAM X01 Eagle, silver |
| Chain Guide | None included |
| Brakes | Hope Tech 3 E4, black or orange, with 203mm front/180mm rear rotors Type: Mechanical Disc |
| Brake Levers | Hope Tech 3 E4 |
| Rims | Race Face Arc 27, grey |
|---|---|
| Front Hub | Hope Pro 4, black or orange |
| Rear Hub | Hope Pro 4, black or orange |
| Tires | Front: Maxxis High Roller II 3c EXO TR, 2.4", Rear: Maxxis High Roller II EXO TR 2, 2.3" |
