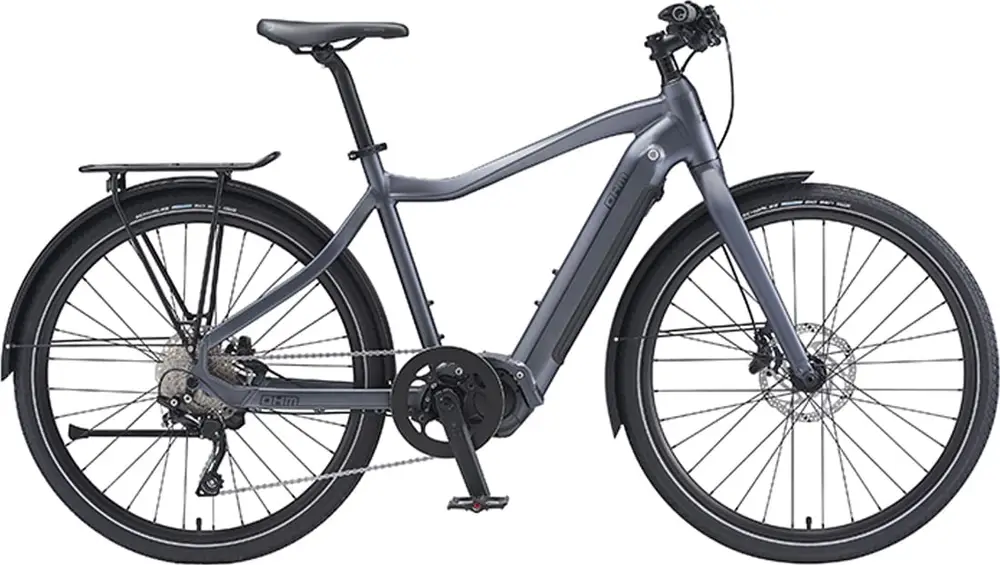

A 650b aluminum frame commuter e-bike with upper mid-range components and shimano deore hydraulic disc brakes.
Manufacturer Price
$2,899| Weight | 49.4 lbs |
|---|---|
| Frame | Aluminum |
| Suspension | Rigid |
| Fork | Aluminum |
| Wheels | 650b Aluminum |
| Drivetrain | 1 × 10 |
| Groupset | Deore |
| Motor | Shimano 250W 60Nm mid-drive |
| Battery | 508Wh |
| Brakes | Shimano Deore Hydraulic Disc |
3'11" +
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Nov 2019
Price: $2899.00 | Model Year: 2020 A feature complete commuter ebike from a reputable company that uses great brand-name components, everything is here from rear rack, fenders, battery integrated lights, and ergonomic grips, OHM has been around since 2005 and stands behind their products with shipping and assembly across North America and a 2 year comprehensive warranty. Mechanically it uses a high-end Shimano Deore Shadow + Clutch derailleur, 11-36 tooth cassette, 46 tooth chain ring, for stopping power, you get an super quality set of 180mm rotor hydraulic disc brakes with quad piston calipers, something usually reserved for fancier mountain bikes. A feature complete commuter ebike from a reputable company that uses great brand-name components, everything is here from rear rack, fenders, battery integrated lights, and ergonomic grips, OHM has been around since 2005 and stands behind their products with shipping and assembly across North America and a 2 year comprehensive warranty.
A feature complete commuter ebike from a reputable company that uses great brand-name components, everything is here from rear rack, fenders, battery integrated lights, and ergonomic grips, OHM has been around since 2005 and stands behind their products with shipping and assembly across North America and a 2 year comprehensive warranty
Mechanically it uses a high-end Shimano Deore Shadow + Clutch derailleur, 11-36 tooth cassette, 46 tooth chain ring, for stopping power, you get an super quality set of 180mm rotor hydraulic disc brakes with quad piston calipers, something usually reserved for fancier mountain bikes
Electrically powered by a Shimano E6100 mid-drive motor, 250-500 watts of power, variable 50nm-60nm of torque, 20mph top speed, torque based pedal assist, the battery is made of LG cells and is 36v 14ah, display is compact, protected, and can be bluetooth paired with two different apps
Charging requires a dongle to charge the battery directly, or you can snag the crank arms when charging on the bike, some may find the display is hard to see and reach, this one doesn’t come with a front suspension fork or battery integrated lights like the OHM Quest, no shift detection on the E6100 motor
| Frame | ADVANCE™ Hydroformed Aluminum Alloy |
|---|---|
| Fork | Rigid Bladed Hydroformed Aluminum Alloy, 100mm Hub Spacing, 15mm Thru-Axle with Quick Release |
| Headset | FSA No.55, Sealed, Tapered 1-1/8"- 1-1/2" |
| Stem | Promax DA230 Aluminum Alloy, 70mm / 80mm / 90 mm / 100mm Length, 17° Rise, 31.8mm Clamp Diameter with Custom Light Mount, Four 10mm Spacers, One 5mm Spacer |
| Handlebar | MJ, Aluminum Alloy, Low-Rise, 680mm / 720mm Length, 50mm Rise |
| Saddle | OHM Branded Ergon ST10 Gel, Chromoly Rails |
| Seatpost | MJ, Aluminum Alloy, 25mm Offset, Single Bolt Clamp Type: Rigid |
| Pedals | Wellgo MG6 Magnesium Platform with Adjustable Pins |
| Grips | Ergon GP1, Ergonomic Rubber, Single-Density, Locking, 130mm / 150mm Length |
| Crank | OHM Branded Chainway Custom Specced Crank Arms, Aluminum Alloy, 170mm / 175mm Length, 46 Narrow-Wide Tooth Chainring with Alloy Chain Guard, Shimano Hollowtech II Bottom Bracket, Hollow Spindle |
|---|---|
| Shifters | Shimano Deore Triggers on Right (Two-Way High Lever, Three-Shift Low Lever) |
| Cassette | 10 Speed 1x10 Shimano Deore with One-Way Clutch, 11-36 Tooth Cassette |
| Brakes | Shimano Deore Hydraulic Disc with 180mm Rotors, Dual Piston Calipers, Shimano Two-Finger Levers with Adjust Reach Type: Shimano Deore Hydraulic Disc |
| Rims | Alexrims FR30, Aluminum Alloy, Double Wall, 32 Hole, 25mm Width, Aluminum Eyelets |
|---|---|
| Spokes | Sha-Dar, Stainless Steel, 14 Gauge, Black with Brass Nipples |
| Tires | Schwalbe Big Ben, 27.5" x 2.0" (50-584) |
| Motor | Weight: 6.17 lbs (2.79 kg), Brand: Shimano E6100, Type: Mid-Mounted Geared Motor, Nominal Output: 250 watts, Peak Output: 500 watts, Torque: 60 Newton meters (50Nm in Comfort Mode, 60Nm in Sportive Mode) |
|---|---|
| Battery | Weight: 5.9 lbs (2.67 kg), Brand: LG Brand, 18650 Format, 3500Ma LGMJ1 Cells, Voltage: 36.3 volts, Amp Hours: 14 ah, Watt Hours: 508.2 wh, Chemistry: Lithium-ion |
| Display | Shimano SC-E7000, Fixed, Grayscale LCD, Backlit, Adjustable Brightness (Hold Circle Button to Enter Settings, Use Left-Mounted SW-E7000-L Button Pad to Navigate: Clear, Clock, Light, Beep, Unit, Language, Font Color, Adjust, Shift Timing, RD Protection Reset, Exit) |
