Front: Funn Hydro-Mechanical 160mm, Rear: Funn Hydro-Mechanical 160mm

NS Gravel+ full carbon fork, 15mm dropouts, 1.5 tapered steerer tube, NS thru axle

NS AL6061-T6 custom formed and butted tubes, tapered integrated headtube, 142x12mm dropouts

GW integrated tapered IS42/IS52, sealed bearings

Alex Draw 2.1P asymmetrical, 29” 32h, tubeless ready

RAG+ Stem 31.8 S:80mm, M:90mm, L:100mm, XL:110mm, angle, - 8°

RAG is short for Road And Gravel and the 'plus' is there because you can run it with standard 700C road tires, 700C gravel tires (up to 45C) or even 27.5” wheels with tires as big as 2.2”! Perfect for anyone who wants a REAL all round drop bar bike. Use it for bike packing, gravel grinding, amateur CX racing or commuting. If you mount 28mm road tires you can hit the tarmac and easily keep up with your roadie buddies. It features the latest technologies including a proper 1X drivetrain with a wide range cassette, disc brakes and thru-axles. MAIN FEATURES:, Tough and light alloy frame with biger ht in L&xl size, Full carbon fibre fork, Tubeless compatible wheels, Thru axles front and rear, SRAM APEX 1X dERAILLEUR, Pro 4.0 Hydro-mechanical disc brakes, WTB RIDDLER 45C tires, Clearance for 650B tires up to 2.2"

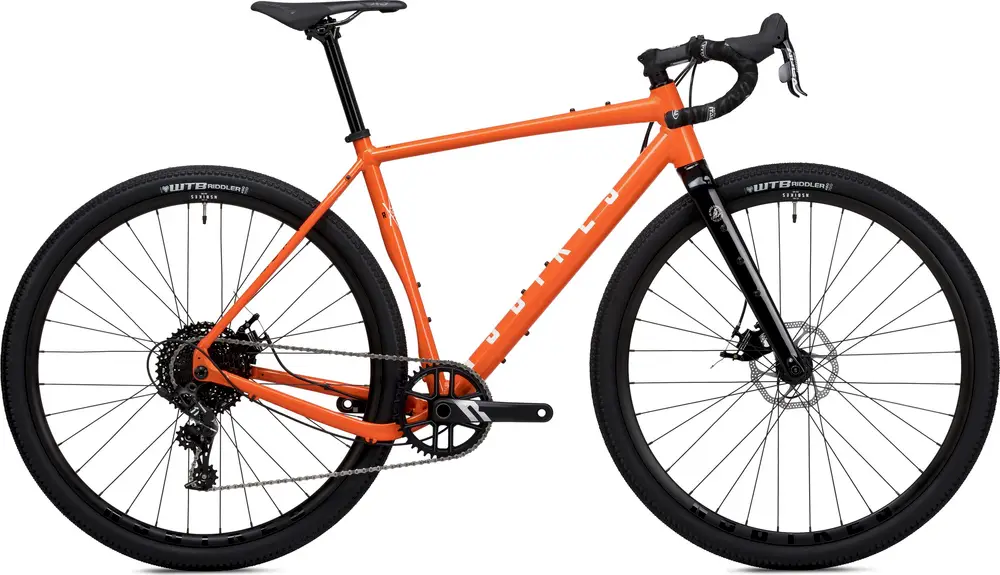

NS RAG+ 2 Orange

An aluminum frame gravel bike with upper mid-range components and hydraulic disc brakes.

Frame	Aluminum
Suspension	Rigid
Fork	Carbon
Wheels	700c Aluminum
Drivetrain	1 × 11
Groupset	Apex
Brakes	Hydraulic Disc

Frame	NS AL6061-T6 custom formed and butted tubes, tapered integrated headtube, 142x12mm dropouts BB Standard: BB86/BB92, 86.5mm, Press Fit Tire Clearance: 2.2"
Fork	NS Gravel+ full carbon fork, 15mm dropouts, 1.5 tapered steerer tube, NS thru axle
Bottom Bracket	PF 86.5
Headset	GW integrated tapered IS42/IS52, sealed bearings
Stem	RAG+ Stem 31.8 S:80mm, M:90mm, L:100mm, XL:110mm, angle, - 8°
Handlebar	NS Flare 31.8 420mm (S,M), 440 (L, XL)mm
Saddle	Selle Italia X3
Seatpost	Kalloy 27.2mm Type: Rigid
Pedals	/
Grips	Selle Italia SMOOTAPE Gran Fondo

Rear Derailleur	SRAM Apex, 11spd
Crank	Rondo S: 170mm, M: 172.5mm, L: 175mm 42t
Shifters	SRAM Apex, 11spd
Cassette	SunRace CSMS7 11-42t
Chain	SRAM, 11 spd
Brakes	Front: Funn Hydro-Mechanical 160mm, Rear: Funn Hydro-Mechanical 160mm Type: Hydraulic Disc

Rims	Alex Draw 2.1P asymmetrical, 29” 32h, tubeless ready
Spokes	Spokes w/14mm nipples
Front Hub	NS Bikes 100x15mm (sealed bearings)
Rear Hub	NS Bikes 142x12mm (sealed bearings)
Tires	WTB Riddler 700x45c

2025 NSRAG+ 2 Orange

2025 NS
RAG+ 2 Orange
