SRAM Apex hydraulic disc, 160mm rear &amp; front

NS Gravel+ full carbon fork, 15mm dropouts, NS thru axle

NS AL6061-T6 custom formed and butted tubes, tapered integrated headtube, 142x12mm dropouts

Alex Draw 2.1P Asymmetrical, 32h, tubeless compatible

RAG+ Stem 31.8 S:80mm, M:90mm, L:100mm, XL:110mm, angle, - 8°

RAG is short for Road And Gravel and the 'plus' is there because you can run it with standard 700C road tires, 700C gravel tires (up to 45C) or even 27.5” wheels with tires as big as 2.2”! Perfect for anyone who wants a REAL all round drop bar bike. Use it for bike packing, gravel grinding, amateur CX racing or commuting. If you mount 28mm road tires you can hit the tarmac and easily keep up with your roadie buddies. It features the latest technologies including a proper 1X drivetrain with a wide range cassette, disc brakes and thru-axles. NEW FOR 2022:, revised geometry (longer head, tubes, slacker head tube angle), revised frame tubes, shorter stems 70 / 80 / 90 / 100mm, FAT VITTORIA Mezcal III 44c TIRES, flip flop stem, MAIN FEATURES:, Tough and light alloy frame with bigGer ht in L&xl size, Full carbon fibre fork, Tubeless compatible wheels, Thru axles front and rear, SRAM APEX 1X DERAILLEUR, SRAM APEX Hydraulic brakes, VITTORIA Mezcal III 44c TLR tires, Clearance for 650B tires up to 2.2"

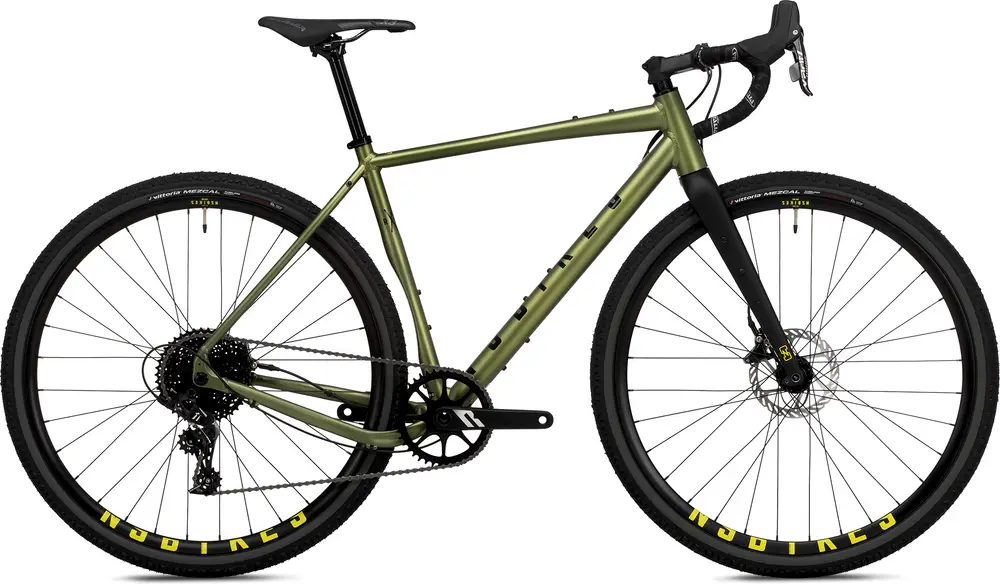

NS Rag+ 1

An aluminum frame gravel bike with mid-range components and sram apex hydraulic disc brakes.

Frame	Aluminum
Suspension	Rigid
Fork	Carbon
Wheels	700c Aluminum
Drivetrain	1 × 11
Groupset	Apex
Brakes	SRAM Apex Hydraulic Disc

Frame	NS AL6061-T6 custom formed and butted tubes, tapered integrated headtube, 142x12mm dropouts BB Standard: BB86/BB92, 86mm, Press Fit Tire Clearance: 2.2"
Fork	NS Gravel+ full carbon fork, 15mm dropouts, NS thru axle
Bottom Bracket	Shimano PF 86,5
Headset	GW integrated tapered IS42/52, sealed
Stem	RAG+ Stem 31.8 S:80mm, M:90mm, L:100mm, XL:110mm, angle, - 8°
Handlebar	NS Flare 31.8, 420mm, 440mm, 460mm
Saddle	Selle Italia X3
Seatpost	Kalloy 27.2 Type: Rigid

Rear Derailleur	SRAM Apex type 2.1, long cage, 11spd
Crank	Rondo S:170mm, M:172.5mm, L:175mm 42t
Shifters	SRAM Apex 11spd
Cassette	Sun Race CSMS7 11-42t
Chain	SRAM, 11 spd
Brakes	SRAM Apex hydraulic disc, 160mm rear & front Type: SRAM Apex Hydraulic Disc

Rims	Alex Draw 2.1P Asymmetrical, 32h, tubeless compatible
Spokes	butted 2.0-1.5-2.0 w/ 14mm nipples
Front Hub	NS Bikes 100x15mm (sealed bearings)
Rear Hub	NS Bikes 142x12mm (sealed bearings)
Tires	Vittoria Mezcal III 700x45c

2025 NSRag+ 1

2025 NS
Rag+ 1
