2025 NS

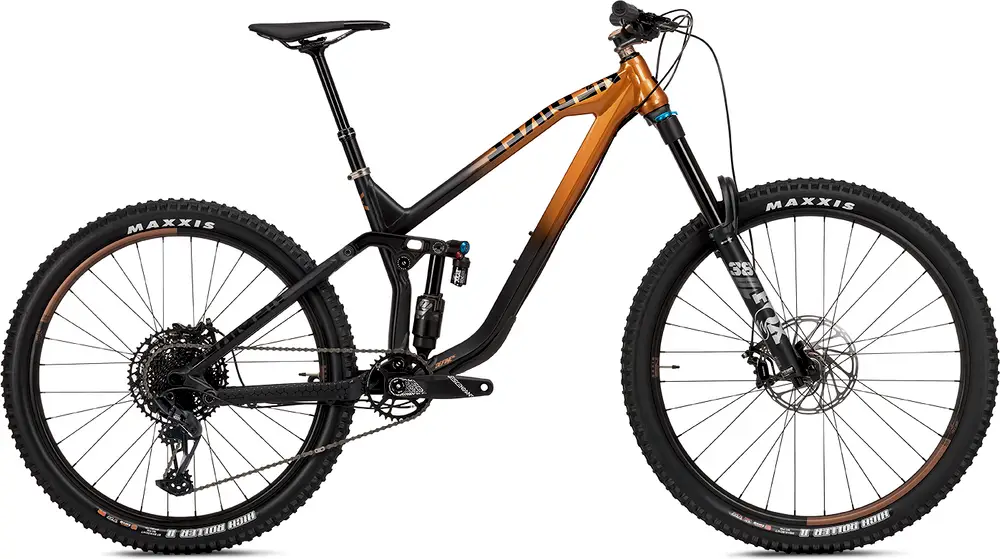

Define AL 170 1

A 29″ / 27.5″ aluminum frame full suspension enduro bike with high-end components.
Compare the full range

FrameAluminum
SuspensionFull, 170 / 180mm
ForkFox Performance Float 38
ShockFox Float X2 Performance
Wheels29″ / 27.5″ Aluminum
Drivetrain1 × 12
GroupsetGX Eagle, NX Eagle
BrakesSRAM Guide RE Hydraulic Disc
SeatpostDropper
View on nsbikes.comLearn about NS
Add to Comparison
Shop with a Gear Advisor
Where to Buy
Similar Bikes
Top Comparison

View more similar bikes →

Insights
Ride Feel

Based on frame geometry and build specs.

Terrain
easyextreme
Handling
nimblestable
Define AL 170 1
Other Enduro bikes
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

25 mph

Define AL 170 1

26 mph

Similar Bikes

Highest gear

(descending)

Sizing
SM

5'2" – 5'7"

MD

5'6" – 5'11"

LG

5'9" – 6'2"

🐐 Estimated

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Geometry
Specs
Build
Frame

NS Define AL w/ 170mm travel, AL6061-T6 + AL6066-T6, custom hydroformed tubes, semi internal cable routing

BB Standard: BSA, 73mm, Threaded

Fork

Fox Float 38 Performance Grip, 180mm travel, 3 Pos Micro Adj Lever, 110x15mm Boost, 1.5T, 44mm offset

Travel: 180mm

Spring Type: Air

Shock

Fox Float X2 Performance w/ LSC, LSR Trunnion 225x70mm

Travel: 170mm

Bottom Bracket

SRAM DUB BSA 73mm

Headset

GW integrated tapered IS42/IS52, sealed bearings

Stem

NS Quantum Lite 35 , 45mm

Handlebar

NS Bar 35, 800mm, 20mm rise

Saddle

WTB Volt Medium Cromoly

Seatpost

Race Face Aeffect R S-125, M-150, L-170mm, 31,6mm

Type: Dropper

Pedals

/

Grips

NS Hold Fast

Groupset
Rear Derailleur

SRAM GX Eagle type 3 12spd

Crank

Truvativ Descendant 6k DUB 170mm 34t

Shifters

SRAM NX EAGLE, 12spd

Cassette

SRAM PG-1210,12spd 11-50t

Chain

SRAM, 12 spd

Chain Guide

/

Brakes

Front: SRAM Guide RE, 200mm, Rear: SRAM Guide RE, 200mm

Type: SRAM Guide RE Hydraulic Disc

Wheels
Rims

Octane One Solar 29” front, Octane One Solar 27.5” rear, 32h, tubeless ready

Spokes

Spokes w/14mm nipples

Front Hub

NS Rotary 15 Boost 110x15mm disc (sealed bearings)

Rear Hub

NS Rotary Cassette 148x12mm Boost (sealed bearings)

Tires

Maxxis High Roller II 29x2.5" WT TR EXO / Maxxis High Roller II 27.5x2.4" TR DH
