Today’s Deals2025 NS

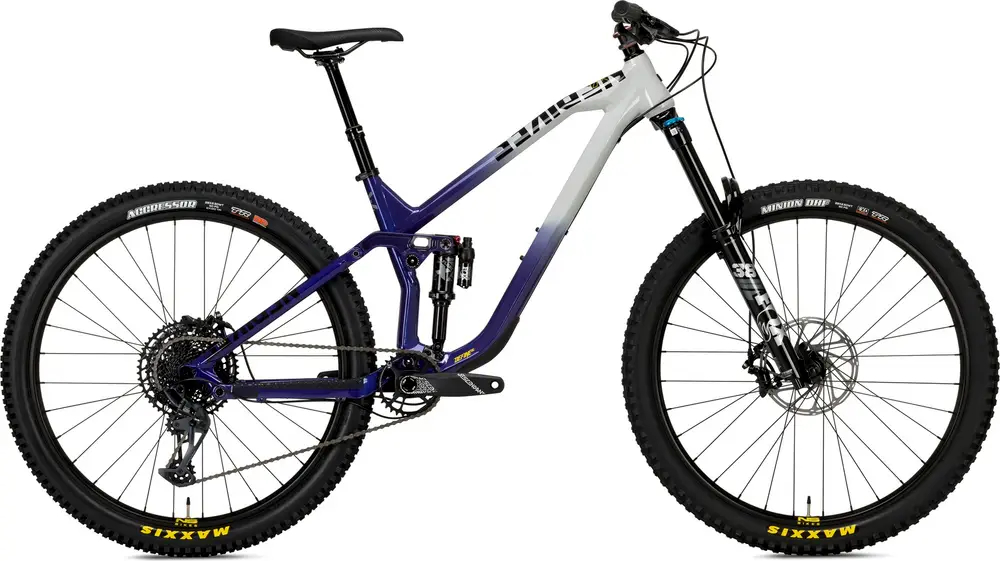

Define AL 155 1
A 29″ aluminum frame full suspension enduro bike with high-end components.
Compare the full range
| Frame | Aluminum |
|---|---|
| Suspension | Full, 155 / 170mm |
| Fork | Fox Performance Float 36 |
| Shock | Fox Float DPX2 Performance |
| Wheels | 29″ Aluminum |
| Drivetrain | 1 × 12 |
| Groupset | GX Eagle, NX Eagle |
| Brakes | SRAM Guide RE Hydraulic Disc |
| Seatpost | Dropper |
5'2" – 5'7"
5'6" – 5'11"
5'9" – 6'2"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
| Frame | NS Define AL w/ 155mm travel BB Standard: BSA, 73mm, Threaded |
|---|---|
| Fork | Fox Float 36 Performance Float Grip, 170mm travel, 3pos-Adj, 110x15mm Boost, 1.5" Tapered Travel: 170mm Spring Type: Air |
| Shock | Fox Performace Float X 2pos-Adj Trunnion, Evol LV, DPX2 205x65 Travel: 155mm |
| Bottom Bracket | SRAM DUB BSA 73mm |
| Headset | integrated tapered IS42/IS52, sealed bearings |
| Stem | NS Quantum Lite 35, 45mm |
| Handlebar | NS Bar 35, 800mm, 20mm rise |
| Saddle | WTB Volt Medium Cromoly |
| Seatpost | Race Face Aeffect R | S: 125, M: 150, L: 170mm, 31,6mm Type: Dropper |
| Grips | NS Hold Fast |
| Rear Derailleur | SRAM GX Eagle, 12spd |
|---|---|
| Crank | Truvativ Descendant 6K DUB 170mm 32t |
| Shifters | SRAM NX EAGLE, 12spd |
| Cassette | SRAM PG-1210, 12spd, 11-50t |
| Chain | SRAM, 12 spd |
| Brakes | Front: SRAM Guide RE, 200mm, Rear: SRAM Guide RE, 180mm Type: SRAM Guide RE Hydraulic Disc |
| Rims | Octane One Solar 29”, tubeless compatible |
|---|---|
| Front Hub | NS Rotary 15 Boost 15x110 disc (sealed bearings) |
| Rear Hub | NS Rotary Cassette 148x12mm Boost (sealed bearings) |
| Tires | Front: Maxxis DHF EXO/TR 29x2.5" WT, Rear: Maxxis Aggressor EXO/DD/TR 29x2.5" WT |
