Today’s Deals2025 NS

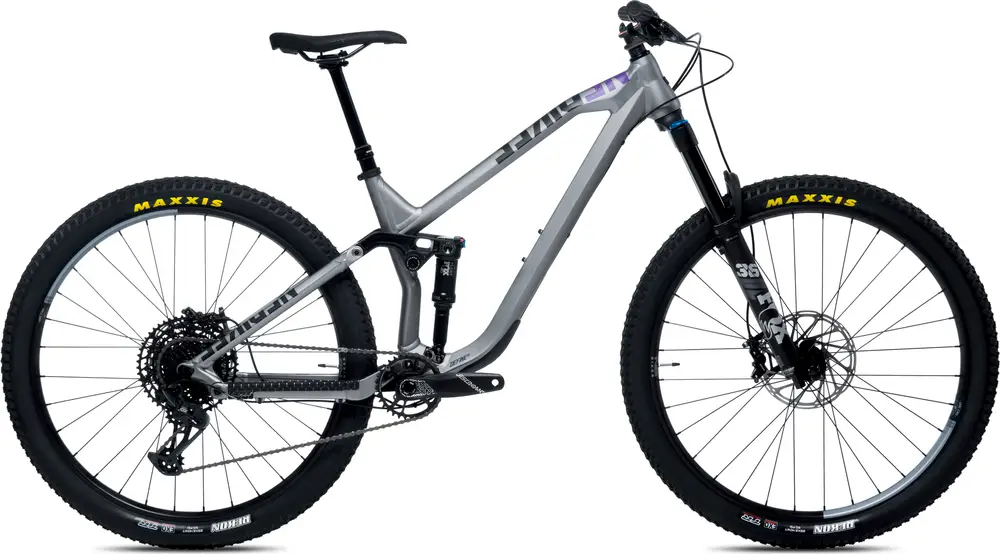

Define AL 140 1
A 29″ aluminum frame full suspension trail bike with high-end components.
Compare the full range
| Frame | Aluminum |
|---|---|
| Suspension | Full, 140 / 150mm |
| Fork | Fox Performance Float 36 |
| Shock | Fox Float X Performance |
| Wheels | 29″ Aluminum |
| Drivetrain | 1 × 12 |
| Groupset | GX Eagle, NX Eagle |
| Brakes | SRAM G2 R Hydraulic Disc |
| Seatpost | Dropper |
5'2" – 5'7"
5'6" – 5'11"
5'9" – 6'2"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
| Frame | NS Bikes Define AL w/ 140mm travel BB Standard: BSA, 73mm, Threaded |
|---|---|
| Fork | Fox Performance 36 Float Grip, 150mm travel, 3pos-Adj w/ Open Mode Adj, 15x110mm Boost, 1.5 tapered steerer tube, 44mm offset Travel: 150mm Spring Type: Air |
| Shock | Fox Performance Float 2pos-Adj Evol LV Trunnion 205x57.5 Travel: 140mm |
| Bottom Bracket | SRAM DUB BSA 73mm |
| Headset | GW integrated tapered IS42/IS52, sealed bearings |
| Stem | NS Bikes Quantum Lite 45mm, 35mm diameter |
| Handlebar | NS Bikes 35, 780mm, 20mm rise |
| Saddle | WTB Volt Medium Cromoly |
| Seatpost | Race Face Aeffect R 31,6mm diameter. S - 125mm, M - 150mm, L - 170mm Type: Dropper |
| Grips | NS Bikes Hold Fast supersoft |
| Rear Derailleur | SRAM GX Eagle |
|---|---|
| Crank | Truvativ Descendant 6K DUB 170 32t |
| Shifters | SRAM NX Eagle |
| Cassette | SRAM PG-1210, 11-50t, 12spd |
| Chain | SRAM SX Eagle |
| Brakes | Front: SRAM G2 R 4 piston, 200mm, Rear: SRAM G2 R 4 piston, 180mm Type: SRAM G2 R Hydraulic Disc |
| Rims | Octane One Solar 29”, 32h, tubeless ready |
|---|---|
| Front Hub | NS Bikes Rotary |
| Rear Hub | NS Bikes Rotary |
| Tires | Maxxis Rekon EXO TR 29x2.4WT |
First added June 16
Last updated May 30
