2025 NS

Define AL 130 2

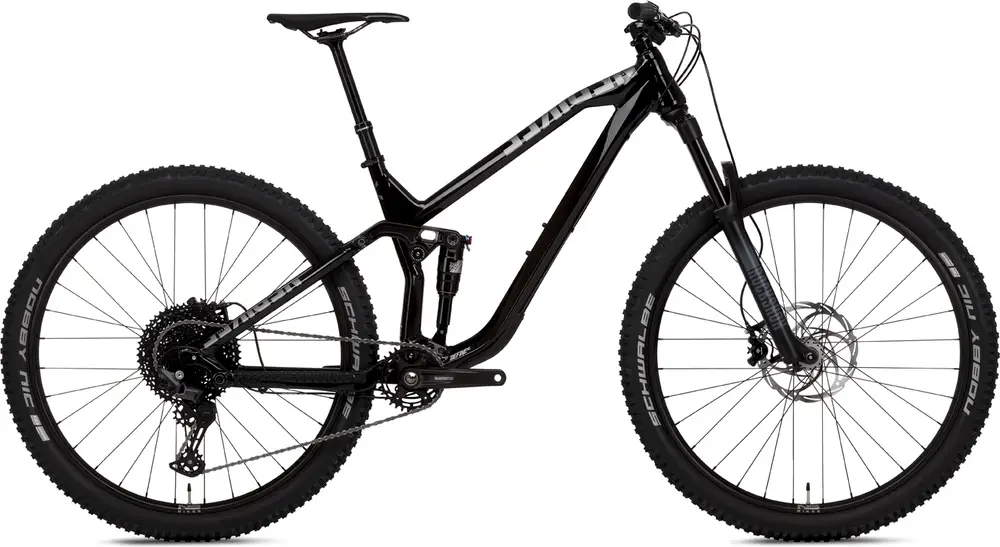

A 29″ aluminum frame full suspension trail bike with upper mid-range components.
Compare the full range

FrameAluminum
SuspensionFull, 130 / 140mm
ForkRockShox 35 Gold RL
ShockRockShox Deluxe Select+
Wheels29″ Aluminum
Drivetrain1 × 12
GroupsetDeore
BrakesShimano Deore Hydraulic Disc
View on nsbikes.comLearn about NS
Add to Comparison
Shop with a Gear Advisor
Where to Buy
Similar Bikes
Top Comparison

View more similar bikes →

Insights
Ride Feel

Based on frame geometry and build specs.

Terrain
easyextreme
Handling
nimblestable
Define AL 130 2
Other Trail bikes
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

25 mph

Define AL 130 2

26 mph

Similar Bikes

Highest gear

(descending)

Sizing
SM

5'2" – 5'7"

MD

5'6" – 5'11"

LG

5'9" – 6'2"

🐐 Estimated

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Geometry
Specs
Build
Frame

NS Define AL w/ 130mm travel, AL6061-T6 + AL6066-T6, custom hydroformed tubes, semi internal cable routing

BB Standard: BSA, 73mm, Threaded

Fork

Rock Shox 35 Gold RL 140mm travel, 15x110mm Boost, 1.5 tapered steerer tube

Travel: 140mm

Spring Type: Air

Shock

Rock Shox Deluxe Select+ Trunnion 185x55

Travel: 130mm

Bottom Bracket

Shimano BSA 73mm

Headset

NS custom tapered 1&1/8"-1.5" IS42/IS52 reach adjustable offset cups (+/-10mm), sealed bearing

Stem

NS Tone 35, 45mm

Handlebar

NS 35, 780mm wide, 20mm rise

Saddle

WTB Volt Medium Steel SL

Seatpost

Kind shox rage i internal S-125, M-150, L-170mm, 31,6mm

Type: Rigid

Pedals

/

Grips

NS Hold Fast

Groupset
Rear Derailleur

Shimano Deore M6100, 12spd

Crank

Shimano Deore FC-MT510-1 170mm 32t

Shifters

Shimano Deore M6100, 12spd

Cassette

Sunrace CSMZ800, 12spd 11-51T

Chain

Shimano, 12 spd

Chain Guide

/

Brakes

Front: Shimano MT410, 200mm, Rear: Shimano MT410, 180mm

Type: Shimano Deore Hydraulic Disc

Wheels
Rims

Octane One Solar 29” , 32h, tubeless compatible

Spokes

Spokes w/14mm nipples

Front Hub

NS Rotary 15 Boost 15x110 disc (sealed bearings)

Rear Hub

NS Rotary Cassette 148x12mm Boost (sealed bearings)

Tires

Schwalbe Nobby Nic 29x2.35"
