Today’s Deals2024 NS

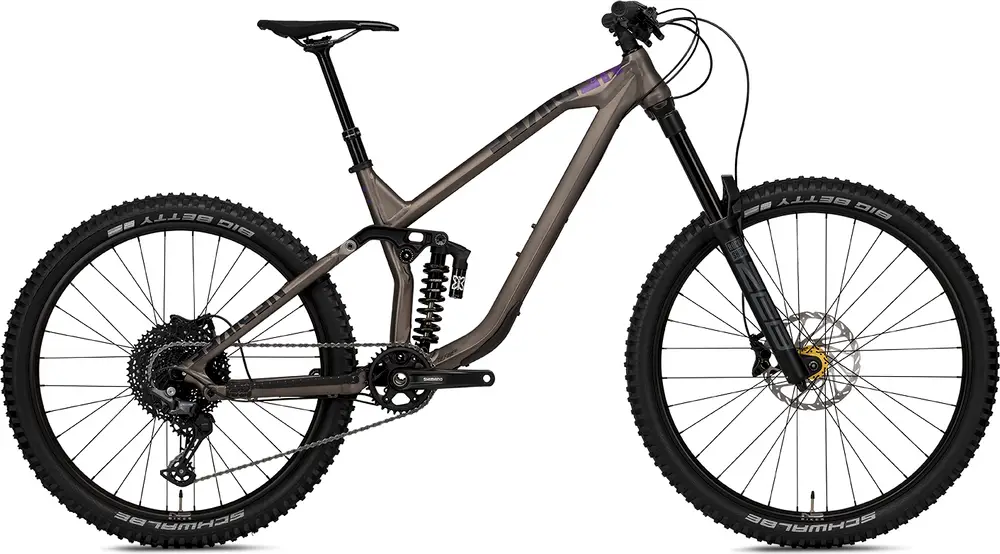

Define AL 170 2
A 29″ / 27.5″ aluminum frame full suspension enduro bike with upper mid-range components and shimano mechanical disc brakes.
Compare the full range
| Frame | Aluminum |
|---|---|
| Suspension | Full, 170 / 180mm |
| Fork | RockShox ZEB |
| Shock | Marzocchi Bomber |
| Wheels | 29″ / 27.5″ Aluminum |
| Drivetrain | 1 × 12 |
| Groupset | Deore |
| Brakes | Shimano Mechanical Disc |
| Seatpost | Dropper |
5'2" – 5'7"
5'6" – 5'11"
5'9" – 6'2"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Aug 2021 · Paul Burwell
NS Bikes Define AL 170 is a big-hitting aluminium enduro bike with 180mm front and 170mm rear travelMullet wheels mix a 29in front and 27.5in rear.
Modern geometry and sizing. Excellent suspension components and tyres. Recessed cabling looks sleek but without the hassle of proper internal routing.
Rides like a shorter-travel bike.
Apr 2021 · NS Bikes
We selfishly made the Define 170 for the riding we most enjoy. It is perfect for big jumps and severe terrain, and it is happy on the uphills, too. It is the most aggressive bike in the Define range, but one that is still fun to ride everywhere. Enduro, freeride, bike park ripper, call it what you like – at NS, a company of riders, we have fallen in love with this beast.
| Frame | NS Define AL w/ 170mm travel, AL6061-T6 + AL6066-T6, custom hydroformed tubes, semi internal cable routing BB Standard: BSA, 73mm, Threaded |
|---|---|
| Fork | RockShox ZEB 180mm travel, 110x15mm Boost, 1.5T, 44mm offset Travel: 180mm Spring Type: Air |
| Shock | Marzocchi Bomber CR Trunnion 225x70, S-400, M-450, L-500 lbs/in Travel: 170mm |
| Bottom Bracket | Shimano BSA 73mm |
| Headset | GW integrated tapered IS42/IS52, sealed bearings |
| Stem | NS Tone 35, 45mm |
| Handlebar | NS Bar 35, 800mm, 20mm rise |
| Saddle | Octane OneRocket2, CrMo hollow rails |
| Seatpost | X-Fusion Manic internal S Type: Dropper |
| Pedals | / |
| Grips | NS Hold Fast |
| Rear Derailleur | Shimano Deore M6100, 12spd |
|---|---|
| Crank | Shimano Deore FCMT510-1 170mm 34t |
| Shifters | Shimano Deore M6100, 12spd |
| Cassette | Sunrace CSMZ800, 12spd 11-51T |
| Chain | Shimano, 12 spd |
| Chain Guide | / |
| Brakes | Front: Shimano MT420, 200mm, Rear: Shimano MT420, 200mm Type: Shimano Mechanical Disc |
| Rims | Octane One Solar 29” front, Octane One Solar 27.5” rear, 32h, tubeless ready |
|---|---|
| Spokes | Spokes w/14mm nipples |
| Front Hub | NS 15 Boost 110x15mm disc (sealed bearings) |
| Rear Hub | NS 148x12mm Boost (sealed bearings) |
| Tires | Schwalbe Big Betty BikePark 29x2.4" / Schwalbe Big Betty BikePark 27.5x2.4" |
