Today’s Deals2024 NS

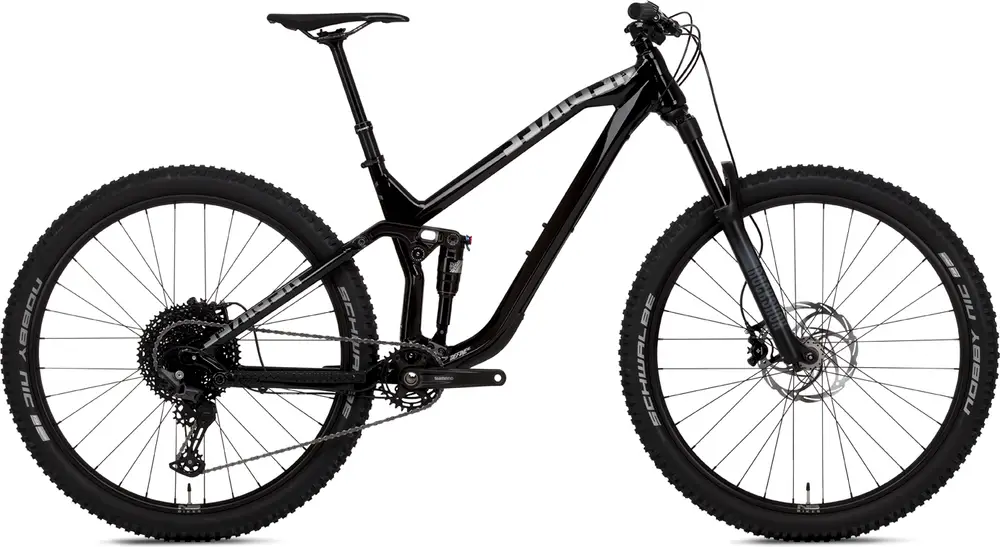

Define AL 130 2
A 29″ aluminum frame full suspension trail bike with upper mid-range components.
Compare the full range
| Frame | Aluminum |
|---|---|
| Suspension | Full, 130 / 140mm |
| Fork | RockShox 35 Gold RL |
| Shock | RockShox Deluxe Select+ |
| Wheels | 29″ Aluminum |
| Drivetrain | 1 × 12 |
| Groupset | Deore |
| Brakes | Shimano Deore Hydraulic Disc |
5'2" – 5'7"
5'6" – 5'11"
5'9" – 6'2"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Aug 2021 · Paul Burwell
NS Bikes Define AL 170 is a big-hitting aluminium enduro bike with 180mm front and 170mm rear travelMullet wheels mix a 29in front and 27.5in rear.
Modern geometry and sizing. Excellent suspension components and tyres. Recessed cabling looks sleek but without the hassle of proper internal routing.
Rides like a shorter-travel bike.
Apr 2021 · NS Bikes
We selfishly made the Define 170 for the riding we most enjoy. It is perfect for big jumps and severe terrain, and it is happy on the uphills, too. It is the most aggressive bike in the Define range, but one that is still fun to ride everywhere. Enduro, freeride, bike park ripper, call it what you like – at NS, a company of riders, we have fallen in love with this beast.
| Frame | NS Define AL w/ 130mm travel, AL6061-T6 + AL6066-T6, custom hydroformed tubes, semi internal cable routing BB Standard: BSA, 73mm, Threaded |
|---|---|
| Fork | Rock Shox 35 Gold RL 140mm travel, 15x110mm Boost, 1.5 tapered steerer tube Travel: 140mm Spring Type: Air |
| Shock | Rock Shox Deluxe Select+ Trunnion 185x55 Travel: 130mm |
| Bottom Bracket | Shimano BSA 73mm |
| Headset | NS custom tapered 1&1/8"-1.5" IS42/IS52 reach adjustable offset cups (+/-10mm), sealed bearing |
| Stem | NS Tone 35, 45mm |
| Handlebar | NS 35, 780mm wide, 20mm rise |
| Saddle | WTB Volt Medium Steel SL |
| Seatpost | Kind shox rage i internal S-125, M-150, L-170mm, 31,6mm Type: Rigid |
| Pedals | / |
| Grips | NS Hold Fast |
| Rear Derailleur | Shimano Deore M6100, 12spd |
|---|---|
| Crank | Shimano Deore FC-MT510-1 170mm 32t |
| Shifters | Shimano Deore M6100, 12spd |
| Cassette | Sunrace CSMZ800, 12spd 11-51T |
| Chain | Shimano, 12 spd |
| Chain Guide | / |
| Brakes | Front: Shimano MT410, 200mm, Rear: Shimano MT410, 180mm Type: Shimano Deore Hydraulic Disc |
| Rims | Octane One Solar 29” , 32h, tubeless compatible |
|---|---|
| Spokes | Spokes w/14mm nipples |
| Front Hub | NS Rotary 15 Boost 15x110 disc (sealed bearings) |
| Rear Hub | NS Rotary Cassette 148x12mm Boost (sealed bearings) |
| Tires | Schwalbe Nobby Nic 29x2.35" |
