Today’s Deals2024 NS
Define AL 130 1

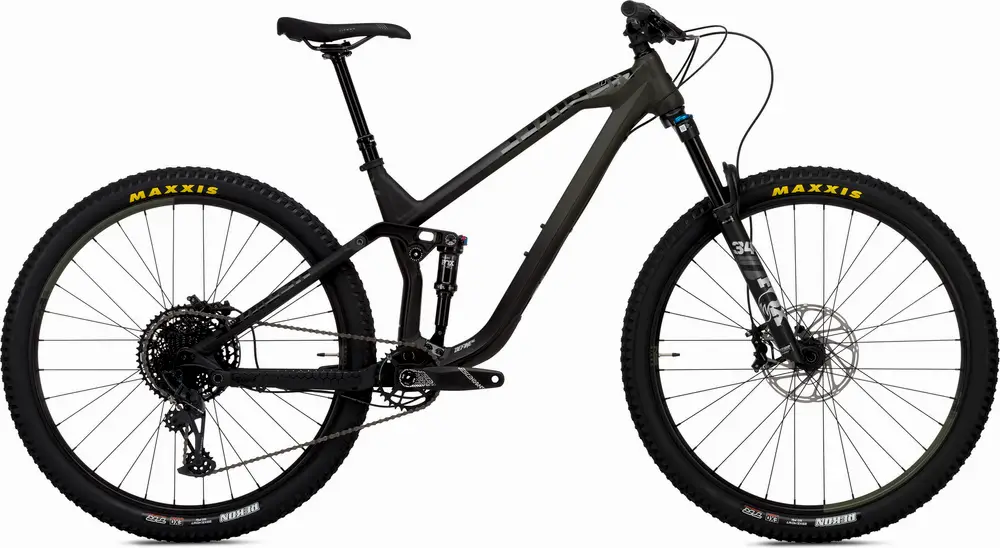

A 29″ aluminum frame full suspension trail bike with high-end components.
Compare the full range
| Frame | Aluminum |
|---|---|
| Suspension | Full, 130 / 140mm |
| Fork | Fox Performance Float 34 |
| Shock | Fox Float DPS Performance |
| Wheels | 29″ Aluminum |
| Drivetrain | 1 × 12 |
| Groupset | GX Eagle, NX Eagle |
| Brakes | SRAM G2 R Hydraulic Disc |
| Seatpost | Dropper |
5'2" – 5'7"
5'6" – 5'11"
5'9" – 6'2"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Aug 2021 · Paul Burwell
NS Bikes Define AL 170 is a big-hitting aluminium enduro bike with 180mm front and 170mm rear travelMullet wheels mix a 29in front and 27.5in rear.
Modern geometry and sizing. Excellent suspension components and tyres. Recessed cabling looks sleek but without the hassle of proper internal routing.
Rides like a shorter-travel bike.
Apr 2021 · NS Bikes
We selfishly made the Define 170 for the riding we most enjoy. It is perfect for big jumps and severe terrain, and it is happy on the uphills, too. It is the most aggressive bike in the Define range, but one that is still fun to ride everywhere. Enduro, freeride, bike park ripper, call it what you like – at NS, a company of riders, we have fallen in love with this beast.
| Frame | NS Define AL w/ 130mm travel, AL6061-T6 + AL6066-T6, custom hydroformed tubes, BB Standard: BSA, 73mm, Threaded |
|---|---|
| Fork | Fox Performance 34 Float Grip, 140mm travel, 3pos-Adj w/ Open Mode Adj, 15x110mm Boost, 1.5 tapered steerer tube, 44mm offset Travel: 140mm Spring Type: Air |
| Shock | Fox Performance Float DPS 3pos-Adj Evol LV Trunnion 185x55 Travel: 130mm |
| Bottom Bracket | SRAM DUB BSA 73mm |
| Headset | integrated tapered IS42/IS52, sealed bearings |
| Stem | NS Quantum Lite 35 , 45mm |
| Handlebar | NS Bar 35, 780mm, 20mm rise |
| Saddle | WTB Volt Medium Cromoly |
| Seatpost | Race Face Aeffect R S-125, M-150, L-170mm, 31,6mm Type: Dropper |
| Pedals | / |
| Grips | NS Hold Fast |
| Rear Derailleur | SRAM GX Eagle type 3 12spd |
|---|---|
| Crank | Truvativ Descendant 6K DUB 170mm 32t |
| Shifters | SRAM NX EAGLE, 12spd |
| Cassette | SRAM PG-1210,12spd 11-50t |
| Chain | SRAM, 12 spd |
| Chain Guide | / |
| Brakes | Front: SRAM G2 R 4 piston, 200mm, Rear: SRAM G2 R 4 piston, 180mm Type: SRAM G2 R Hydraulic Disc |
| Rims | Octane One Solar 29”, 32h, tubeless compatible |
|---|---|
| Spokes | Spokes w/14mm nipples |
| Front Hub | NS Rotary 15 Boost 110x15 disc (sealed bearings) |
| Rear Hub | NS Rotary Cassette 148x12mm Boost (sealed bearings) |
| Tires | Maxxis Rekon EXO TR 29x2.4" WT |
