Today’s Deals2022 NS

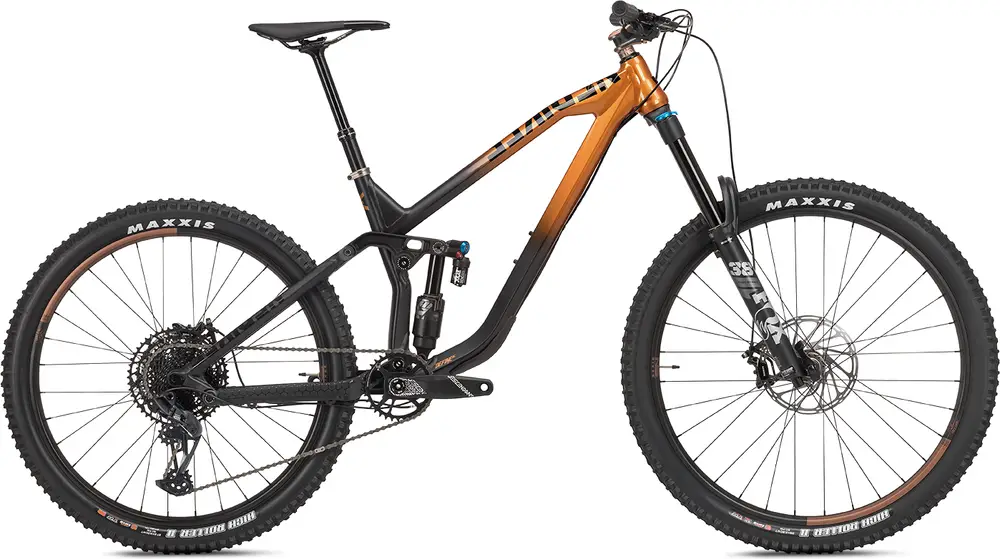

DEFINE AL 170 1
A 29″ / 27.5″ aluminum frame full suspension enduro bike with high-end components.
Compare the full range
Manufacturer Price
€5,399($6,282)| Weight | 34.2 lbs |
|---|---|
| Frame | Aluminum |
| Suspension | Full, 170 / 180mm |
| Fork | Fox Performance Float 38 |
| Shock | Fox Float X2 Performance |
| Wheels | 29″ / 27.5″ Aluminum |
| Drivetrain | 1 × 12 |
| Groupset | GX Eagle, NX Eagle |
| Brakes | SRAM Guide RE Hydraulic Disc |
| Seatpost | Dropper |
5'2" – 5'7"
5'6" – 5'11"
5'9" – 6'2"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Aug 2021 · Paul Burwell
NS Bikes Define AL 170 is a big-hitting aluminium enduro bike with 180mm front and 170mm rear travelMullet wheels mix a 29in front and 27.5in rear.
Modern geometry and sizing. Excellent suspension components and tyres. Recessed cabling looks sleek but without the hassle of proper internal routing.
Rides like a shorter-travel bike.
Apr 2021 · NS Bikes
We selfishly made the Define 170 for the riding we most enjoy. It is perfect for big jumps and severe terrain, and it is happy on the uphills, too. It is the most aggressive bike in the Define range, but one that is still fun to ride everywhere. Enduro, freeride, bike park ripper, call it what you like – at NS, a company of riders, we have fallen in love with this beast.
Sep 2020 · September 2, 2020
To begin with, was there ever really any doubt from the brand who originally put themselves on the map for creating amazing dirt jump hardtails that their latest enduro rig wasn’t going to be one of the most playful bikes of 2020? That’s pretty much it in a ‘nutshell’ really! NS’s range of longer travel bikes haven’t been available over here in Oz for very long now, but they have been knocking out awesome bikes based off of their DJ/freeride roots […]
Jul 2020 · Cory Benson
NS Bikes redefines their adaptable all-mountain trail to enduro 29er mountain bike platform with a new Define AL, with more travel & Mullet wheel options...
May 2020 · Robin Weaver
The Define 150 AL is packed full of promise and has great geometry. It’s not quite as comfy as some and the spec does fall a little short in places
Great geometry
Confident feel to the rear suspension
Functional spec that’ll do the job
Niggling issues with some elements of the spec
Not the comfiest ride on really rough descents
| Frame | NS Define AL w/ 170mm travel, AL6061-T6 + AL6066-T6, custom hydroformed tubes, semi internal cable routing BB Standard: BSA, 73mm, Threaded |
|---|---|
| Fork | Fox Float 38 Performance Grip, 180mm travel, 3 Pos Micro Adj Lever, 110x15mm Boost, 1.5T, 44mm offset Travel: 180mm Spring Type: Air |
| Shock | Fox Float X2 Performance w/ LSC, LSR Trunnion 225x70mm Travel: 170mm |
| Bottom Bracket | SRAM DUB BSA 73mm |
| Headset | GW integrated tapered IS42/IS52, sealed bearings |
| Stem | NS Quantum Lite 35 , 45mm |
| Handlebar | NS Bar 35, 800mm, 20mm rise |
| Saddle | WTB Volt Medium Cromoly |
| Seatpost | Race Face Aeffect R S-125, M-150, L-170mm, 31,6mm Type: Dropper |
| Pedals | / |
| Grips | NS Hold Fast |
| Rear Derailleur | SRAM GX Eagle type 3 12spd |
|---|---|
| Crank | Truvativ Descendant 6k DUB 170mm 34t |
| Shifters | SRAM NX EAGLE, 12spd |
| Cassette | SRAM PG-1210,12spd 11-50t |
| Chain | SRAM, 12 spd |
| Chain Guide | / |
| Brakes | Front: SRAM Guide RE, 200mm, Rear: SRAM Guide RE, 200mm Type: SRAM Guide RE Hydraulic Disc |
| Rims | Octane One Solar 29” front, Octane One Solar 27.5” rear, 32h, tubeless ready |
|---|---|
| Spokes | Spokes w/14mm nipples |
| Front Hub | NS Rotary 15 Boost 110x15mm disc (sealed bearings) |
| Rear Hub | NS Rotary Cassette 148x12mm Boost (sealed bearings) |
| Tires | Maxxis High Roller II 29x2.5" WT TR EXO / Maxxis High Roller II 27.5x2.4" TR DH |
