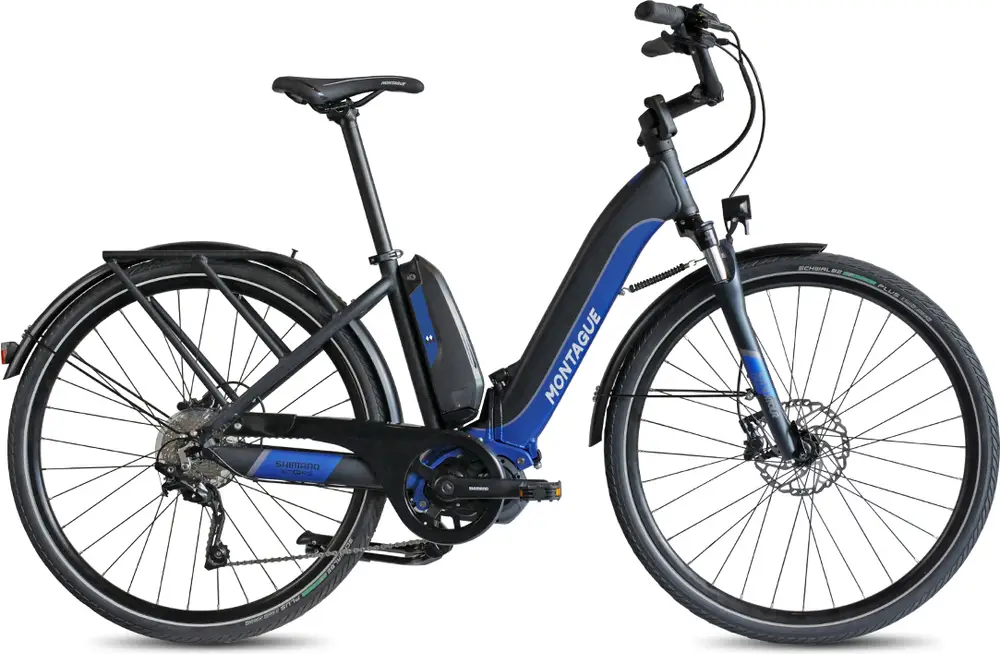

2021 Montague

M-E1

A 700c aluminum frame folding e-bike with modest components and shimano deore hydraulic disc brakes.

Manufacturer Price

$3,599
Weight55.2 lbs
FrameAluminum
SuspensionHardtail, 63mm
ForkSteel
Wheels700c Aluminum
Drivetrain1 × 10
GroupsetDeore
MotorShimano 250W 60Nm mid-drive
BatteryShimano 417Wh
BrakesShimano Deore Hydraulic Disc
Learn about Montague
Where to Buy
Similar Bikes
Top Comparison
Insights
Gearing

A bike with lower gearing will be easier to ride up steep hills, while a higher top end means it will pedal faster down hills.

Lowest gear

(climbing)

35 mph

M-E1

22 mph

Similar Bikes

Highest gear

(descending)

Sizing
17"

3'11" +

🐐 Estimated

Rider Fit Notes

None yet.

Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.

Specs
Build
Frame

Custom Draw 6061 Hydroformed Aluminum Alloy

Fork

SR Suntour NEX Spring Suspension, 63mm Travel, Hydraulic Lockout, Preload Adjust (Under Cap on Left Crown), 28mm Steel Stanchions, 100mm Hub Spacing, 9mm Axle with Quick Release Skewer

Travel63mm

Spring TypeCoil

Headset

Integrated, Sealed Cartridge, Straight 1-1/8"

Stem

Patent Pending Folding Design, Aluminum Alloy, 120mm Length, 30mm Base Spacing, 31.8mm Clamp Diameter

Handlebar

Aluminum Alloy, High-Rise, 600mm Length, ~150mm Rise, ~80mm Backsweep

Saddle

Montague Branded Velo, Active

Seatpost

Aluminum Alloy, Two-Bolt Clamp

TypeRigid

Pedals

VP, Plastic Folding (Pull Inner Loop to Unlock)

Grips

Ergonomic, Rubber, Non-Locking

Groupset
Crank

Shimano FC-E6100, Aluminum Alloy, 170mm Length, SM-CRE61 44 Tooth Steel Chainring with Plastic Chain Cover, Shimano Hollowtech II Bottom Bracket, Hollow Spindle

Shifters

Shimano Deore Triggers on Right (Two-Way High Lever, Three-Shift Low Lever)

Cassette

10 Speed 1x10 Shimano Deore Long Cage Derailleur, 11-32 Tooth Cassette

Brakes

Shimano Deore Hydraulic Disc with 180mm Front Rotor 160mm Rear Rotor, Dual Piston Calipers, Shimano Deore Two-Finger Levers with Adjustable Reach

TypeShimano Deore Hydraulic Disc

Wheels
Rims

Aluminum Alloy, Double Wall, 100mm Outer Width, 80mm Depth, 32 Hole

Spokes

Stainless Steel, 14 Gauge Front 13 Gauge Rear, Black with Nipples

Tires

Schwalbe 50km Energizer Plus, 8" x 1.75" 700c x 47mm (47-622)

Electric Components
Motor

Weight: 6.35 lbs (2.88 kg), Brand: Shimano E6100, Type: Mid-Mounted Geared Motor, Nominal Output: 250 watts, Peak Output: 500 watts, Torque: 60 Newton meters

Battery

Weight: 5.6 lbs (2.54 kg), Brand: Shimano STePS BT-E8014, 18650 Cells, Voltage: 36 volts, Amp Hours: 11.6 ah, Watt Hours: 417.6 wh, Chemistry: Lithium-ion

Display

Shimano SC-E7000, Fixed Backlit 1.5" Black and White, Buttons: Circle Menu Button, Settings: Hold Circle Button on Base
