Today’s Deals2026 Mondraker

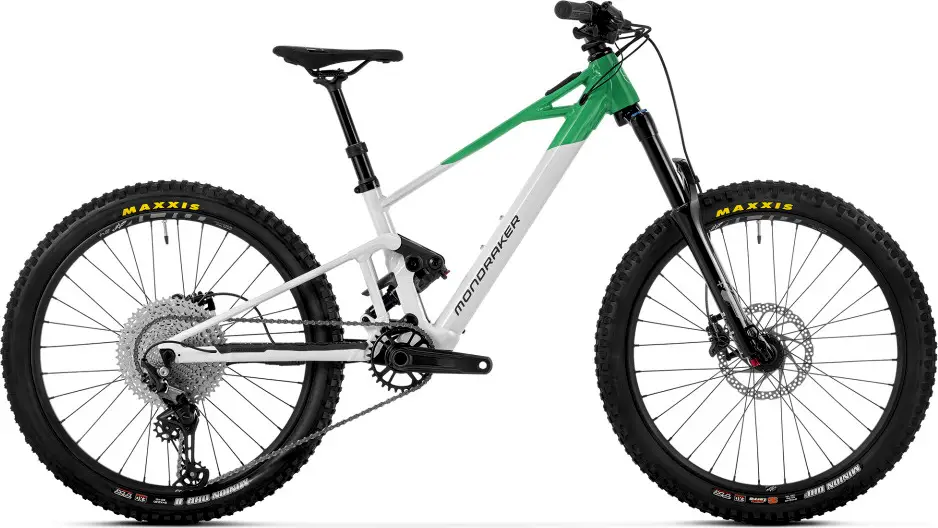

F-PLAY 24
A 24″ aluminum frame general youth e-bike with upper mid-range components and shimano hydraulic disc brakes.
Compare the full range
| Weight | 37.9 lbs |
|---|---|
| Frame | Aluminum |
| Suspension | Full, 120 / 120mm |
| Fork | Aluminum |
| Shock | X-Fusion |
| Wheels | 24″ Aluminum |
| Drivetrain | 1 × 12 |
| Groupset | Deore |
| Motor | MAHLE hub-drive |
| Battery | MAHLE 250Wh |
| Brakes | Shimano Hydraulic Disc |
| Seatpost | Dropper |
| Frame | F-Play 24 6061 Alloy Stealth evo, hydroformed tubing, Zero Suspension System, 120mm travel, one piece bolt-on upper link, integrated internal non-removable battery, Tapered head tube, HHG internal cable routing, BSA bottom bracket, 1x drivetrain compatible BB Standard: BSA, Threaded |
|---|---|
| Fork | X-Fusion Slant RC 26, 120mm, air spring, tapered steerer tube, 15x100mm axle, 34mm aluminum stanchions, 41mm offset. Settings: lockout, rebound, air preload Travel: 120mm Spring Type: Air |
| Shock | X-Fusion 02PRO R, 165x42.5mm. Settings: low-speed rebound, air preload. Trunnion top, 50x8mm bottom bushings Travel: 120mm |
| Bottom Bracket | Prowheel PW-MBB73 73mm |
| Headset | Onoff ZS44/ZS56, 1-1/8", 1.5" head tube, ACB sealed bearings, top 42x30x7x45ºx45º, bottom 52x40x8x45ºx45º |
| Stem | Onoff S3 30mm 0º, 6061 forged alloy, 31.8mm barbore |
| Handlebar | MDK XC 1.0, 6061 alloy, rise: 25mm, width: 680mm, 9º backsweep, 5º upsweep, 31.8mm barbore |
| Saddle | SDG Fly JR |
| Seatpost | X-Fusion Manic LC internal, diameter 31.6mm, 1X Remote lever, 100mm Type: Dropper |
| Pedals | SDG Slater JR |
| Grips | Onoff Beehive, 1lock-on, 135mm |
| Rear Derailleur | Shimano Deore M6100, SGS, Shadow+, 12s |
|---|---|
| Crank | Prowheel DMJ-CR094S-TT, Direct mount chainring, 150mm, Rings: 30T, steel |
| Shifters | Shimano Deore M6100, Rapid Fire Plus, 12s |
| Chain | Shimano Deore M6100, 12s, Quick-link |
| Brakes | Front: Shimano MT501, RT56 180mm IS 6 bolts rotor, resin pads, Rear: Shimano MT501, RT56 180mm IS 6 bolts rotor, resin pads Type: Shimano Hydraulic Disc |
| Brake Levers | Shimano MT501, servo wave, alloy lever |
| Rims | MDK-HP1 24 TLR, 25mm internal width, tubeless ready, 32 spokes |
|---|---|
| Spokes | CN round stainless steel |
| Front Hub | DA210FS02, 15x100mm, cup & cone ball bearings, IS 6 bolts |
| Rear Hub | Mahle-Ebikemotion X-30, HG freehub |
| Tires | Front: Maxxis Minion DHF 24x2.4, Tubeless ready, 3C MAXX TERRA, EXO Protection, 60TPI, folding bead, Rear: Maxxis Minion DHR II 24x2.3, Tubeless ready, EXO Protection, 60TPI, folding bead |
| Motor | Mahle X-30, Drive Unit |
|---|---|
| Battery | Mahle IX250Wh |
| Display | iWoc ONE Head Unit |
First added September 6
Last updated June 7
