Today’s Deals2025 Mondraker

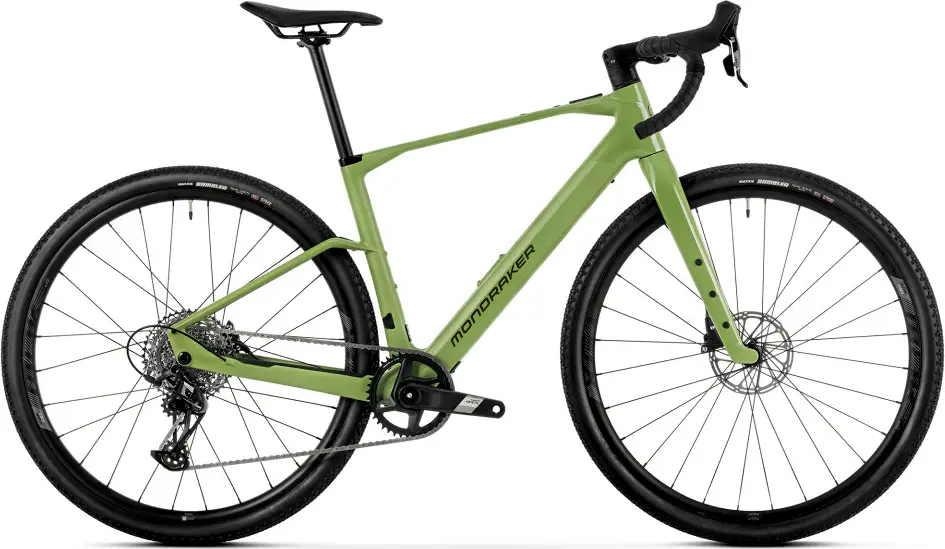

DUSTY S
A carbon frame gravel e-bike with upper mid-range components and sram apex hydraulic disc brakes.
Compare the full range
| Weight | 29.5 lbs |
|---|---|
| Frame | Carbon |
| Suspension | Rigid |
| Fork | Carbon |
| Wheels | 700c Aluminum |
| Drivetrain | 1 × 12 |
| Groupset | GX Eagle, Apex |
| Motor | MAHLE 55Nm hub-drive |
| Battery | MAHLE 350Wh |
| Brakes | SRAM Apex Hydraulic Disc |
5'2" – 5'8"
5'6" – 5'11"
5'10" – 6'3"
6'1" – 6'7"
🐐 Estimated
None yet.
Do you have this bike? Help other riders make a decision about which size will work for them by sharing your own size and fit notes.
Jan 2024 · Martin Staffa
Make adventure great again? The off-road pros at Mondraker are targeting tech-savvy adventurers with the Dusty XR. Can their concept deliver?
Excellent off-road performance
Spacey look that stands out from the crowd
Comfortable thanks to suspension
Exclusive wheelset
Mostly limited to off-road riding
Lacks mounting points for bikepacking bags
Feb 2023 · Jordan Villella
Mondraker decided if it entered the gravel market, it would be on its own terms and with its distinct style.
| Frame | e-Gravel Stealth Air Carbon, pressfit 386 EVO bottom bracket, tapered head tube, HHG internal cable routing, integrated internal non-removable battery, 12x142mm rear axle, 1X or 2X drivetrain design, Flatmount brake compatible, integrated dropout speed sensor. BB Standard: 386EVO, 86mm, Press Fit |
|---|---|
| Fork | Steatlh Air Carbon tapered steerer tube, HHG, fllat mount integrated fork |
| Bottom Bracket | Mahle DUB pressfit, sealed bearings, w/ torque sensor |
| Headset | Onoff IS52/IS52, 1-1/8", 1.5" head tube, sealed bearings, Internal cable routing. |
| Stem | Onoff Semi-Integrated, 31.8mm barbore, rise: -7°, length: S size: 60mm, M size: 70mm, L size: 80mm, XL size: 90mm |
| Handlebar | Onoff S3 GR 16º bar flare. Width sizes S size: 420mm M size: 420mm L size: 440mm XL size: 460mm |
| Saddle | Fizik Terra Argo X7 150mm |
| Seatpost | Onoff S3 0-R, diameter 27.2mm, length 400mm Type: Rigid |
| Grips | Onoff HEX Bartape |
| Rear Derailleur | SRAM GX Eagle,12s |
|---|---|
| Crank | SRAM Apex 1 Wide, S size: 165mm M size: 170mm L size: 172,5mm XL size: 175mm, CL 47,5, Rings: SRAM X-Sync Eagle 40T direct mount, alloy, narrow-wide, |
| Shifters | SRAM Apex D1 12s, X-Actuation 1:1, single click |
| Chain | SRAM SX Eagle, 12s, Powerlock |
| Brakes | Front: SRAM Apex 1, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad, Rear: SRAM Apex 1, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad Type: SRAM Apex Hydraulic Disc |
| Brake Levers | SRAM Apex, contact point adjustment, tooled reach adjust, aluminum levers |
| Rims | MDK-XG1, 25mm internal width, tubeless ready, 28 spokes |
|---|---|
| Spokes | CN round stainless steel |
| Front Hub | Novatec D041, Boost 12x100mm, sealed bearings, IS 6 bolts |
| Rear Hub | Mahle X20 Drive Unit, MS freehub |
| Tires | Front: Maxxis Rambler 700x45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead, Rear: Maxxis Rambler 700x45, tubeless ready, dual compound EXO protection, 120 TPI, folding bead |
| Motor | Mahle X20 Drive Unit |
|---|---|
| Battery | Mahle X20 IX350Wh |
| Display | Pulsar One Wireless |
